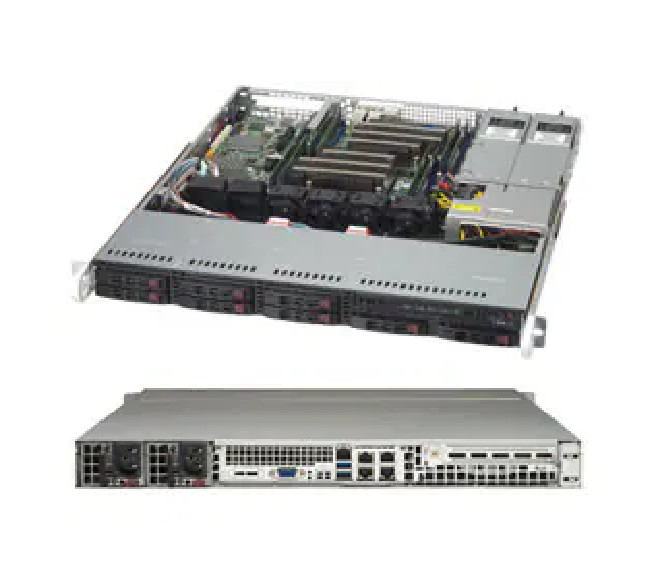

Key Features - 1U Chassis, support motherboard size: ATX 12" x 10"
- 8 x 2.5" hot-swap SAS/SATA drive bay
- 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
- 1U 600W Redundant Single Output Power Supply w/PMBus, short depth, W54.5xL220xH40
- 1 full height expansion slot(s)
- 4 x 40x28mm PWM fan(s)
Optional 2 x fans for AOC cooling
Standard Parts List Part Number Qty Description HD Backplane BPN-SAS3-113A-N2 1 1U Backplane 8x2.5" SAS3 HDD/SSD and 2x2.5" NVMe/SATA Cable(s) CBL-0335L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF Cable(s) CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH Part(s) MCP-120-00058-0N 1 Blank FH L-bracket (2x2 square hole) Part(s) MCP-120-00078-0N 1 Optional shorter 1U riser card bracket for X9DRL-7F/EF and beyond Part(s) MCP-230-11301-0N 1 Top cover for SC113M, Redundant PWS Part(s) MCP-270-11301-0N 1 Chassis base for SC113M, Redundant PWS Part(s) MCP-290-00173-0N 1 SC119 Intrusion assembly upgraded version (with 3rd mounting screw hole) (cable length: 47cm) Part(s) MCP-290-81501-0V 1 Sliver chassis handle for CD-ROM & Accessory MCP-290-00036-0B 1 Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836 Fan(s) FAN-0154L4 4 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH Front Panel FPB-FP112 1 Front control board for SC113,113M (U/C share Cooling Fan & Accessory MCP-320-00031-0B 1 Fan tray for six 40x28 fans(SC813M/113M) Drive Tray(s) MCP-220-00047-0B 8 Black gen 3rd hot-swap 2.5inch HDD tray Power Distributor PDB-PT813M-2424 1 Power Distributor With 24pin for SC813M Part(s) MCP-340-00001-01 2 Dummy fan 40x28mm Part(s) MCP-290-00037-0N 1 SC113 Control panel module (w/o DVD) Part(s) MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF Power Supply & Accessory MCP-250-00016-0V 1 Redundant Silver plastic PDB cover for SC813M,113M Power Supply & Accessory PWS-606P-1R 2 1U 600W Redundant Short Depth High Efficiency Power Supply Mounting Rail(s) MCP-290-00016-0N 1 1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N Mounting Rail(s) MCP-290-00102-0N 1 Outer rail, quick-release type, 25.6 Mounting Rail(s) MCP-290-00107-0N 1 Inner rail, front, short, screw type Mounting Rail(s) MCP-290-00110-0N 1 Inner rail, extension (quick) for 1U 17.2 Rear Window MCP-240-00086-0N 1 STD rear window for SC113 redundant PWS  |
|
