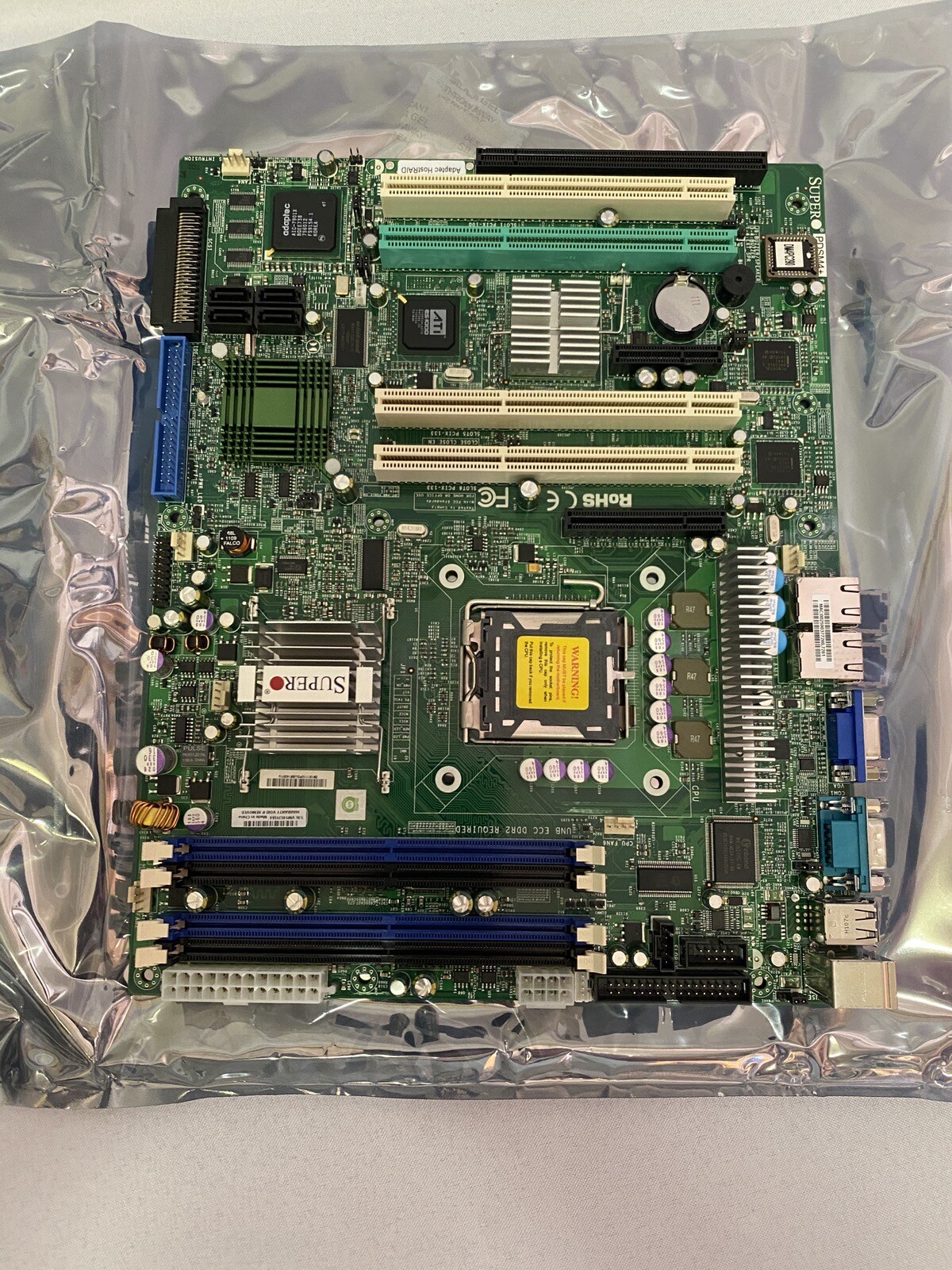

SuperMicro PDSM4+ MotherboardLGA775PCI-E PCI-X ATX withDynatronCPU Cooler, NEW
Form Factor: ATX
Features
1. Supports Intel® Xeon® 3200 / 3000 Series,Core™ 2 Quad / Duo / Extreme Series,Pentium® D, Pentium Extreme Edition,Pentium 4 & Celeron D in LGA775Package (FSB 1066/800/533)2. Intel® 3010 (Mukilteo-2P) Chipset3. Up to 8GB unbuffered ECC / non-ECCDDR2 667/533 SDRAM4. Adaptec AIC-7901 Single ChannelUltra320 SCSI (ZCR-Support)5. Intel® 82573V + Intel® 82573LPCI-e Gigabit Controllers (2x LAN Ports)6. Built-in SATA Controller4x SATA (3Gbps) Drive Support7. 1 (x4) & 1 (x8) PCI-Express ,2x 64-bit 133MHz PCI-X,2x 64-bit 100MHz PCI-X8. On board ATI ES1000 16MB Graphics9. IPMI 2.0 (Virtual Media Over LAN orOptional KVM Over LAN)
Processor/Cache
CPU -Single LGA775 ZIF SocketSupports a Quad-Core Intel® Xeon® 3200 series processorSupports a Dual-Core Intel® Xeon® 3000 series processorSupports a Quad-Core Intel® Core™2 Extreme series processorSupports an Intel® Core™2 Quad series processorSupports an Intel® Core™2 Duo series processorSupports an Intel® Pentium® processor E2000 seriesSupports a Dual-Core Intel® Pentium® D processorSupports an Intel® Pentium® Extreme Edition processorSupports an Intel® Pentium® 4 processorSupports an Intel® Celeron® processor E1000 seriesSupports an Intel® Celeron® processor 400 series
System Memory
Memory Capacity: Four 240-pin DIMM sockets,Supports up to 8 GB of memory (Single / Dual Channel)Memory Type:DDR2 667/533MHz unbuffered, ECC / non-ECC SDRAM, 240-pin gold-plated DIMMsDIMM Sizes:256 MB, 512 MB, 1 GB, 2GB
On-Board Devices
Chipset:Intel 3010 (Mukilteo-2P) chipset,ICH7R + PXH + Intel® 82573V + Intel® 82573LSerial ATA:Intel® ICH7R SATA2 (3 Gbps) controller built-inIntel:RAID 0, 1, 5, 10 support (Windows Only)Adaptec:RAID 0 (Two, three, four drives only),RAID 1 (Two hard drives only)SCSI:Adaptec AIC-7901 Single-channel U320 SCSI Controller,HostRAID 0, 1, 10 SupportedIPMI:Support for Intelligent Platform Management Interface v.2.0,IPMI 2.0 with virtual media over LAN & optional KVM-over-LAN support
Supermicro Intelligement Management(Optional: AOC-SIM1U+),NOTE: Must use dedicated LAN for IPMI functionNetwork Controllers:2x Single-port Gigabit PCI-Express Ethernet ControllersIntel® 82573VSupports 10BASE-T, 100BASE-T, 1000BASE-T, RJ45 outputVGA:On-board ATI ES1000 (16MB) graphicsSuper I/O:Winbond W83627HG chip
Input / Output
Serial ATA:Four Serial ATA ports (3 Gbps performance),Four SATA hard drives supportedIDE:One EIDE channel supports up to two UDMA IDE devices,Supports UDMA Mode 5, PIO Mode 4, and ATA/100Floppy:1 Floppy controller; 1.44 MBLAN:2x RJ45 LAN portsUSB:Up to 4x USB 2.0 / 1.1 compliant ports,2 rear ports,1 internal header for 2 USB 2.0/1.1 portsVGA:1x VGA portKeyboard / Mouse:PS/2 keyboard and mouse portsSerial Ports:1x Fast UART 16550 serial port,1x internal header
Expansion Slots
PCI-Express: 1 (x8) PCI-e slot,1 (x4) PCI-e slotPCI-X :2x 64-bit 133MHz PCI-X (3.3V) slots,2x 64-bit 100MHz PCI-X (3.3V) slots
Condition:NEW
Dimensions: 12" x 9.6", (30.5cm x 24.4 cm)
Includes: CPU Cooler (Dynatron P785)
Several in stock
