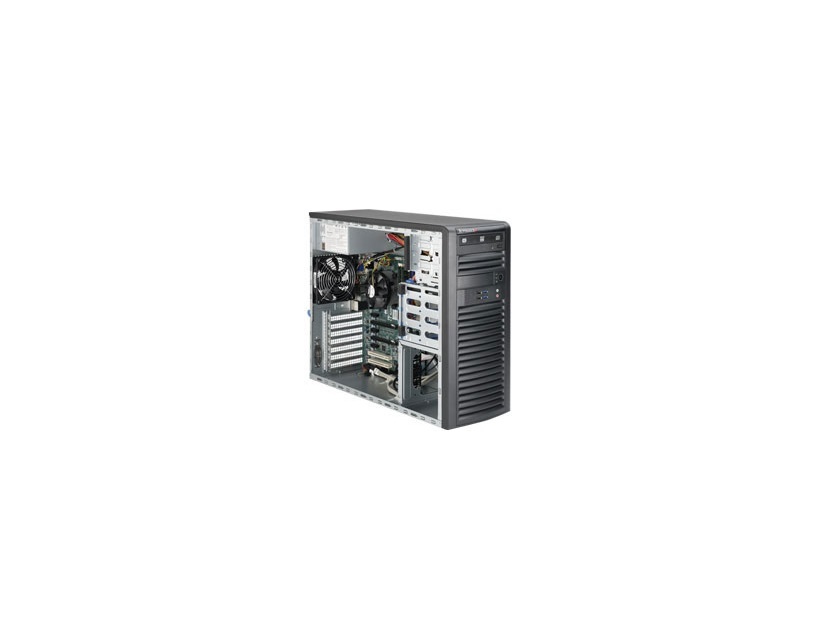

Integrated Board Super X11SAE
Views: | Angled View | Front View | Rear View |
Key Features
• High Performance, Versatile
Features & I/O Access
1. Single socket H4 (LGA 1151) supports
Intel® Xeon® processor E3-1200 v6/v5,
Intel® 7th/6th Gen. Core™ i7/i5/i3 series 2. Intel® C236 chipset 3. Up to 64GB Unbuffered ECC/non-ECC
UDIMM DDR4 2400MHz; 4 DIMM slots 4. 2 PCI-E 3.0 x16 (x16/NA or x8/x8),
2 PCI-E 3.0 x1 (in x4 slot),
2 PCI 32-bit slots 5. 1 DVI-D, 1 HDMI, 1 display port,
triple display capable,
ALC1150 HD Audio, 2 COM, 2 GbE
LAN, 2 USB 3.0 + 2 USB 2.0 (front) 6. 4 internal 3.5" HDD bays
90° rotatable HDD cage design
4 internal 2.5" SATA HDD (opt.) 7. 500W High Efficiency Power Supply
Drivers & Utilities BIOS IPMI Tested Memory
Tested M.2 List Manuals OS Certification Matrix Drive Options
Product SKUs SuperWorkstation

• SYS-5039A-iL (Black)

Motherboard
Super X11SAE Processor/Cache CPU

• Single Socket H4 (LGA 1151) supports:
• Intel® Xeon® processor E3-1200 v6/v5,
  Intel® 7th/6th Gen Core™ i7/i5/i3,
  Intel® Pentium®,
  Intel® Celeron® processors
• CPU TDP up to 95W

Note BIOS version 2.0 or above is required to support Intel® Xeon® Processor E3-1200 v6 series or 7th Generation Intel® Core™ Processors System Memory Memory Capacity

• 4x 288-pin DDR4 DIMM slots
• Up to 64GB DDR4 ECC UDIMM

Memory Type

• 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs

DIMM Sizes

• 16GB, 8GB, 4GB

Memory Voltage

• 1.2 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices Chipset

• Intel® C236 chipset

SATA

• SATA3 (6Gbps) via C236 controller
• RAID 0, 1, 5, 10 support

Network Controllers

• Intel I210-AT + Intel PHY i219LM Ethernet Controllers
• Virtual Machine Device Queues reduce I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Graphics

• 1 HDMI, 1 DVI-D, 1 Display port (Triple Display)

Audio

• ALC 888S HD Audio

Input / Output SATA

• 8 SATA3 (6Gbps) ports from Intel® C236; RAID 0, 1, 5, 10

LAN

• 2 RJ45 Gigabit Ethernet LAN ports

USB

• 6 USB 3.0 ports (2 rear + 4 via headers)
• 8 USB 2.0 ports (2 rear + 6 via headers)
• 2 USB 3.1 (rear)

Audio

• 7.1 HD Jacks

Display

• 1 HDMI, 1 DVI-D, 1 Display port (Triple Display); an Intel HD Graphics Integrated CPU is required for motherboard onboard video function

Serial Port / Header

• 2 COM ports (headers)

Expansion Slots PCI-Express

• 2 PCI-E 3.0 x16 slots -
  Function as: x16/NA or x8/x8
• 2 PCI-E 3.0 x1 (in x4) slots

PCI

• 2 PCI 32-bit slots

System BIOS BIOS Type

• 128Mb SPI Flash EEPROM with AMI® BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• DMI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• UEFI

Chassis Form Factor

• Mid-Tower

Model

• CSE-732D4-500B

Dimensions and Weight Height

• 16.7" (424mm)

Width

• 7.6" (193mm)

Depth

• 20.68" (525.3mm)

Gross Weight

• 40 lbs (18.1 kg)

Available Colors

• Black

Front Panel Buttons

• Power On/Off button

LEDs

• Power LED
• Hard drive activity LED
• Network activity LED
• System Information LED

Ports

• 2 front USB 3.0 Ports
• 2 front USB 2.0 Ports
• 2 front HD/AC97 Audio Ports

Drive Bays Internal

• 4 Internal 3.5" fixed drive bays

Peripheral

• 2x 5.25" peripheral device bays

System Cooling Fans

• 1x 12cm rear exhaust fan with Optimal Fan Speed Control
• Optimized cooling technology for Whisper-Quiet Operation (21dB)

Power Supply 500W AC power supply w/ PFC AC Voltage

• 100 - 240V, 50-60Hz, 7-3.5 Amp

+5V

• 20 Amp

+5V standby

• 3 Amp

+12V1

• 17 Amp

+12V2

• 17 Amp

+12V3

• 17 Amp

+12V4

• 18 Amp

-12V

• 0.5 Amp

+3.3V

• 15 Amp

Certification
Bronze Certified
[ Test Report ] PC Health Monitoring CPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
• 6-Phase-switching voltage regulator

FAN

• Low noise fan speed control

Temperature

• Monitoring for CPU and chassis environment
• Thermal Control for 8x fan connectors
• PECI

Operating Environment / Compliance RoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

See Parts List Parts List - (Items Included)
Part Number
Qty
Description
Motherboard / Chassis MBD-X11SAE
CSE-732D4-500B 1
1 Super X11SAE Motherboard
3U Mid-Tower Chassis Cable 1 CBL-0044L 4 SATA CABLE 57.5CM FLAT S-S PBF. 26AWG flat Manual MNL-1837-QRG 1 SYS-5039A-IL (X11SAE, CSE-732D4-500B), QRG Parts MCP-260-00063-1N 1 STD size I/O shield for X10SLQ-L with EMI Gasket,RoHS/REACH,PBF Power Supply PWS-502-PQ 1 PS2 ATX 500W MULTI-OUTPUT HI-EFF PWS
