SpecificationsProduct SKUsSYS-E102-9AP-L
- SuperServer E102-9AP-L (Black)
Motherboard
Super A2SAN-LProcessor/CacheCPU
- Intel® Atom® Processor E3930
- Single Socket FCBGA 1296 supported
- CPU TDP support 65W
Cores / Cache
System MemoryMemory Capacity
- Up to 8GB Unbuffered non-ECC SO-DIMM, DDR3L-1866MHz, in 1 DIMM slot
Memory Type
- DDR3L up to 1866MHz (8GB)
DIMM Sizes
Memory Voltage
On-Board DevicesChipset
Network Controllers
- Dual LAN with Intel® I210IT
Audio
Video
Input / OutputUSB
Video Output
COM Port
- 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control (optional)
Audio
- 1 HD Audio header (Mic-in/Line-Out)
ChassisForm Factor
Model

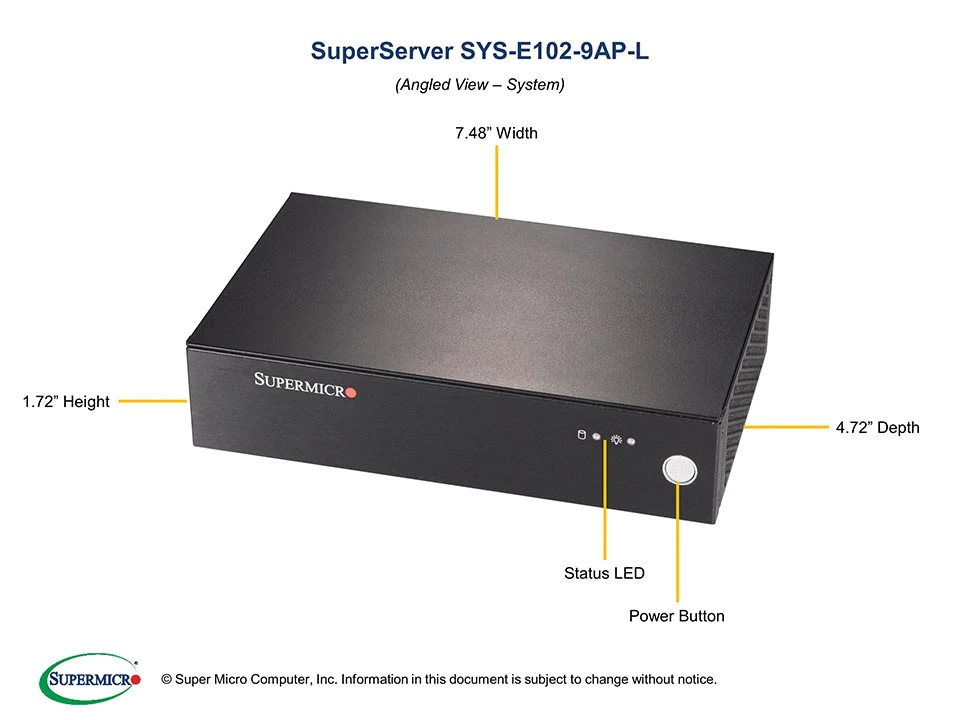

- 7.48" (190mm) / 11.81" (300mm) - pkg.
Height
- 1.72" (44mm) / 5.12" (130mm) - pkg.
Depth
- 4.72" (120mm) / 11" (279mm) - pkg.
Weight
- Net Weight: 2.65 lbs (1.2 kg)
Available Colors
Front PanelButtons
LEDs
- Power LED and Hard drive activity LED
Expansion SlotsPCI-Express
- 1 Full size Mini-PCIe (1 USB 2.0, 1 PCIe Gen2)
M.2
- Interface: SATA, PCIe 2.0 x1 and USB 2.0
- Form Factor: B-Key 2280
Drive BaysInternal
- 1 M.2 2280 B-Key for SATA or PCIe SSD (2242 can be supported with bracket)
- 1 SATA 3.0 for 2.5" 7mm SATA HDD/SSD
System CoolingFans
Heat Sink
Power SupplyLockable 12V DC 40W power adapterSystem BIOSBIOS Type
ManagementSoftware
Power Configurations
- +12V DC Power Input
- ACPI Power Management
- Control of power-on for recovery from AC power loss
- Force Power On by Jumper
- CPU thermal trip support for processor protection
Operating Environment / ComplianceRoHS
Environmental Spec.
- Operating Temperature:
0°C to 40°C (32°F to 104°F) - Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F) - Operating Relative Humidity:
8% to 90% (non-condensing) - Non-operating Relative Humidity:
5% to 95% (non-condensing)
Parts ListParts List - (Items Included)Part NumberQtyDescriptionMotherboard / ChassisMBD-A2SAN-L
CSE-E1021
1Super A2SAN-L Motherboard
Chassis for Embedded 3.5" SBCPower AdapterMCP-250-10124-0N1FSP 40W 12V 3.33A, AC to DC lockable power adapter,HF,RoHSOptional Parts ListPart 2x DB9M TO 2X10F/P2.00,INT TO EXT,FLAT, 12CM, 28AWGCableCBL-PWEX-0982-PWR EXT,1X4F/P2.50 TO SATA POWER, 25CM, Latch,RoHSChassis partsMCP-160-10202-0B-CSE-E102 Optional FP mylar with 4x Comport opening onlyChassis partsMCP-160-10203-0B-CSE-E102 Optional FP mylar with 4x comport and Audio portChassis partsMCP-160-10204-0B-CSE-E102 Optional FP mylar with Audio port onlyPower AdapterMCP-250-10117-0N-60W DC power adapter with US power cord 18AWG 6ftPower AdapterMCP-250-10124-0N-AC to DC 40W lockable power adapterIO shieldMCP-260-10202-0B-CSE-E102 I/O shield for X11SSNIO shieldMCP-260-10201-0B-CSE-E102 I/O shield for A2SAN and X11SANChassis partsMCP-290-10113-0B-wall mount/VESA mount
