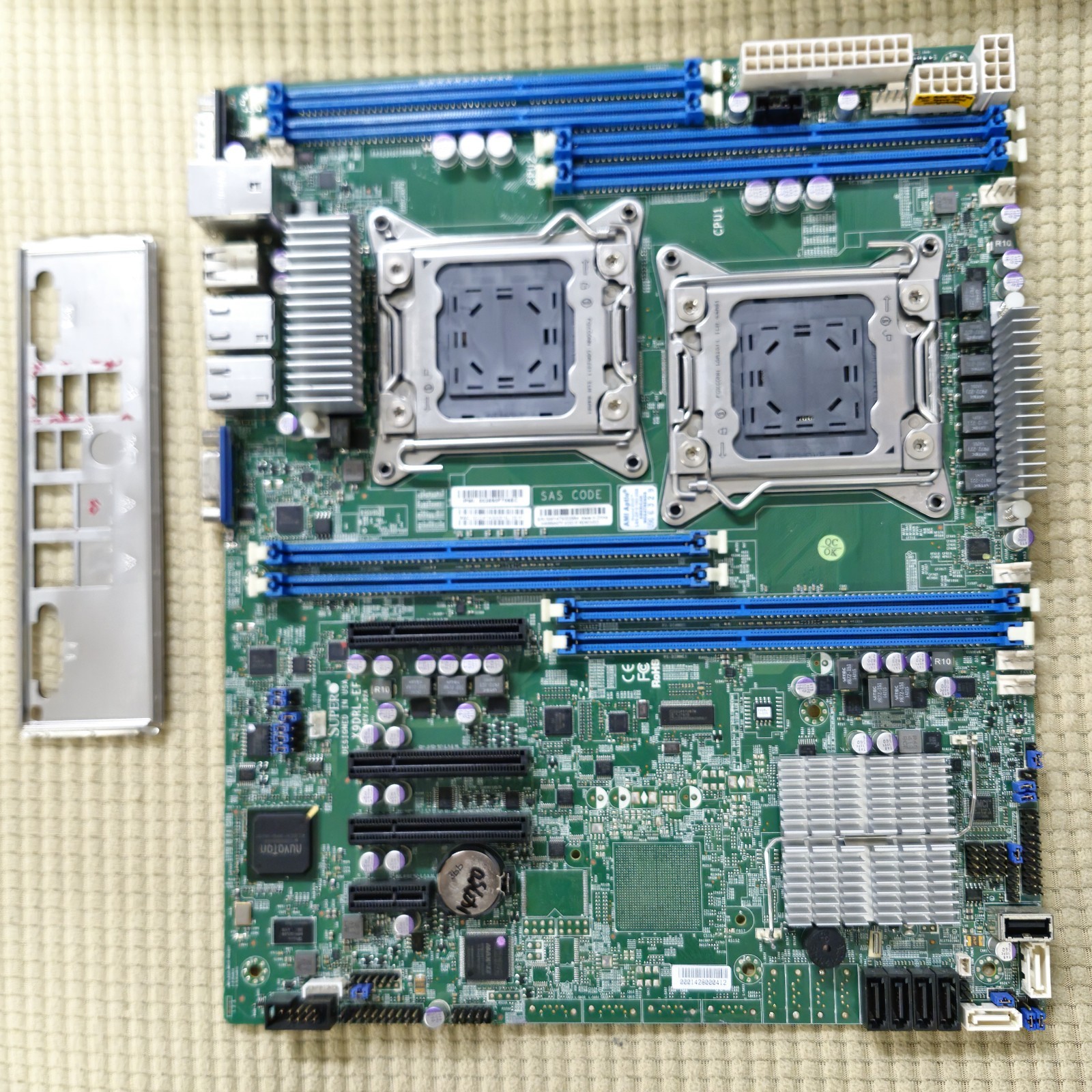

Selling Item:SuperMicro X9DRL-EFItem Condition: Used and Working Verified.

• Clean CPU Socekt and RAM Sockets without any bent/distorted pins.
• No dings, No Scratches and No germs.

Package Content: The Motherboard Only. An IO-Shield Back-plate is included. No Original Box and No Other Accessories.

Technical SpecificationsChipset & CPU Support

• Socket: Dual Socket R (LGA 2011)

• Chipset: Intel C602J

• Processor Support: Intel Xeon processor E5-2600 and E5-2600 v2 families (up to 130W TDP)

• System Bus: QPI up to 8.0 GT/s

Memory Capacity & Architecture

• Slots: 8 x 240-pin DDR3 DIMM slots (4-channel layout per CPU)

• Max Memory Support:

  • Up to 256GB DDR3 ECC LRDIMM

  • Up to 256GB DDR3 ECC RDIMM

  • Up to 64GB DDR3 ECC/Non-ECC UDIMM

• Supported Speeds: 1600 / 1333 / 1066 / 800 MHz

• Voltage Compatibility: 1.5 V, 1.35 V

Expansion Slots

• 3 x PCI Express 3.0 x8 slots (from CPU1)

• 1 x PCI Express 2.0 x4 slot (in an x8 physical slot from PCH)

• 1 x PCI Express 2.0 x1 slot (from PCH)

Storage Interfaces & RAID

• SATA 3.0 (6Gb/s): 2 ports via Intel PCH (RAID 0, 1)

• SATA 2.0 (3Gb/s): 4 ports via Intel PCH (RAID 0, 1, 5, 10)

Networking & Management

• Network Controller: Intel i210 Gigabit Ethernet (Dual GbE LAN ports)

• IPMI Management: Integrated IPMI 2.0 and KVM-over-LAN with a dedicated Realtek RTL8201F PHY LAN port.
