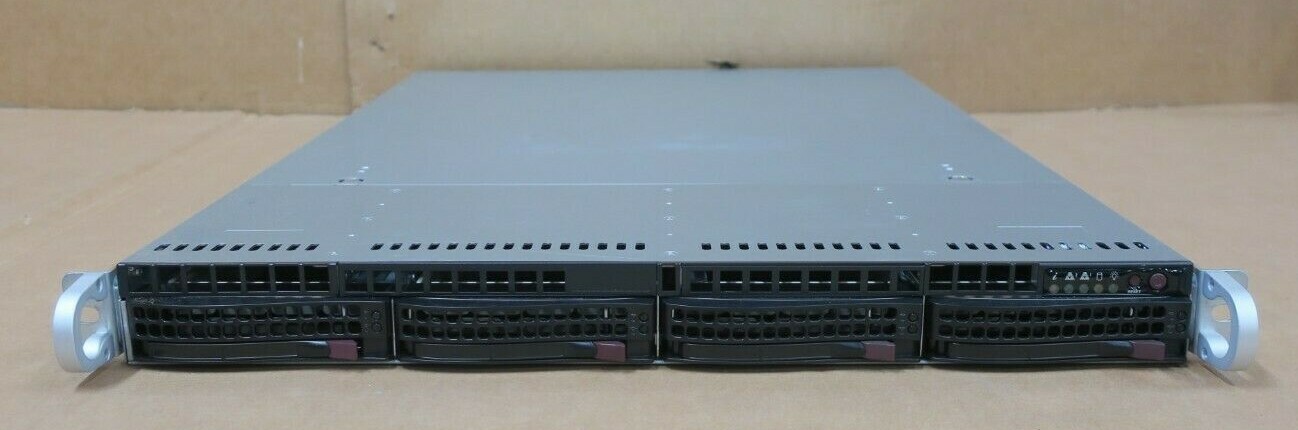

Supermicro 1U CSE-815 X10SLM+-LN4F E3-1270v3 16GB Ram 4x HDD Bay LSI RAID Server
Supermicro Chassis Model: CSE-815Supermicro Motherboard P/N:X10SLM+-LN4F rev 1.01Supermicro Backplane P/N: SAS815TQ
In Good Condition, Full Working OrderTested
Includes:

• 1 x Supermicro SuperChassis CSE-815 4-Bay x Intel Xeon Quad-Core E3-1270v3 3.50GHz Processor
• 2 x 8GB DDR3 PC3-12800E Memory
• 1 x 4-Bay 3.5" SAS Backplane SAS815TQ with 4 x SATA/SAS Hot plug Drives Caddies (No Hard Drives rev 1.01
• 1 x 340W Power Supply PWS-341P-1H
• 1 x Supermicro RSC-RR1U-E16 1U Riser Card
• 1 x LSI MegaRAID SAS 9361-8i 8-Channel Storage Controller (RAID 0, 1, 5, 6, 10, 50, 60)

Manufacturer Motherboard Specification:
Physical StatsForm Factor

• 9.6" x 9.6" (24.38cm x 24.38cm)

Processor/CacheCPU

• Intel® 4th Generation Core™ i3 series, Intel® Celeron®, Intel® Pentium®v, Intel® Xeon® processor E3-1200 v3, Intel® Xeon® Processor E3-1200 v4 series.
• Single Socket LGA 1150 supported, CPU TDP support 85W

System MemoryMemory Capacity

• Up to 32GB Unbuffered ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots

Memory Type

• 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 1GB, 2GB, 4GB, 8GB

Memory Voltage

• 1.35V, 1.5V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesChipset

• Intel® C224 Express PCH

SATA

• SATA3 (6 Gbps) ports; RAID 0,1,5,10
• SATA2 (3 Gbps) ports; RAID 0,1

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network Controllers

• Quad LAN with Intel® Ethernet Controller I210-ATSupports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 outputRealtek RTL8211E PHY (dedicated IPMI)

Graphics

• Aspeed AST2400 BMC

Input / OutputLAN

• 4 RJ45 Gigabit Ethernet LAN ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 6 USB 2.0 ports (2 rear + 4 headers)
• 4 USB 3.0 ports (2 rear + 1 header + 1 Type A)

Video Output

• 1 VGA D-Sub Connector port

Serial Port / Header

• 2 COM Ports (1 rear, 1 header)
  1 fast UART 16550 serial

TPM

• TPM Header

Expansion SlotsPCI-E

• 1 PCI-E 3.0 x16
• 1 PCI-E 2.0 x2 (in x8 slot)

System BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• ACPI 5.0
• USB Keyboard support
• DMI (SMBIOS) 2.7

ManagementSoftware

• IPMI2.0, NMI, SuperDoctor® III, Watchdog

Power Configurations

• ACPI Power Management
• Main Switch Override Mechanism
• Power-on mode for AC power recovery
• Internal/External modem ring-on

PC Health MonitoringVoltage

• +12V, +3.3V, +5V, +5V standby, 5 Phase-switching voltage regulator, Chipset Voltage, HT, VBAT

FAN

• 5x 4-pin fan headers (up to 5 fans), Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control

Temperature

• Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI, FC temperature sensing logic

LED

• CPU / System Overheat LED, +5V Standby alert LED

Other Features

• Chassis intrusion detection, Chassis intrusion header

Operating EnvironmentOperating Temperature Range

• 0°C ~ 50°C (32°F ~ 122°F)

Non-Operating Temperature Range

• -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

• 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range

• 5% - 95% (non-condensing)

VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£350 excluding VAT

VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
