Key Features

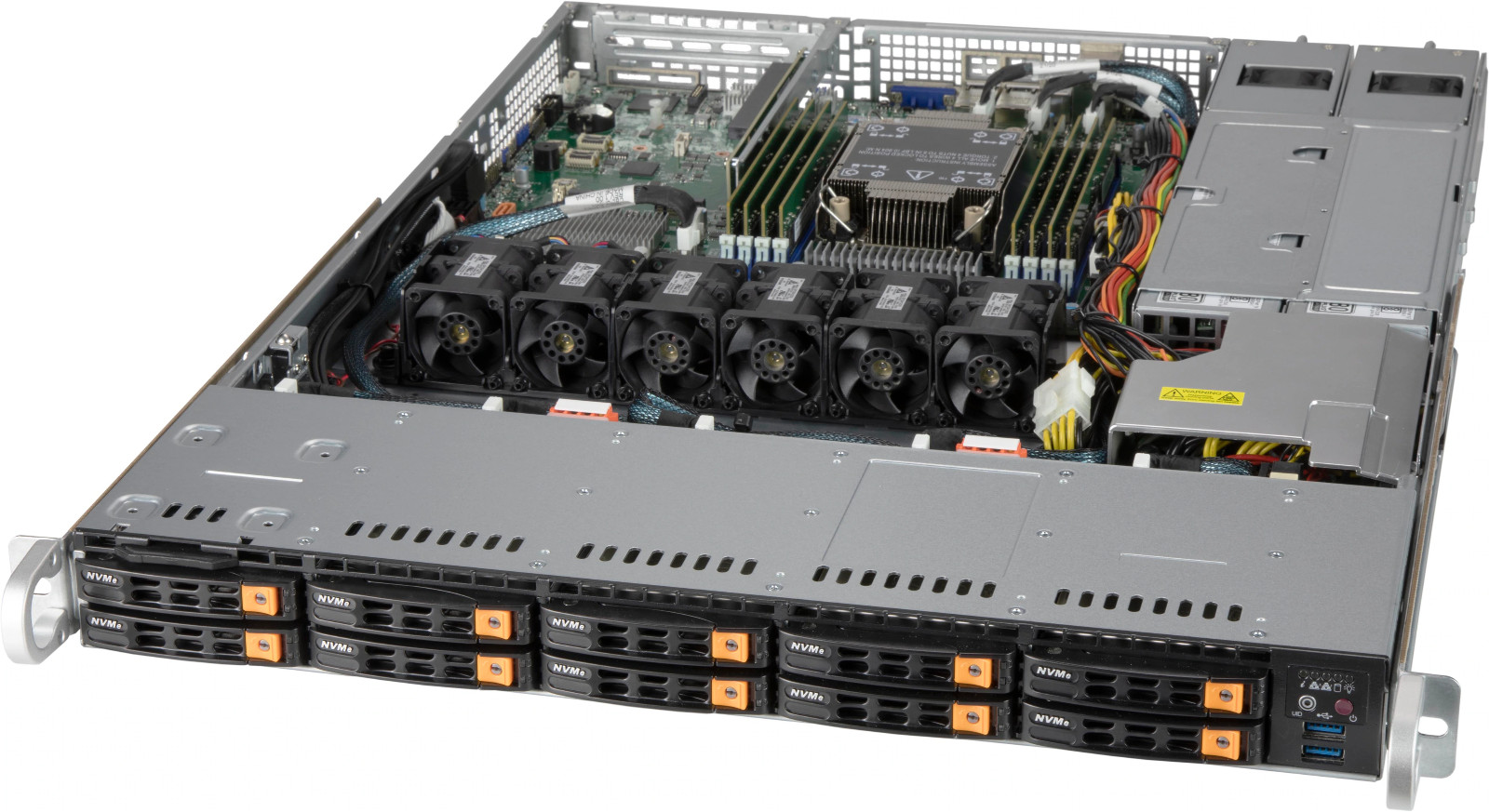

- 23.5" Depth 1U Rackmount Chassis - supports for maximum motherboard sizes of 12" x 13"
- 10 x 2.5” NVMe/SAS hybrid drive bay
SAS or enterprise SATA HDD only recommended - 1U 10-Slot SFF Hybrid Backplane Supports 10xSAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 2x(1x4) + 1x(2x2) Power Connectors
- 800W/860W 1U redundant power supply
- 1 full-height & full-length expansion slot(s)
- 4 x 40x56mm counter-rotation PWM fan(s)
Optional 2 x fans for AOC cooling
Standard Parts List Part Number Qty Description Air Shroud MCP-310-19002-0N 1 SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB HD Backplane BPN-SAS3-LB16A-N10 1 1U 10-Slot SFF Backplane Supports 10xSAS3/SATA3/NVMe4 Storag Cable(s) CBL-0335L 1 FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF Cable(s) CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH Part(s) MCP-120-00031-0N 1 Riser card bracket for SC812,813,813M,815,111,113,113M Part(s) MCP-120-00116-0N 1 Blank FH L-bracket with 4x4 vent holes Part(s) MCP-230-00021-0N 1 Top cover for SC113 Part(s) MCP-270-00023-0N 1 1U SC116 chassis base(Redundant Power) Part(s) MCP-290-81501-0V 1 Sliver chassis handle for Fan(s) FAN-0141L4 4 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan Front Panel FPB-FP116-DU3 1 Front control board with two USB 3.0 for SC116/SC119X Cooling Fan & Accessory MCP-320-00027-0B 24 Plastic pin for 40x28, 40x56 fan Cooling Fan & Accessory MCP-320-00028-0B 1 Fan holder for 6pcs 40x56 fan, assemble-able for SC819/SC119/SC818/SC116 Cooling Fan & Accessory MCP-340-00035-0B 2 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective) Drive Tray(s) MCP-220-00167-0B 10 Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS Power Distributor PDB-PT112-2424 1 SC112 24PIN REDUNDANT PWS DISTRIBUTOR Part(s) MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF Power Supply & Accessory MCP-250-00009-0N 1 SC113 Redundant Power Distributor Cover Power Supply & Accessory PWS-860P-1R2 2 1U 860W, Redundant power supply, 54.5mm width, Platinum with Mounting Rail(s) MCP-290-00016-0N 1 1U open rack bracket set for CSE-PT51L,MCP-290-00054-0N Mounting Rail(s) MCP-290-00063-0N 1 set Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH Rear Window MCP-240-00086-0N 1 STD rear window for SC113 redundant PWS
