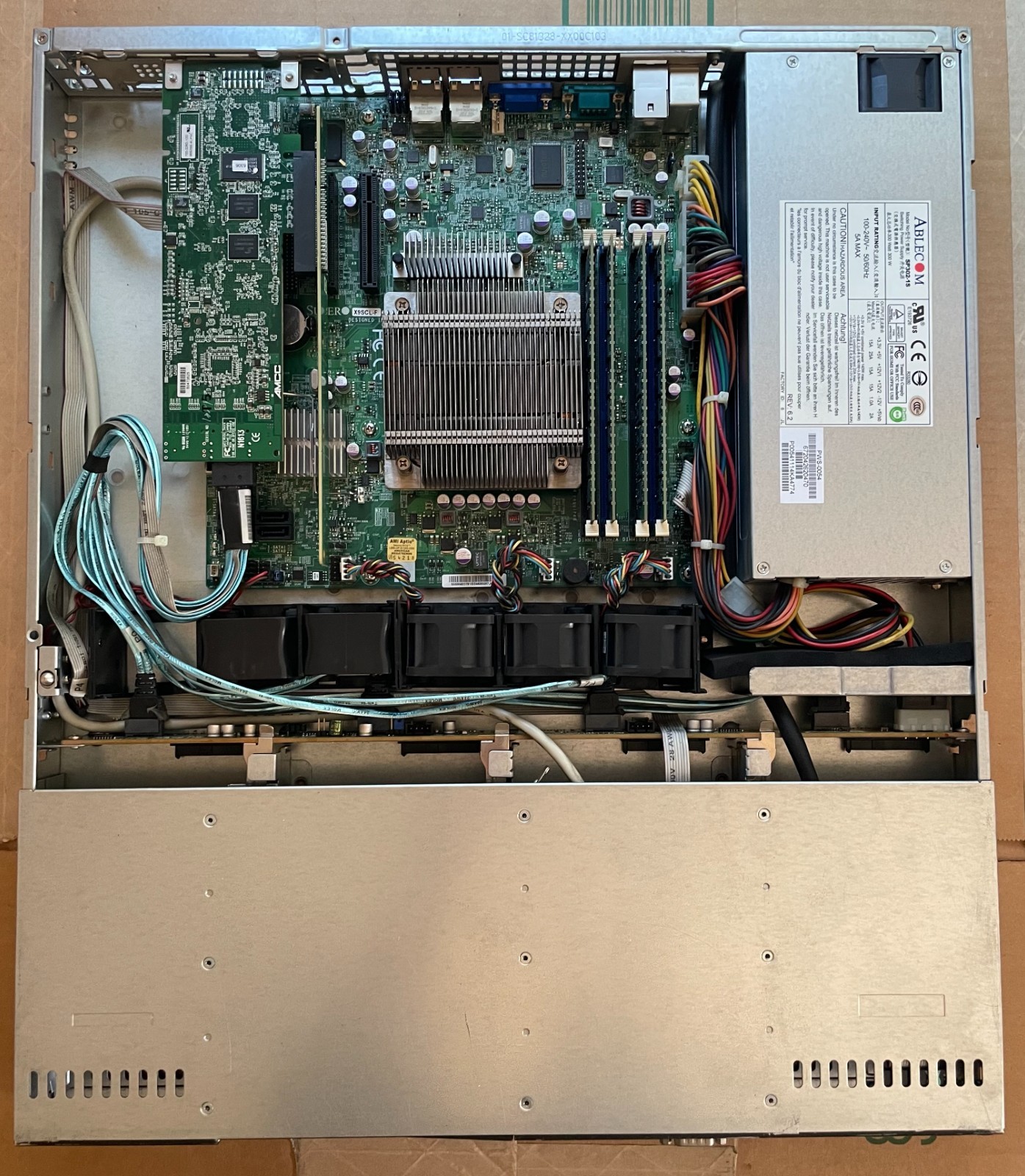

Complete 1U server pulled from a working environment. Fully tested — powers on, posts, IPMI confirmed, BIOS flashed to latest version (2.3a, 01/06/2021). See BIOS and 3ware controller screenshots in photos for verification.

INCLUDES:

• Supermicro CSE-813M 1U chassis
• Supermicro X9SCL-F motherboard (LGA1155, Intel C202)
• Intel Xeon E3-1270 v2 (4C/8T, 3.5GHz / 3.9GHz turbo)
• 32GB DDR3 ECC (4x slots populated — board maximum)
• Ablecom SP302-1S 300W power supply (PWS-0054)
• 3ware/AMCC 9650SE-4LPML 4-port SATA RAID controller (low-profile, firmware 4.10.00.007)
• 4x Seagate Constellation ES.3 ST1000NM0033 1TB 7.2K enterprise SATA drives (4TB raw) in Supermicro hot-swap trays
• Pair of Supermicro rack rails

DOES NOT INCLUDE:

• Operating system or software licenses
• RAID battery backup unit (BBU not present)

SYSTEM SPECS:

• Form Factor: 1U Rackmount
• CPU: Intel Xeon E3-1270 v2, Quad Core / 8 Threads, 3.50GHz base
• RAM: 32GB DDR3 ECC (maxed out)
• Max RAM: 32GB
• Chipset: Intel C202
• Storage: 4x 1TB SATA (4TB raw), currently a single 4-drive array on the 3ware controller
• RAID: 3ware 9650SE-4LPML hardware controller, 4-port SATA
• Network: 2x Intel 82574L Gigabit LAN + dedicated IPMI 2.0 (KVM-over-LAN, virtual media)
• Rear I/O: 2x USB, PS/2 keyboard + mouse, DB9 serial, VGA
• Front Panel: status LEDs, reset

NOTES:

• Drives are configured as a single array — reconfigure to your own RAID level or wipe as desired.
• Normal cosmetic wear consistent with data-center use (light surface scratches).

Ideal for homelab, virtualization (Proxmox/ESXi), NAS/storage (TrueNAS/ZFS), pfSense/firewall, or a small business server. Rails included for immediate rack installation. Pulled from a working data center environment. Sold as-is.
