Key Features

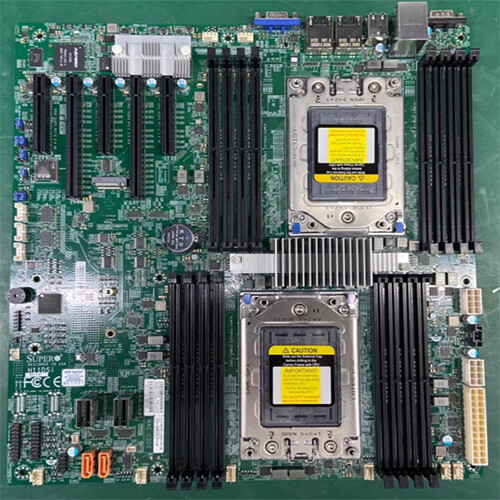

1.Dual AMD EPYC™ 7001/7002*Series Processors (*AMD EPYC 7002 series drop-in support requires board revision 2.x)2.2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required)3.Expansion slots: 2 PCI-E 3.0 x16 3 PCI-E 3.0 x8 M.2 Interface: 1 SATA/PCI-E 3.0 x2 (Platform with EPYC 7002 processor only supports PCI-E type M.2 module) M.2 Form Factor: 2280, 22110 M.2 Key: M-key 4.10 SATA3, 1 M.2, 2 SATA DOM5.Dual Gigabit Ethernet LAN Ports6.ASPEED AST2500 BMC graphics7.Up to 2 USB 3.0 ports Up to 4 USB 2.0 ports8.8 4-pin PWM Fan & Speed controlSpecifications Product SKUs MBD-H11DSi Physical Stats Form Factor - 12" x 13.05" (30.5cm x class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
- Dual AMD EPYC™ 7001/7002*series Processors (*Board revision 2.x required)
- Socket SP3
- Up to 240W TDP
Cores - Up to 32 Cores
- Up to 64 Cores (Board revision 2.x required)
Chipset System Memory Memory Capacity - 16 DIMM sockets
- Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
- Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)
- 8-channel memory bus
Memory Type - DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
- DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)
DIMM Sizes - 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*(*Board revision 2.x required)
Memory Voltage Error Detection - Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board Devices SATA IPMI - Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2500 BMC
Network Controllers - 2 1GbE LAN via Intel® i350-AM21
- 1 Realtek RTL8211E PHY (dedicated IPMI)
VGA Input / Output SATA LAN - 2 RJ45 Gigabit Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port
USB - 2 USB 3.0 ports (rear)
- 4 USB 2.0 ports (2 rear + 2 via header)
VGA Others - 1 COM port (rear)
- 2 SATA DOM power connector
- 1 TPM 2.0 header
Expansion Slots PCI-Express - 3 PCI-E 3.0 x8
- 2 PCI-E 3.0 x16
M.2 - Interface: 1 SATA/PCI-E 3.0 x2
(Platform with EPYC 7002 processor only supports PCI-E type M.2 module) - Form factor: 2280, 22110
