Product SKUsMBD-H11DSi

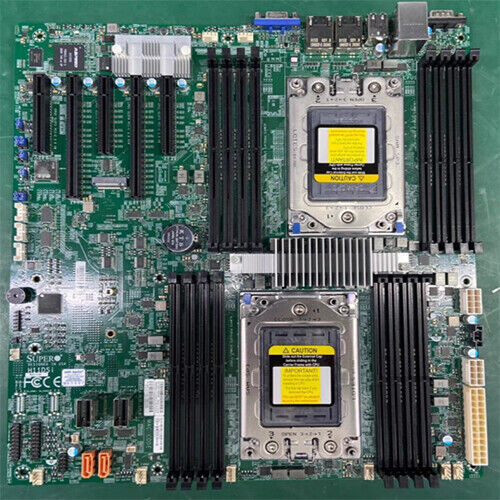

H11DSi
MBD-H11DSi-B
H11DSi (Bulk Pack)
Physical StatsForm Factor
E-ATX
Dimensions
12" x 13.05" (30.5cm x
Dual AMD EPYC™ 7001/7002* series Processors (*Board revision 2.x required)
Socket SP3
Up to 240W TDP
Cores
Up to 32 Cores
Up to 64 Cores (Board revision 2.x required)
Chipset
System on Chip
System MemoryMemory Capacity
16 DIMM sockets
Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)
8-channel memory bus
Memory Type
DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB* (*Board revision 2.x required)
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board DevicesSATA
SATA3 (6 Gbps)
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC
Network Controllers
2 1GbE LAN via Intel® i350-AM21
1 Realtek RTL8211E PHY (dedicated IPMI)
VGA
ASPEED AST2500 BMC
Input / OutputSATA
10 SATA3 (6 Gbps) ports
LAN
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.0 ports (rear)
4 USB 2.0 ports (2 rear + 2 via header)
VGA
1 VGA port
Others
1 COM port (rear)
2 SATA DOM power connector
1 TPM 2.0 header
Expansion SlotsPCI-Express
3 PCI-E 3.0 x8
2 PCI-E 3.0 x16M.2
Interface: 1 SATA/PCI-E 3.0 x2
(Platform with EPYC 7002 processor only supports PCI-E type M.2 module)
Form factor: 2280, 22110
Key: M-key
