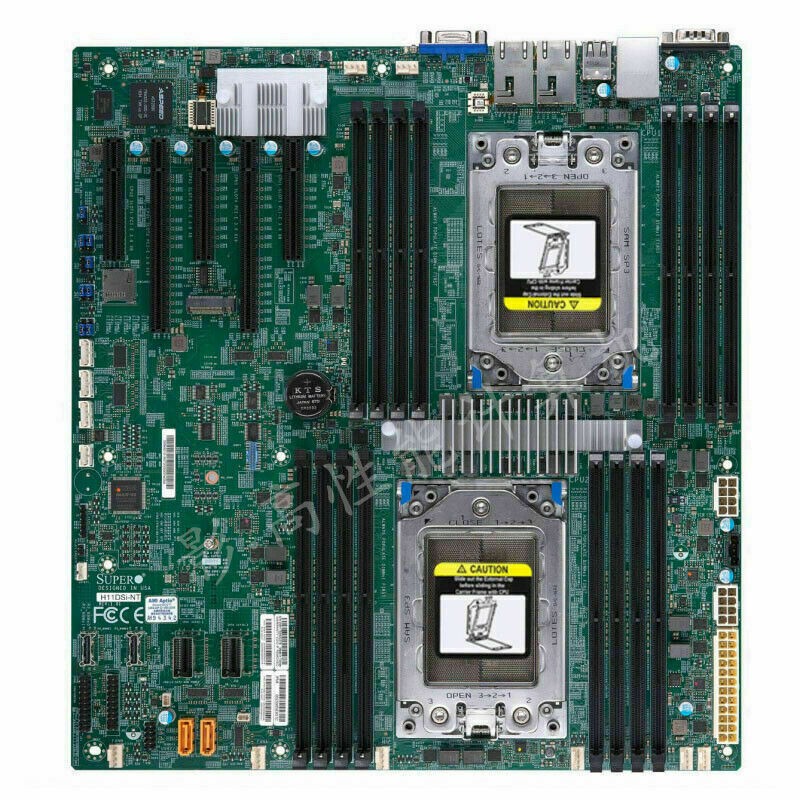

Key Features 1. Dual AMD EPYC™ 7001/7002* Series Processors (*AMD EPYC 7002 series drop-in
support requires board revision 2.x) 2. 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required) 3. Expansion slots:
 2 PCI-E 3.0 x16
 3 PCI-E 3.0 x8
 M.2 Interface: 1 SATA/PCI-E 3.0 x2
 (Platform with EPYC 7002 processor
 only supports PCI-E type M.2 module)
 M.2 Form Factor: 2280, 22110
 M.2 Key: M-key
4. 10 SATA3, 1 M.2, 2 SATA DOM 5. Dual 10GBase-T LAN Ports 6. ASPEED AST2500 BMC graphics 7. Up to 2 USB 3.0 ports
Up to 4 USB 2.0 ports 8. 8 4-pin PWM Fan & Speed control
