Package include:

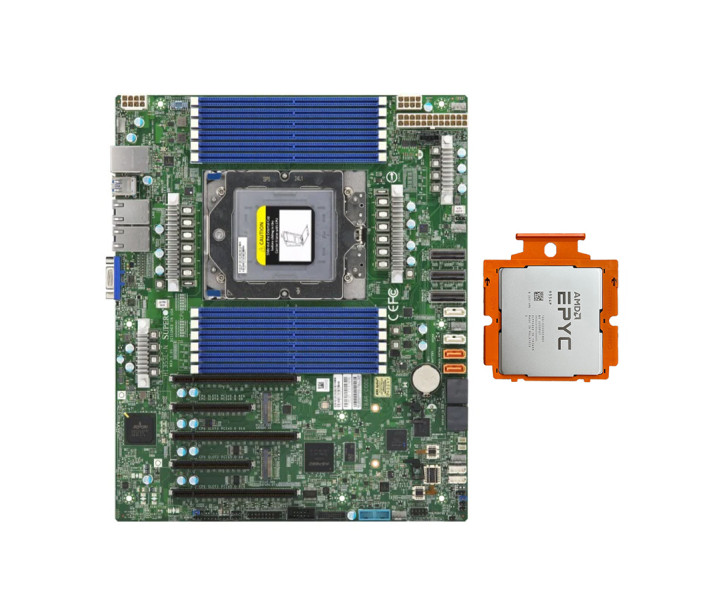

1XSupermicro H13SSL-N

1xAMD Genoa EPYC 9174F

CPU

AMD EPYC™ 9174FGeneral SpecificationsRegional AvailabilityGlobal, China, NA, EMEA, APJ, LATAMPlatformServerProduct FamilyAMD EPYC™Product LineAMD EPYC™ 9004 Series# of CPU Cores16# of Threads32Max. Boost ClockUp to 4.4GHzAll Core Boost Speed4.15GHzBase Clock4.1GHzL3 Cache256MB1kU Pricing3,850 USDDefault TDP320WAMD Configurable TDP (cTDP)320-400WCPU SocketSP5Socket Count1P / 2PLaunch Date11/10/2022ConnectivityPCI Express® VersionPCIe 5.0 x128System Memory TypeDDR5Memory Channels12System Memory SpecificationUp to 4800MT/s

Mainboard

Product SKUsMBD-H13SSL-N
Physical StatsForm Factor

• ATX

Dimension

• 12" x 10.1" (30.48cm x 25.65cm)

ProcessorCPU

• AMD EPYC™ 9004 series Processors
• Single Socket SP5 supported, CPU TDP supports Up to 400W TDP

Core

• Up to 96/192

System MemoryMemory Capacity

• 12 DIMM slots
• Up to 3TB 3DS ECC Registered RDIMM, DDR5-4800MHz

Memory Type

• 4800 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MHz (1DPC)

DIMM Sizes

• 16GB, 24GB, 32GB, 40GB, 48GB, 64GB, 80GB, 96GB, 128GB, 192GB, 256GB

Memory Voltage

• 1.1V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board DevicesChipset

• System on Chip

Network Controllers

• Dual LAN with Broadcom BCM5720 1GBase-T

Input / OutputSATA

• 8 SATA3 (6Gbps) port(s)

LAN

• 1 RJ45 Dedicated IPMI LAN port

USB

• 6 USB 3.0 port(s) (4 USB; 2 via header)

Video Output

• 1 VGA port(s)

Serial Port

• 1 COM Port(s) (1 header)

TPM

• 1 TPM Header

Others

• 1 MCIO (PCIe 5.0 x8/SATA3) Port(s)
• 2 MCIO (PCIe 5.0 x8) Port(s)

Expansion SlotsPCIe

• 3 PCIe 5.0 x16 (in x16 slot),
• 2 PCIe 5.0 x8

M.2

• M.2 Interface: 2 SATA/PCIe 4.0 x4
• Form Factor: 2280/22110
• Key: M-Key

System BIOSBIOS Type

• AMI 32MB SPI Flash EEPROM

BIOS Features

• ACPI 6.4
• SMBIOS 3.5 or later
• UEFI 2.8
• Plug and Play (PnP)
• USB Keyboard support

ManagementSoftware

• SuperDoctor® 5, SPM, SUM, SSM, Watchdog, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, IPMI 2.0, KVM with dedicated LAN

PC Health MonitoringVoltage

• VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby

LED

• UID/Remote UID
• BMC/IPMI Heartbeat LED

Other Features

• RoT

FAN

• 6x 4-pin fan headers (up to 6 fans)

Operating EnvironmentOperating Temperature Range

• 10°C - 35°C (50°F - 95°F)

Non-Operating Temperature Range

• -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

• 8% - 90% (non-condensing)

Non Operating Relative Humidity Range

• 5% - 95% (non-condensing)
