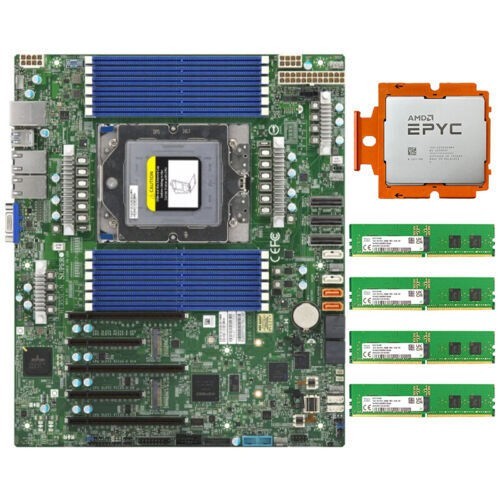

Supermicro H13SSL-N Motherboard W/ AMD EPYC Genoa 9334 QS CPU & 64G PC5-4800 RAM
Package include: 1x Supermicro H13SSL-N MB 1x AMD Genoa EPYC 9334 QS 4x16GB 1RX8 PC5-4800B-RD0-1010-NT
Motherboard Product SKUsMBD-H13SSL-N Physical StatsForm Factor Dimension - 12" x 10.1" (30.48cm x 25.65cm)
ProcessorCPU - AMD EPYC™ 9004 series Processors
- Single Socket SP5 supported, CPU TDP supports Up to 400W TDP
Core System MemoryMemory Capacity - 12 DIMM slots
- Up to 3TB 3DS ECC Registered RDIMM, DDR5-4800MHz
Memory Type - 4800 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MHz (1DPC)
DIMM Sizes - 16GB, 24GB, 32GB, 40GB, 48GB, 64GB, 80GB, 96GB, 128GB, 192GB, 256GB
Memory Voltage Error Detection - Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board DevicesChipset Network Controllers - Dual LAN with Broadcom BCM5720 1GBase-T
Input / OutputSATA LAN - 1 RJ45 Dedicated IPMI LAN port
USB - 6 USB 3.0 port(s) (4 USB; 2 via header)
Video Output Serial Port TPM Others - 1 MCIO (PCIe 5.0 x8/SATA3) Port(s)
- 2 MCIO (PCIe 5.0 x8) Port(s)
Expansion SlotsPCIe - 3 PCIe 5.0 x16 (in x16 slot),
- 2 PCIe 5.0 x8
M.2 - M.2 Interface: 2 SATA/PCIe 4.0 x4
- Form Factor: 2280/22110
- Key: M-Key
System BIOSBIOS Type - AMI 32MB SPI Flash EEPROM
BIOS Features - ACPI 6.4
- SMBIOS 3.5 or later
- UEFI 2.8
- Plug and Play (PnP)
- USB Keyboard support
ManagementSoftware - SuperDoctor® 5, SPM, SUM, SSM, Watchdog, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, IPMI 2.0, KVM with dedicated LAN
PC Health MonitoringVoltage - VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
LED - UID/Remote UID
- BMC/IPMI Heartbeat LED
Other Features FAN - 6x 4-pin fan headers (up to 6 fans)
Operating EnvironmentOperating Temperature Range - 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range - -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range - 8% - 90% (non-condensing)
Non Operating Relative Humidity Range - 5% - 95% US
