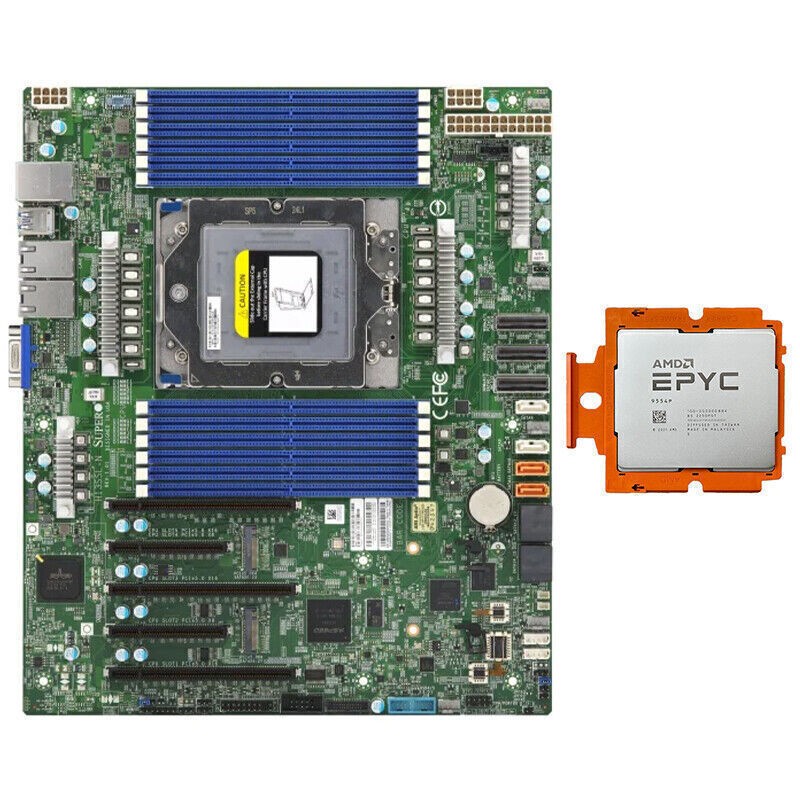

Product SKUsMBD-H13SSL-N
Physical StatsForm FactorDimension- 12" x 10.1" (30.48cm x 25.65cm)
ProcessorCPU- AMD EPYC™ 9004 series Processors
- Single Socket SP5 supported, CPU TDP supports Up to 400W TDP
Core- Up to 128 cores, 256 threads
System MemoryMemory Capacity- 12 DIMM slots
- Up to 3TB 3DS ECC Registered RDIMM, DDR5-4800MHz
Memory Type- 4800 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MHz (1DPC)
DIMM Sizes- 16GB, 24GB, 32GB, 40GB, 48GB, 64GB, 80GB, 96GB, 128GB, 192GB, 256GB
Memory VoltageError Detection- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board DevicesChipsetNetwork Controllers- Dual LAN with Broadcom BCM5720 1GBase-T
Input / OutputSATALAN- 1 RJ45 Dedicated IPMI LAN port
USB- 6 USB 3.0 port(s) (4 USB; 2 via header)
Video OutputSerial PortTPMOthers- 1 MCIO (PCIe 5.0 x8/SATA3) Port(s)
- 2 MCIO (PCIe 5.0 x8) Port(s)
Expansion SlotsPCIe- 3 PCIe 5.0 x16 (in x16 slot),
- 2 PCIe 5.0 x8
M.2- M.2 Interface: 2 SATA/PCIe 4.0 x4
- Form Factor: 2280/22110
- Key: M-Key
System BIOSBIOS Type- AMI 32MB SPI Flash EEPROM
BIOS Features- ACPI 6.4
- SMBIOS 3.5 or later
- UEFI 2.8
- Plug and Play (PnP)
- USB Keyboard support
ManagementSoftware- Redfish API,Supermicro Server Manager (SSM),Supermicro Update Manager (SUM),SuperDoctor® 5,Super Diagnostics Offline,KVM with dedicated LAN,IPMI 2.0
SecurityHardware- Trusted Platform Module (TPM) 2.0
PC Health MonitoringVoltage- VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
LED- UID/Remote UID
- BMC/IPMI Heartbeat LED
Other FeaturesFAN- 6x 4-pin fan headers (up to 6 fans)
Operating EnvironmentOperating Temperature Range- 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range- -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range- 8% - 90% (non-condensing)
Non Operating Relative Humidity Range- 5% - 95% style="font-family: "Microsoft YaHei"; font-size: medium; text-wrap: wrap;">
AMD EPYC™ 9654General SpecificationsRegional AvailabilityGlobal, China, NA, EMEA, APJ, LATAMPlatformServerProduct FamilyAMD EPYC™Product LineAMD EPYC™ 9004 Series# of CPU Cores96# of Threads192Max. Boost ClockUp to 3.7GHzAll Core Boost Speed3.55GHzBase Clock2.4GHzL3 Cache384MB1kU Pricing11,805 USDDefault TDP360WAMD Configurable TDP (cTDP)320-400WCPU SocketSP5Socket Count1P/2PLaunch Date11/10/2022ConnectivityPCI Express® VersionPCIe 5.0 x128System Memory TypeDDR5Memory Channels12System Memory SpecificationUp to 4800MHzPer Socket Mem BW460.8 GB/sProduct IDsProduct ID Tray100-000000789Key FeaturesSupported TechnologiesAMD Infinity GuardAMD Infinity ArchitectureWorkload AffinityApp dev/testConsumer-Oriented Digital ServicesContent mgmtERM/SCM/CRM apps
|
|
