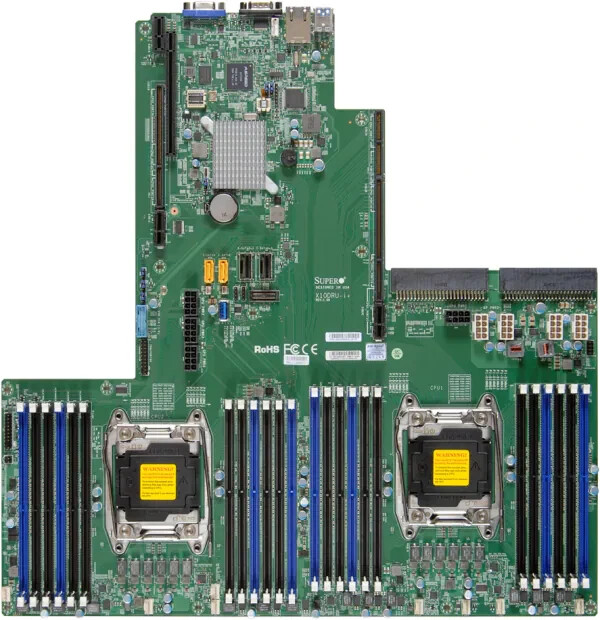

Supermicro MBD-X10DRU-I+-B Motherboard NEW, IN STOCK, 5 Year WarrantyBoard Only. No Accessories included.
Product SKUsMBD-X10DRU-i+

• 17" x 16.8" (43.18cm x 42.67cm)

Processor/CacheCPU

• Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
• Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 160W, 1 QPI up to 9.6GT/s

Cores / Cache

• Up to 22 cores † / Up to 55MB† cache

Note

• † BIOS version 2.0 or above is required

Note

• ** Motherboard supports this maximum TDP. Please verify your system can thermally support.

System MemoryMemory Capacity

• 1.5TB Registered ECC RDIMM, DDR4-2400MHz; Up to 3TB 3DS ECC LRDIMM, in 24 DIMM slots

Memory Type

• 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes

• RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
• LRDIMM: 32GB, 64GB
• 3DS LRDIMM: 128GB

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors

On-Board DevicesChipset

• Intel® C612

SATA

• Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

AHCI SATA

• SATA3 (6Gbps); RAID 0, 1, 5, 10

SCU SATA

• SATA3 (6Gbps); RAID 0, 1, 5, 10

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2400 BMC

Network Controllers

• Networking options provided via Ultra Riser

Graphics

• Aspeed AST2400 BMC

Input / OutputSATA

• 10 SATA3 (6Gbps) port

LAN

• 1

USB

• 3 USB 3.0 ports (2 rear + 1 Type A)

Video Output

• 1 VGA port

Serial Port / Header

• 2 COM Ports (1 rear, 1 header)
  2 fast UART 16550 serial

TPM

• 1 TPM Header & Chip both

Expansion SlotsPCI-E

• 1 PCI-E 3.0 x32 Left Riser Slot,
• 1 PCI-E 3.0 x8 Right Riser Slot,
• 1 PCI-E 3.0 x40 Ultra Riser Slot
• See Ultra Riser Compatibility Matrix.

System BIOSBIOS Type

• 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• PCI 2.3
• ACPI 1.0 / 2.0 / 3.0 / 4.0
• USB Keyboard support
• SMBIOS 2.7.1
• UEFI 2.3.1

ManagementSoftware

• Intel® Node Manager, IPMI2.0, NMI, SuperDoctor® 5, Watchdog

Power Configurations

• ACPI Power Management
• Power-on mode for AC power recovery

PC Health MonitoringVoltage

• +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 5+1 Phase-switching voltage regulator, Memory Voltages, Monitors for CPU Cores, VBAT

FAN

• 8x 4-pin fan headers (up to 8 fans), Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control

Temperature

• Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI, Support to monitor Supermicro AOC temperatures from IPMI or SD 5

LED

• CPU / System Overheat LED, UID/Remote UID, Memory DIMM ECC error LEDs

Other Features

• 4x 8-pin GPU power connectors, Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC

Operating EnvironmentOperating Temperature Range

• 10°C - 35°C (50°F - 95°F)

Non-Operating Temperature Range

• -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

• 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range

• 5% - 95% (non-condensing)
