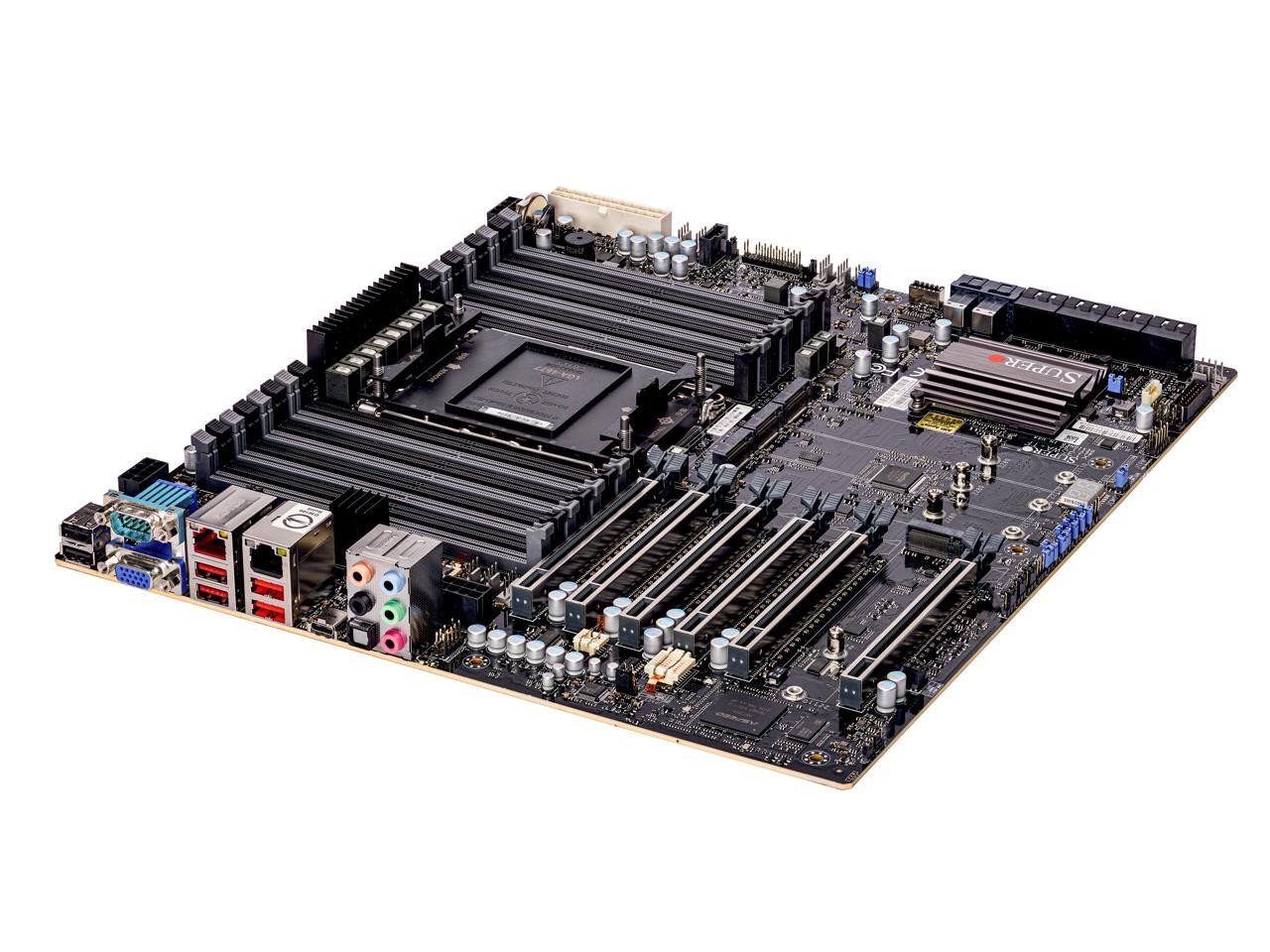

Supermicro MBDX13SWATFO E-ATX Server Motherboard Supermicro MBDX13SWATFO E-ATX Server Motherboard
International Customers: All electronic products are packaged for sale in the US with US voltage.
This item is brand-new, factory sealed.
Key Features
Intel Xeon W-3400 series and Xeon W-2400 series processors, Up to 350W TDP
Intel W790
Up to 4TB(W-3400)/2TB(W-2400) 3DS ECC RDIMM, 1TB(W-3400)/512GB(W-2400) ECC RDIMM; DDR5-4800MT/s(1DPC)/ 4400MT/s(2DPC), in 16 DIMM slots
M.2 Interface: 4 PCIe 5.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Socket (w/o heat sink)
Xeon W-3400 Series Processors: 6 PCIe 5.0 x16 Slots, support up to 6 Single Width/4 Double Width/2 Triple Width GPU cards
Xeon W-2400 Series Processors:3 PCIe 5.0 x16 Slots, support up to 3 Single Width/3 Double Width/2 Triple Width GPU cards (slot 3/5/7)
1GbE LAN port with Intel Ethernet Controller I210-AT
10GbE LAN with Marvell AQC113C
8 SATA 3 (6Gb, RAID 0, 1, 5, 10)
2 U.2 PCIe 3.0 for NVMe 2.5" SSD drives (U.2-1, U.2-2)
IPMI Supported
Overclocking Supported (optional)Product SKUs
MBD-X13SWA-TFPhysical Stats
Form Factor
E-ATX
Dimension
13" x 12" (33.02cm x 30.48cm)Processor
CPU
Intel Xeon W-3400 series and Xeon W-2400 series processors
Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
Support CPU overclocking (optional, processors model name with the X suffix)
Core
Up to 56 coresSystem Memory
Memory Capacity
16 DIMM slots
Up to 4TB 3DS ECC Registered RDIMM, DDR5-4800MHz
Memory Type
4800/4400 MT/s ECC DDR5 RDIMM (3DS)
1. Up to 4TB 3DS ECC RDIMM, 1TB ECC RDIMM, DDR5-4800MT/s(1DPC)/ 4400MT/s(2DPC), with Intel Xeon W-3400 series processor in 16 DIMM slots.
2. Up to 2TB 3DS ECC RDIMM, 512GB ECC RDIMM, DDR5-4800MT/s(1DPC)/ 4400MT/s(2DPC), with Intel Xeon W-2400 series processor in 8 DIMM slots.
DIMM Sizes
16GB, 32GB, 64GB, 128GB, 256GB
RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.1VOn-Board Devices
Chipset
Intel W790
SATA
Intel W790 controller for 8 SATA3 (6 Gbps) ports
RAID 0, 1, 5, 10
Audio
Realtek ALC888S 7.1 HD Audio
Network Controllers
Single LAN with Marvell AQC113C, 1x 10GbE RJ45 LAN port with AQC113C
Single LAN with Intel Ethernet Controller I210-AT, 1x 1GbE LAN Port with Intel i210AT, share with IPMIInput / Output
SATA
8 SATA 3 (6Gbps) port(s)
USB
4 USB 2 port(s) (2 via header, 2 rear Type A)
2 USB 3.2 Gen2x2 port(s) (1 rear type C, 1 via header)
4 USB 3.2 Gen2x1 port(s) (4 rear Type A)
2 USB 3.2 Gen1 port(s) (2 via header)
Video Output
1 VGA port(s) for IPMI only
Serial Port
1 COM Port(s) (1 rear)
TPM
1 TPM HeaderExpansion Slots
PCIe
6 PCIe 5.0 x16
M.2
M.2 Interface: 4 PCIe 5.0 x4, RAID 0, 1, 5, 10
Form Factor: 22110, 2280
Key: M-KeySystem BIOS
BIOS Type
256MB SPI Flash with AMI BIOS
BIOS Features
ACPI 6.0
Plug and Play (PnP)
BIOS rescue hot keys
Riser card auto-detection support
SMBIOS 3.0 or laterManagement
Software
Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), SuperDoctor 5, Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0
Power Configurations
Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Power supply monitoringSecurity
Hardware
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) NIST 800-193 Compliant
Features
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System LockdownPC Health Monitoring
Voltage
System temperature, PCH temperature, Memory temperature, CPU temperature, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +3.3V standby, Vmem, Peripheral temperature, GPU temperature, NvMe temperature, Platform Environment Control Interface (PECI)/(TSI), Vcore
FAN
10x 4-pin fan headers (up to 10 fans)
Fan speed control, 10 4-pin fan headers, CPU/System Overheat LED, Fan failed LED, UID/remote UID, HDD activity LED, LAN activity LED
Other Features
RoHS
Chassis intrusion detection
Power supply monitoringOperating Environment
Operating Temperature Range
0oC - 50oC (32oF - 122oF)
Non-Operating Temperature Range
-20oC - 60oC (-4oF - 140oF)Item Dimension (L inchxW inchxH inch)
Weight
3 lbs
Warranty Information
1 Year SpecificationPhysical CharacteristicsForm FactorExtended ATXMemoryMemory TechnologyDDR5 SDRAMMaximum Memory Supported4 TBGeneral InformationBrand NameSupermicroPackage TypeRetailProduct TypeServer MotherboardProduct NameServer MotherboardManufacturerSupermicro Computer, IncManufacturer Part NumberMBD-X13SWA-TF-OTitleProduct TitleSupermicro Server Motherboard - Intel Chipset - Extended ATX (MBDX13SWATFO)Processor & ChipsetChipset ManufacturerIntel Shipping
