Product SKUsMBD-PDSML-LN2+-O

• PDSML-LN2+ (Standard Retail Pack)

MBD-PDSML-LN2+-B

• PDSML-LN2+ (Bulk Pack)

Physical StatsForm Factor

• MicroATX (uATX)

Dimensions

• 9.6" width x 9.6 " length , (24.4cm x 24.4cm), 6 layers

Processor/CacheCPU

• Single LGA775 ZIF Socket
• Supports a Quad-CoreIntel® Xeon® 3200 seriesprocessor
• Supports a Dual-CoreIntel® Xeon® 3000 seriesprocessor
• Supports a Quad-CoreIntel® Core™2 Extreme seriesprocessor
• Supports anIntel® Core™2 Quad seriesprocessor
• Supports anIntel® Core™2 Duo seriesprocessor
• Supports anIntel® Pentium® processor E2000 series
• Supports a Dual-CoreIntel® Pentium® Dprocessor
• Supports anIntel® Pentium® Extreme Editionprocessor
• Supports anIntel® Pentium® 4processor
• Supports anIntel® Celeron® processor E1000 series
• Supports anIntel® Celeron® processor 400 series
• NOTE: This board DOES NOT support Q9000, E8000, E7000, E5000 series or 45nm processor

System Bus

• 1066 / 800 / 533 MHz system bus

System MemoryMemory Capacity

• Four 240-pin DIMM sockets
• Supports up to 8 GB of unbuffered ECC / non-ECC DDR2 667/533MHz memory (Dual Channel)

Memory Type

• DDR2 667/533MHz unbuffered ECC / non-ECC SDRAM, 240-pin gold-plated DIMMs

DIMM Sizes

• 256 MB, 512 MB, 1 GB, 2GB

Memory Voltage

• 1.8V only

On-Board DevicesChipset

• Intel 3000 (Mukilteo-2) chipset
• ICH7R + Intel® 82573V + Intel® 82573L

Serial ATA

• Intel® ICH7R SATA2 (3 Gbps) controller built-in
• Intel:
  RAID 0, 1, 5, 10 support (Windows Only)

IPMI

• 1U support for Intelligent Platform Management Interface v.2.0 (Optional: AOC-1UIPMI-B)

Network Controllers

• 1x Intel® 82573V Gigabit PCI-Express Ethernet
• 1x Intel® 82573L Gigabit PCI-Express Ethernet
• Supports 10Base-T, 100Base-TX, 1000BASE-TX, RJ45 output

VGA

• On-board XGI Volari Z7 graphics

Super I/O

• Winbond 83627HG chip

Clock Generator

• CK410

Input / OutputSerial ATA

• Four Serial ATA ports (3 Gbps performance)
• Four SATA hard drives supported

IDE

• One EIDE channel supports up to two UDMA IDE devices

Floppy

• 1 Floppy controller; 1.44 MB

LAN

• 2 x RJ45 LAN port

USB

• 6x USB 2.0 compliant / 1.1 compatible
• 4x internal USB headers
• 2x rear ports

VGA

• 1x VGA Port

Keyboard / Mouse

• PS/2 keyboard and mouse ports

Serial Ports

• 1x Fast UART 16550 serial port
• 1x Header

Chassis ( Optimized for PDSML-LN2+ )1U Chassis

• CSE-512F-260
• CSE-513F-260B
• CSE-811i-300
• CSE-811T-300

2U Chassis

• CSE-822T-550LP
• CSE-823i-550LP
• CSE-823T-550LP
• CSE-823T-R500LP
• CSE-733i-450
• CSE-733i-645
• CSE-733T-450
• CSE-733T-645
• CSE-742i-300
• CSE-742i-420
• CSE-742i-450
• CSE-742i-600
• CSE-742T-650
• To ensure system stability, a 300W (minimum) ATX power supply [4-pin +12V AND (20 or 24-pin)] is recommended.

Expansion SlotsUniversal Slot

• 1 (x8) PCI-Express Slot OR
• 1x 32-bit 33MHz PCI Slot

PCI-Express

• 1 (x4) PCI-e (using x8) slot

PCI

• 1x 32-bit 33MHz PCI (5V) slot

System BIOSBIOS Type

• 8Mb Flash EEPROM with Phoenix BIOS®

BIOS Features

• Plug and Play (PnP)
• DMI 2.3 support
• PCI 2.2
• ACPI 1.0
• ACPI 1.0 (limited)
• USB Keyboard support
• SMBIOS 2.3

ManagementSoftware

• Optional IPMI (Intelligent Platform Management Interface) 2.0
• SuperDoctor® III
• Watch Dog
• NMI
• W83793 H/W Monitor

Power Configurations

• ACPI/APM Power Management
• Main Switch Override Mechanism
• Wake-On-Ring (WOR) header
• Wake-On-LAN (WOL) header
• Power-on mode control for AC power loss recovery
• Internal / External Modem Rign-on

PC Health MonitoringVoltage

• Monitors for CPU Cores +1.8V, +3.3V, +5V, ±12V, +5V Standby
• CPU 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V

FAN

• Total of six 4-pin fan headers
• 6 fans with tachometer monitoring
• Status monitor with firmware speed control
• Low noise fan speed control
• Status monitor for on/off control
• Support 3-pin fans (without speed control)
• Pulse Width Modulated (PWM) fan connector

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• Thermal Monitor 2 (TM2) support
• PECI

LED

• CPU / System Overheat LED
• Standby Power alert LED

Other Features

• Chassis Intrusion Detection
• Chassis Intrusion Header

Operating EnvironmentEnvironmental Spec.

• Operating Temperature: 10°to 35°C (50°to 95°F)
• Non-operating Temperature: -40°to 70°C (-40°to 158°F)
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5 to 95% (non-condensing)

OS Compatibility
• Please see ourOS Compatibility ChartRegulatoryFCC

• Passed to meet FCC standard requirement

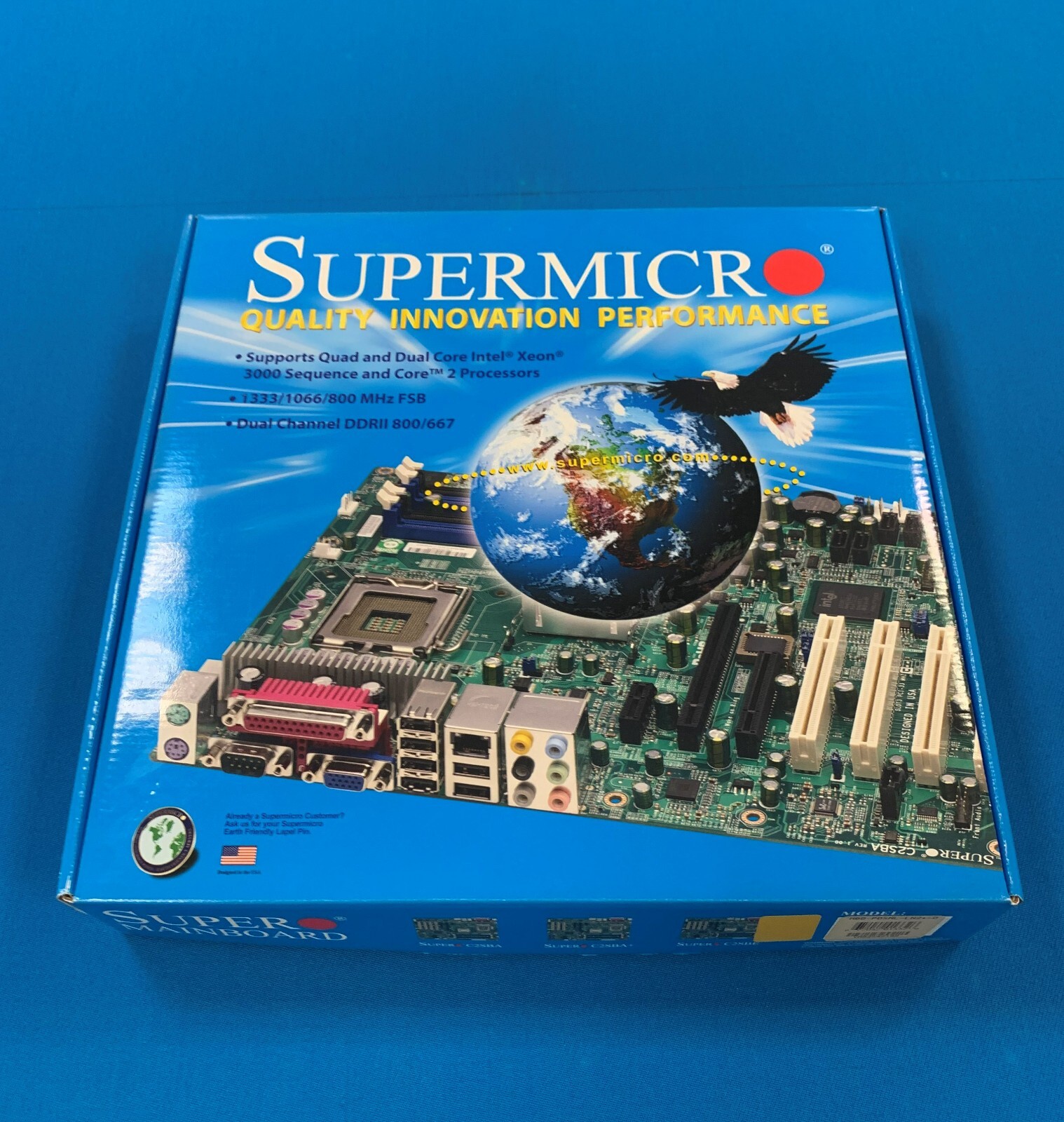

• • Brand new, unopened box!
