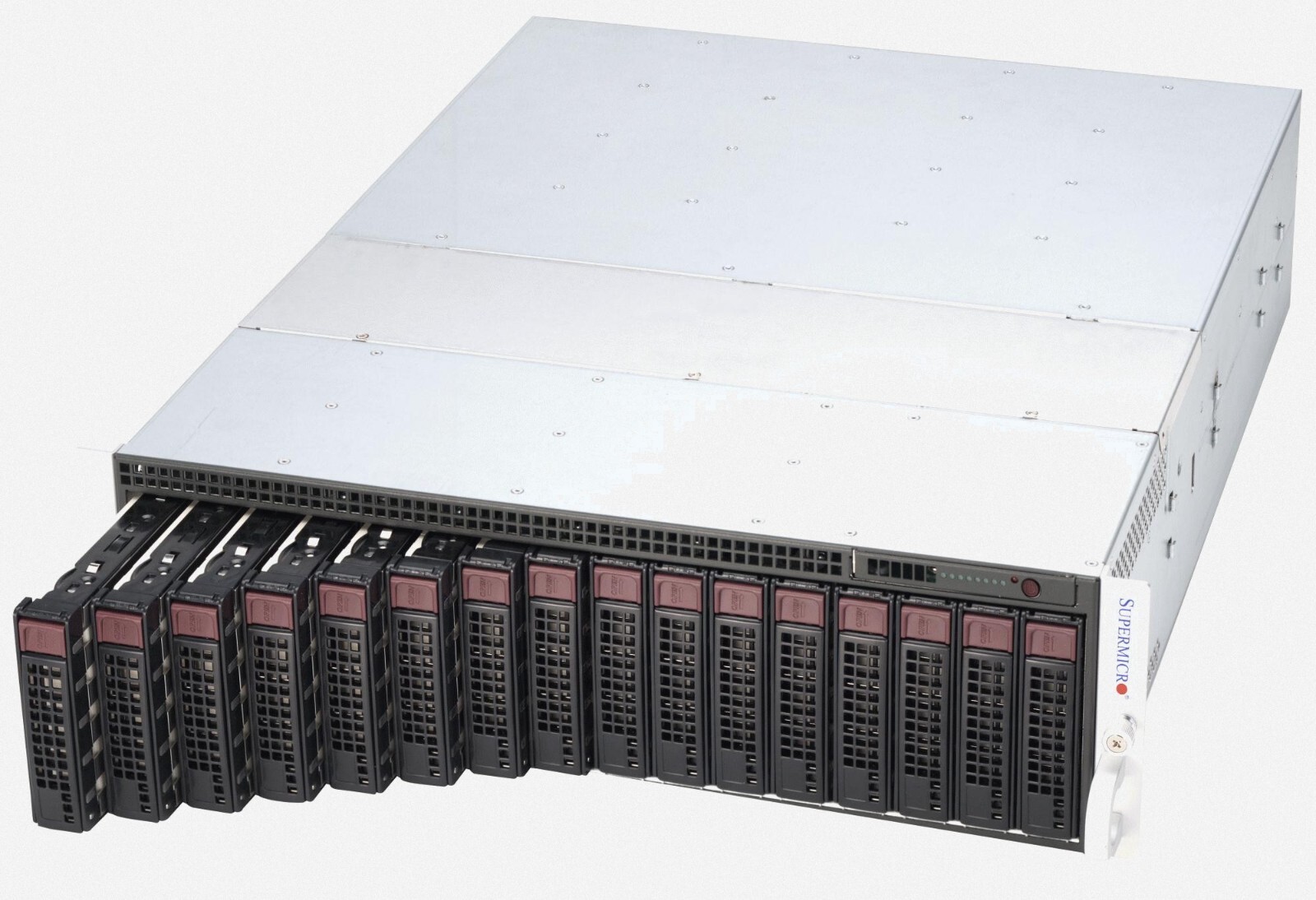

Supermicro SYS-5037MC-H86RF MicroCloud Barebones Server NEW IN STOCK 5 Year Wty
Product SKUsSuperServer

• SYS-5037MC-H86RF (Black)

MotherboardSuper X9SCD+-HF**Processor/CacheCPU

• Intel® Xeon® processor E3-1200 v2 series, Intel® 2nd/3rd Gen. Core i3 & Intel® Pentium® family processors***
• Socket H2 (LGA 1155)

System Memory (per node)Memory Capacity

• 4x 240-pin DDR3 DIMM slots
• Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)

Memory Type

• 1333/1600MHz*** ECC DDR3 SDRAM 72-bit, 240-pin gold-plated UDIMMs

DIMM Sizes

• 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices (per node)Chipset

• Intel® C204 PCH chipset*

SATA

• 1x SATA DOM

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM over LAN support
• Nuvoton WPCM450 BMC

Headers

• 1 USB header & 1 Type A USB, TPM ready

Graphics

• Matrox G200eW 16MB DDR2

Super I/O

• Nuvoton WPCM450RA0BX

Network Devices (per node)Micro-LP NIC

• Intel® 82580DB GbE controller
• iSCSI boot and PXE support
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• Intel® I/OAT 3support for fast, scaleable, and reliable networking
• VMDqsupport for better performance of virtualization
• MicroLP Adapter Matrix(Networking options)

Expansion Slots (per node)PCI-Express

• 1 (x8) PCI-E 3.0*** low-profile slot
• MicroLP Adapter Matrix(Networking options)

Input / Output (per node)Serial ATA

• 2x SAS/SATA ports with selected AOC

LAN

• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port

KVM

• 1x VGA, 1x COM, and 2x USB 2.0 ports

System BIOSBIOS Type

• 64Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• Plug and Play (PnP)
• APM 1.2
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
• RTC (Real Time Clock) Wakeup

Rear Window (each node)Switch

• Power / UID

ChassisForm Factor

• 3U

Model

• 5.21" (132.5 mm)

Width

• 17.26" (438.4 mm)

Depth

• 23.2" (589 mm)

Package

• 11.65" (H) x 26.26" (W) x 34" (D)

Weight

• Net Weight: 62.2 lbs (28.21 kg)
• Gross Weight: 88 lbs (39.92 kg)

Color

• Black

Front PanelButtons

• Power On/Off button

LEDs

• Power LED
• Node status LED

Drive BaysHot-swap

• 2x 3.5" hot-swap SAS/SATA3 (6Gbps) HDDs per node; up to 16 HDDs total
• With selected HDD AOC, supports 2x SAS or SATA3 (6Gbps) via backplane
• SAS or enterprise SATA HDD only recommended

System CoolingFans

• 4x 8cm Heavy duty fans with optimal cooling zone

Power Supply1620W high-efficiency redundant power supplyAC Input

• 1000W: 100-120 V, 50-60 Hz, 12-10 Amp
• 1200W: 120-140 V, 50-60 Hz, 12-10 Amp
• 1620W: 180-240 V, 50-60 Hz, 10.5-8 Amp

DC Output
+5V standby

• 4 Amp

DC Output
+12V

• 1000W: 84 Amp
• 1200W: 100 Amp
• 1620W: 135 Amp

Certification
Platinum Certified
[Test Report]PC Health MonitoringCPU

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
• 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V

FAN

• Cooling zone

Temperature

• Monitoring for CPU and chassis environment

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

Parts List - (Items Included)Part NumberQtyDescriptionMotherboard / X9SCD+-HF Motherboard
3U ChassisCable 1CBL-0218L111.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USBHeatsink / RetentionSNK-P0047PS+8Customized Passive CPU Heat Sink for Micro Cloud Series ServersBackplaneBPN-SAS-938H1Backplane for SC938, 16x 3.5" SAS/SATAMicro-LP NICAOC-CG-i2-O-P8AOC-CG-I2-O-PRiser CardRSC-RR1U-E8-O-P8RSC-RR1U-E8 (Rev 3.10)Mounting RailsMCP-290-00053-0N1Rail set, quick/quick, default for 2,3U 17.2"WPower SupplyPWS-1K62P-1R21620W REDUNDANT POWER MODULE
