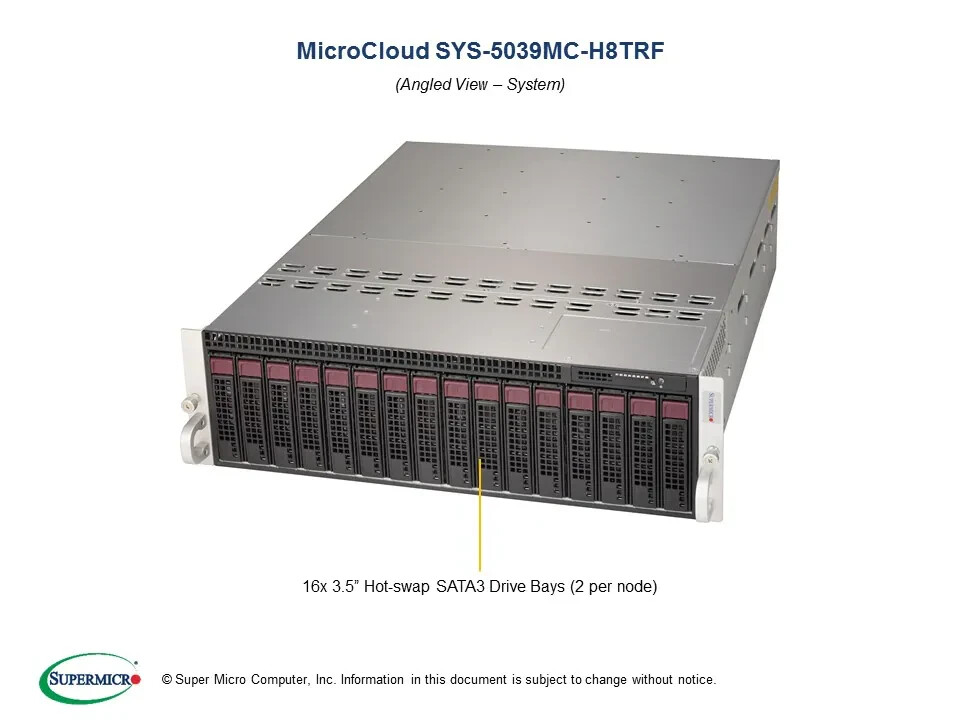

Supermicro SYS-5039MC-H8TRF MicroCloud Barebones Server 8-Node NEW IN STOCK
5 Year Warranty
SpecificationsProduct SKUsSuperServer

• SYS-5039MC-H8TRF (Black)

MotherboardSuper X11SCD-FProcessor (per Node)CPU

• Single Socket H4 (LGA 1151),
  CPU TDP support up to 95W
• Support Intel® Xeon® processor E-2100 / E-2200 series, 8th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors

Cores

• 8 cores max.

Note

• BIOS 1.0b or above is required to support Intel® Xeon® processor E-2200 series

System Memory (per Node)Memory Capacity

• 4 DIMM slots
• Up to 128GB Unbuffered ECC
• Up to DDR4-2666MHz

Memory Type

• 2666/2400/2133MHz ECC DDR4 SDRAM

DIMM Sizes

• 32GB, 16GB, 8GB, 4GB

On-Board Devices (per node)Chipset

• Intel® C246 chipset

SATA

• SATA3 (6Gbps) via Intel® C246 controller; RAID 0, 1, 5, 10

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM over LAN support
• ASPEED AST2500 BMC

Network Controllers

• Dual LAN with Intel® i350

Graphics

• Aspeed AST2500 graphics

Input / Output (per node)SATA

• 2 SATA3 (6Gbps) ports

LAN

• 2 RJ45 Gigabit Ethernet LAN ports
• 1 RJ45 Dedicated IPMI LAN port

System BIOSBIOS Type

• UEFI 128Mb

BIOS Features

• ACPI 1.0 / 2.0 / 3.0 / 4.0
• APM 1.2
• DMI 2.3
• Hardware BIOS Virus protection
• PCI 2.3
• Plug and Play (PnP)
• RTC (Real Time Clock) Wakeup
• SMBIOS 2.7.1
• UEFI 2.3.1
• USB Keyboard support

Front Window (each node)Switch

• Power / UID

ChassisForm Factor

• 3U

Model

• 5.21" (132.5 mm)

Width

• 17.26" (438.4 mm)

Depth

• 23.2" (589 mm)

Package

• 16.1" (H) x 28.35" (W) x 42.36" (D)

Weight

• Net Weight: 62.2lbs (28.21kg)
• Gross Weight: 88lbs (39.92kg)

Color

• Black

Expansion Slots (per Node)Micro-LP

• 1 PCI-E 3.0 x8 LP slot
• 1 Micro-LP slot (MicroLP upgradable)

M.2

• M.2 Interface: 2 PCI-E 3.0 x4
• M.2 Form Factor: 2280, 22110
• M.2 Key: M-Key

Drive Bays (per node)Internal

• 2x 3.5" SATA3 drives or
  2x 2.5" SATA3 w/ optional kits

System CoolingFans

• 4x 8cm Heavy duty fans with optimal cooling zone

Power Supply (76mm Width)2000W Titanium Redundant Power Supplies with PMBus and Reverse AirflowTotal Output Power

• 1000W: 100 – 127Vac
• 1800W: 200 – 220Vac
• 1980W: 220 – 230Vac
• 2000W: 230 – 240Vac
• 2000W: 200 – 240Vac (UL/CUL only)

Dimension
(W x H x L)

• 76 x 40 x 336 mm

Input

• 1000W: 100-127 Vac / 12.5-9.5 A / 50-60 Hz
• 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
• 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz
• 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz
• 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)

+12V

• Max: 83.3A / Min: 0A (100Vac-127Vac)
• Max: 150A / Min: 0A (200Vac-220Vac)
• Max: 165A / Min: 0A (220Vac-230Vac)
• Max: 166.7A / Min: 0A (230Vac-240Vac)
• Max: 166.7A / Min: 0A (200-240 Vac)
  (UL/cUL only)

+5Vsb

• Max: 1A / Min: 0A

Output Type

• 27 Pairs Gold Finger Connector

Certification Titanium Level
[Test Report]PC Health MonitoringCPU

• Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
• 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V

FAN

• Cooling zone

Temperature

• Monitoring for CPU and chassis environment

Operating Environment / ComplianceRoHS

• RoHS Compliant

Environmental Spec.

• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)

Parts ListParts List - (Items Included)
Part Number
Qty
Description
Motherboard / ChassisMBD-X11SCD-F
CSE-938NH-R2K04BP8
1Super X11SCD-F Motherboard
3U ChassisAdd-on Card / ModuleAOC-CGP-I2-P8AOC-CGP-I2-O-PAdd-on Card / ModuleAOM-BPN-938NH-P1AOM-BPN-938NH, Backplane module for 8-node Microcloud system, 16xU.2, 2 per node, Dual PSU, Management LAN switch, chassis node ID.,HF,RoHSAdd-on Card / ModuleAOM-LAN-MC8-P1AOM-LAN-MC8, LAN front panel module for 8-node Microcloud system,HF,RoHSCable 1CBL-0218L1USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWGCable 2CBL-PWCD-05782PWCD,US,IEC60320 C14 TO C13,3FT,14AWGRiser CardRSC-RR1U-E168RSC-RR1U-E16 with PIC-E x16 outputHeatsink / RetentionSNK-P1041V81U Proprietary Passive CPU Heat Sink for 6U 10-blade Microblade Series Servers*Power SupplyPWS-2K04A-1R2AC-DC 2000W, Titanium Level, Redundancy, 1U, PMBus 1.2, +12V/+5Vsb, 360x76x40mm,HF,RoHS/REACH*Add-on Card / PDB module for 8-node Microcloud system,HF,RoHS*Add-on Card / PDB module for 8-node Microcloud system,HF,RoHS*Cable 3CBL-0355L2ETHERNET,CAT5E,RJ45 W/BOOT,GREEN,UTP,2FT (60CM),24AWG*Cable 4CBL-0458L120 cm 30 pin to 30 pin Front control cable with tube. 28AWG*Cable 5CBL-CDAT-06621CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG*FAN 1FAN-0194L4480x80x38 mm, 13.5K RPM Cooling Fan for 3U8N Microcloud Serie*Drive Tray(s)MCP-220-00094-0B16Black gen 6.5 hot-swap 3.5 inch HDD Tray*Control BoardMCP-280-93801-0B1Control panel module*Rail SetMCP-290-00057-0N1Rail set, quick/quick, default for 4U 17.2"; W*Air ShroudMCP-310-93805-0B16Mylar air shroud for 2-DIMMs (quick install on DIMM latch) On-site installation is available for an additional fee. We also accept trade-in's of any systems or data center equipment that you may be trying to get rid of.
