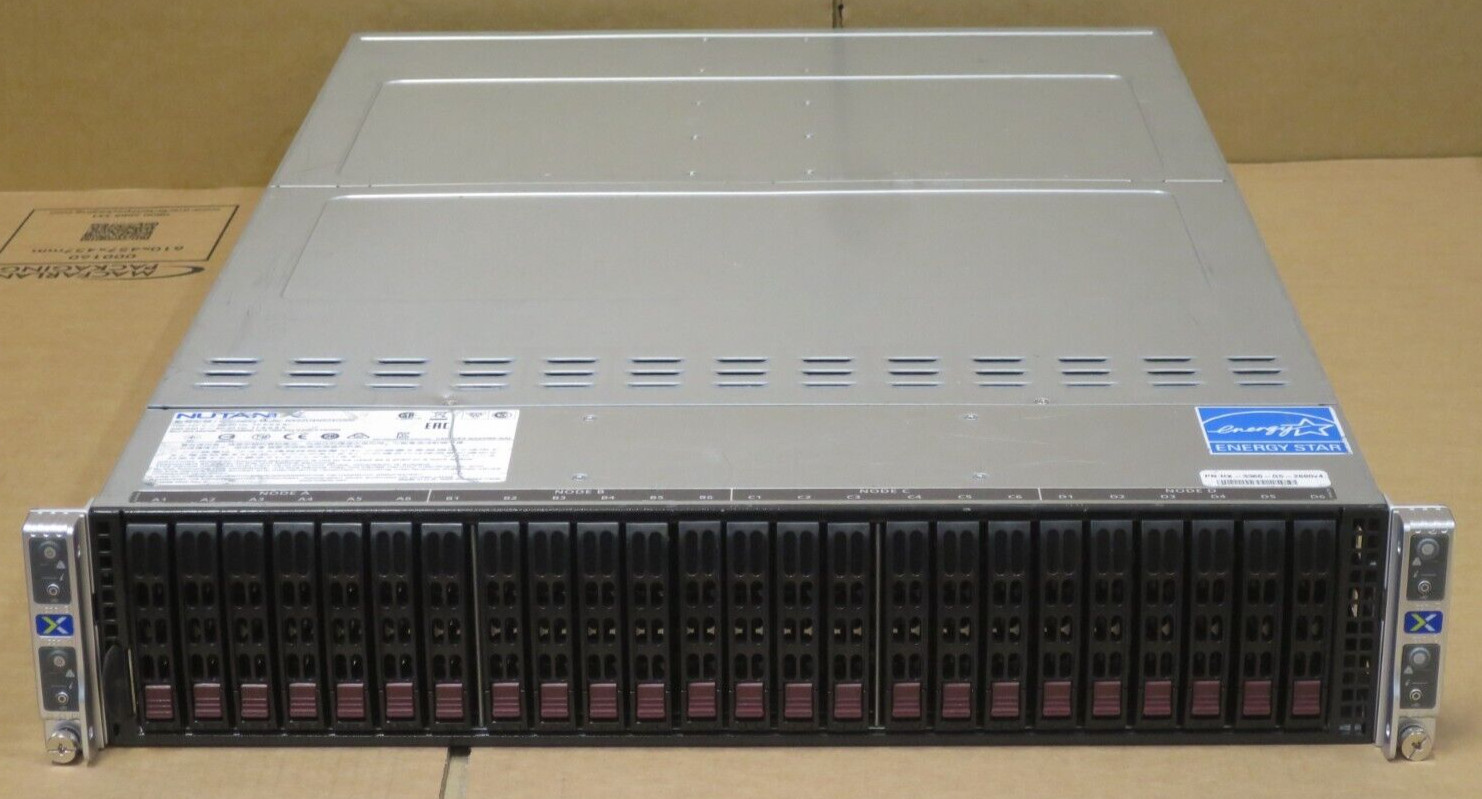

Supermicro SuperServer CSE-217 2U 4x X10DRT-P node servers CTO 0CPU 0MEM
Chassis P/N: CSE-217Node P/N: X10DRT-P
In Good Condition, Full Working OrderTested2 Years WarrantyBezel Included
CTO Server, no memory, no CPU, no HDD included - required in order to operate, we can quote to supply if required
Included:

• 1 x Supermicro SuperServer CSE-217 4-Node Server
• 24 x 2.5" SAS Bays with 24 x HDD/SSD caddies and screws
• Backplane: 24x SAS/SATA SSD/HDD Bays
• 2 x Power Supplies 2000W Power Supply PWS-2K04A-1R
• 4 x Server Nodeseach with:
• 2x heatsinks
• Motherboard - X10DRT-P
• Backplane Adapter - BPN-S3008L-L61P-NI22
• 1 x Riser Card - Motherboard specification:
  MBD-X10DRT-P
  • X10DRT-P
  Physical StatsForm Factor
  • Proprietary Twin
  Dimensions
  • 6.8" x 18.86" (17.27cm x 47.9cm)
  Processor/CacheCPU
  • Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
  • Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W
  Cores / Cache
  • Up to 22 cores † / Up to 55MB† cache
  Note
  • † BIOS version 2.0 or above is required
  Note
  • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
  System MemoryMemory Capacity
  • 2TB 3DS ECC RDIMM, DDR4-2133MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
  Memory Type
  • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
  DIMM Sizes
  • RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
  • LRDIMM: 32GB, 64GB
  • 3DS LRDIMM: 128GB
  Memory Voltage
  • 1.2V
  Error Detection
  • Corrects single-bit errors
  On-Board DevicesChipset
  • Intel® C612
  SATA
  • Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  AHCI SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
  SCU SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
  IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
  Network Controllers
  • Dual LAN with Intel® Ethernet Controller I350-AM2
    Single LAN with Virtual Machine Device Queues reduce I/O overhead
    Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)
  Graphics
  • Aspeed AST2400 BMC
  Input / OutputSATA
  • 10 SATA3 (6Gbps) port
  LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
  USB
  • 3 USB 3.0 ports (2 rear + 1 Type A)
  Video Output
  • 1 VGA port
  TPM
  • 1 TPM Header
  Expansion SlotsPCI-E
  • 1 PCI-E 3.0 x16,
  • 1 PCI-E 3.0 x8,
  • 1 PCI-E 3.0 x8 connector for SMC add-on cards,
  • 1 PCI-E 3.0 x16 connector for SMC add-on cards,
  • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram for details.)
  System BIOSBIOS Type
  • 128Mb SPI Flash EEPROM with AMI BIOS
  BIOS Features
  • Plug and Play (PnP)
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  ManagementSoftware
  • IPMI2.0, NMI, SuperDoctor® 5, Watchdog
  System Management Software
  • SPM
  • SUM
  • SSM
  • SuperDoctor 5
  Power Configurations
  • ACPI Power Management
  • Power-on mode for AC power recovery
  PC Health MonitoringVoltage
  • +12V, +3.3V, +5V, 3.3V standby, 6 Phase-switching voltage regulator, Memory Voltages, VBAT
  FAN
  • 2x 4-pin fan headers (up to 2 fans), 4 fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control
  Temperature
  • Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 4 Fan Connectors (2 fans on backplane), Thermal Monitor 2 (TM2) support, PECI
  LED
  • CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
  Other Features
  • RoHS
  Operating EnvironmentOperating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
  Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
  Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
  Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

  VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£1100 excluding VAT
  VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
