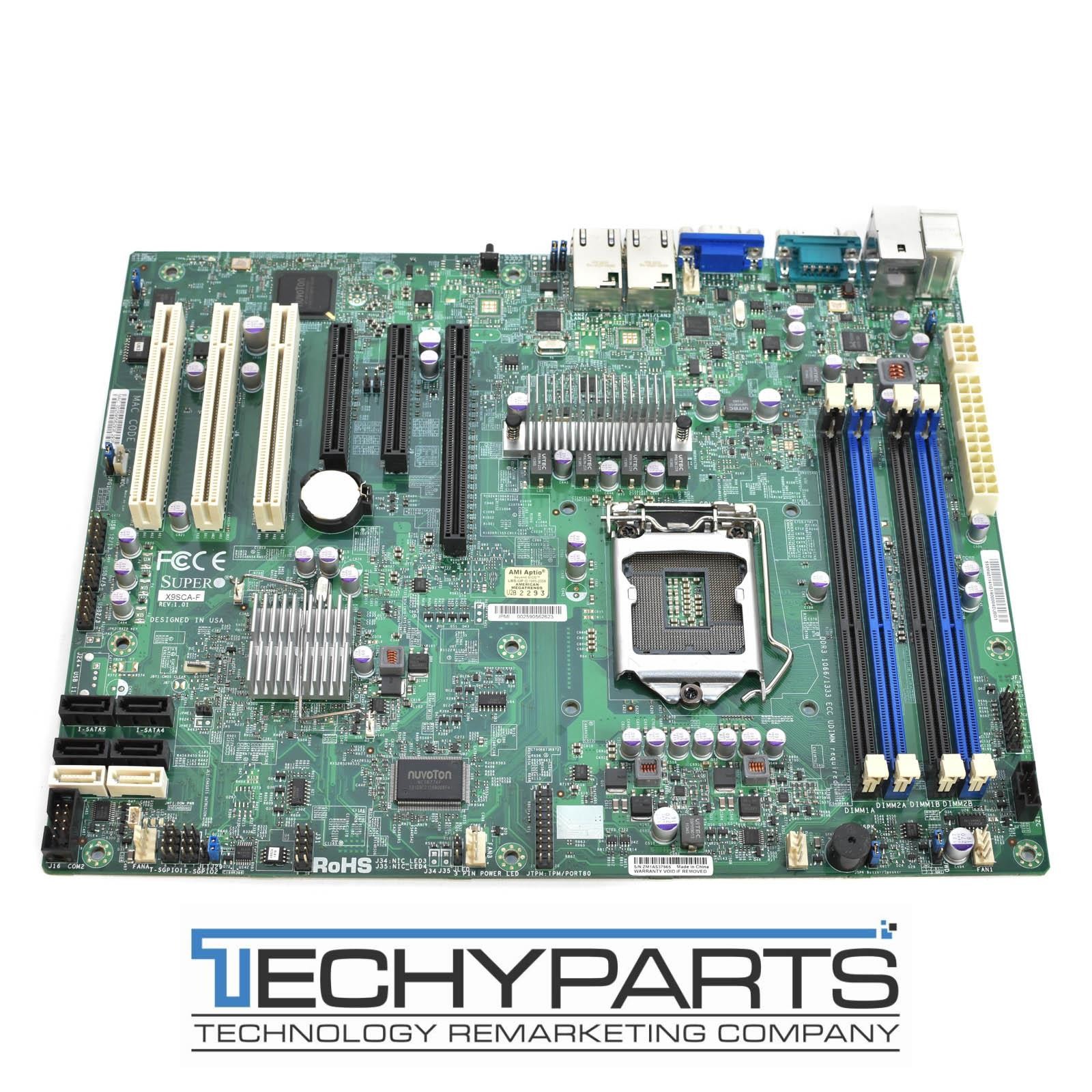

SIGN UP Supermicro X9SCA-F Intel C204 Socket LGA1155 ATX Xeon E3 Server Motherboard Product Description

Up for Sale is a genuine SUPERMICRO X9SCA-F motherboard. This SUPERMICRO X9SCA-F motherboard is in excellent condition and ready to be redeployed. All of our motherboards go through an extensive testing and refurbishing process which ensures 100% satisfaction to our customers.

Supermicro P/N: X9SCA-F

Item Condition: Used, tested, guaranteed working. Sold as pictures, no other accessories are included. IO shield not included.

30-day warranty!

Specifications:

MBD-X9SCA-F -B

• X9SCA-F (Bulk Pack)

Physical Stats Form Factor

• ATX

Dimensions

• 12" x 9.6", (30.48cm x 24.4 cm)

Processor/Cache CPU

• Intel Xeon processor E3-1200 & v2 series, Intel 2nd Gen and 3rd Gen Core i3, Intel Pentium and Celeron processors *** *
• Socket H2 (LGA 1155)

System Memory Memory Capacity

• 4x 240-pin DDR3 DIMM sockets
• Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)

Memory Type

• 1333/1600MHz*** ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

• 8GB, 4GB, 2GB, 1GB

Memory Voltage

• 1.5 V, 1.35V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices Chipset

• Intel C204 PCH chipset

SATA

• SATA 2.0 3Gb/s with RAID 0, 1, 5, 10
  SATA 3.0 6Gb/s with RAID 0, 1

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• Nuvoton WPCM450 BMC

Network Controllers

• Intel 82574L, 2x Gigabit LAN ports
• Virtual Machine Device Queues High efficient I/O overhead
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
• 1x Realtek RTL8201N PHY (dedicated IPMI)

VGA

• BMC integrated Matrox G200

Super I/O

• Nuvoton WPCM450RA0BX

Input / Output Serial ATA

• 6x SATA ports total (4x 3Gb, 2x 6Gb)

LAN

• 2x RJ45 Gigabit Ethernet LAN ports
• 1x RJ45 Dedicated IPMI LAN port

USB

• 8x USB 2.0 ports total
  (2x rear + 6x via header)

VGA

• 1x VGA port

Serial Port / Header

• 2x Fast UART 16550 serial port
  (one header and one rear port)

DOM

• 1x DOM (Disk on Module) power connector

TPM

• 1x TPM Header

OS Compatibility Please see OS Compatibility Chart on manufacturer's website Chassis ( Optimized for X9SCA-F ) 1U Chassis

• CSE-111LT-330CB
• CSE-111LT-360CB
• CSE-111T-560CB
• CSE-113MTQ-560CB
• CSE-113MTQ-563CB
• CSE-113MTQ-R400CB
• CSE-512-200B
• CSE-512-260B

Important Chassis Notes

• To support the new generation Intel Xeon processor-based motherboards, a Revision K chassis is recommended for most models.

Expansion Slots PCI-Express

• 1 (x16) PCI-E 3.0 slot***
• 2 (x4) PCI-E 2.0 (in x8) slots

PCI

• 3 PCI 32-bit slots

System BIOS BIOS Type

• 32Mb SPI Flash EEPROM with AMI BIOS

BIOS Features

• DMI (SMBIOS) 2.7
• ACPI 4.0
• PCI 2.3
• USB Keyboard support

Management Software

• IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
• SuperDoctor III
• Watch Dog
• NMI

Power Configurations

• ACPI / ACPM Power Management
• Main Switch Override Mechanism
• Power-on mode for AC power recovery
• Internal/External modem ring-on

PC Health Monitoring Voltage

• Monitors for CPU Cores, +1.8V, +3.3V, +5V, 12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
• 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V

FAN

• Total of 5 fan headers supporting up to 5 fans
• Five 4-pin fan headers
• 5x fans with tachometer status monitoring
• Status monitor for speed control
• Status monitor for on/off control
• Support 3-pin fans (w/o speed control)
• Low noise fan speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• CPU thermal trip support
• FC temperature sensing logic
• Thermal Monitor 2 (TM2) support
• PECI

LED

• CPU / System Overheat LED
• +5V Standby alert LED

Other Features

• Chassis intrusion detection
• Chassis intrusion header

* Per Intel's spec, for platforms using C202/C204 PCH:

1) Intel i5/i7 CPUs are not supported

2) Intel E3-12x5 series processors which have integrated graphics support are not recommended.

** Supermicro X9SCA-F motherboard is using a dedicated graphic from Matrox G200eW.

*** BIOS rev. 2.0 or above is needed to support new E3-1200 v2 CPUs, which supports PCI-E 3.0 & DDR3 1600.
