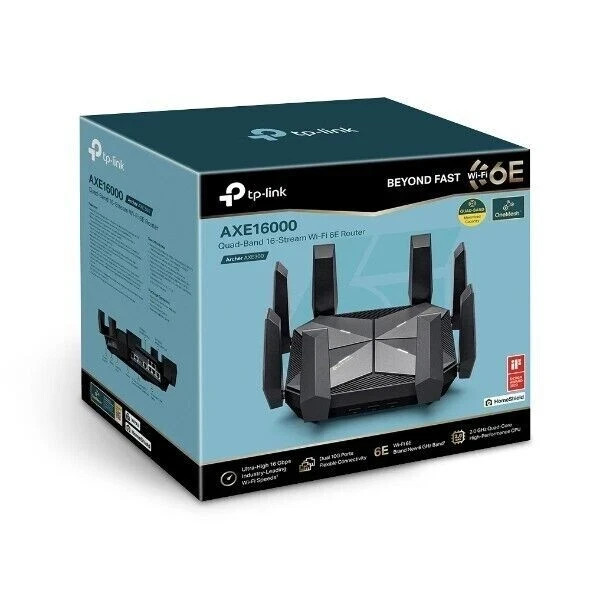

AXE16000 Quad-Band 16-Stream Wi-Fi 6E Router with Two 10G Ports
RETAIL VALUE (MSRP):$399.99

• Our Fastest Wi-Fi 6E and Wi-Fi 6 Router to Date: Up to 15.6 Gbps Quad-Band WiFi for faster browsing, streaming, and downloading, all at the same time.
• WiFi 6E Unleashed: The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.
• Two 10G Ports: 1×10 Gbps WAN/LAN port + 1× 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1×2.5 Gbps WAN/LAN port + 4×Gigabit LAN ports +1×USB3.0 portensure max flexibility and boosted throughput.
• Powerful CPU: 2.0 GHz quad-core processor and 1 GB RAM ensure fast transmission speeds and smooth operationof numerousdevices and applications.
• Maximized Coverage: 8× high-performance dual-band antennas along with Beamforming boost WiFi signals throughout your home.
• More Devices with Less Lag: OFDMA and MU-MIMO technology deliver data to multiple devices, simultaneously.
• TP-Link HomeShield: Enhanced security defends against the latest cyber threats.
  Specifications & Technical Details:

  WIRELESS

  Standards and Protocols• IEEE 802.11ax 6 GHz,
  • IEEE 802.11ax/ac/n/a 5 GHz,
  • IEEE 802.11ax/n/b/g 2.4 GHzWiFi SpeedsAXE16000
  • 6 GHz: 4804 Mbps (802.11ax)
  • 5 GHz-1: 4804 Mbps (802.11ax)
  • 5 GHz-2: 4804 Mbps (802.11ax)
  • 2.4 GHz: 1148 Mbps (802.11ax)
  WiFi Range4 Bedroom Houses8× Fixed High-Performance Antennas
  Multiple antennas form a signal-boosting array to cover more directions and large areas

  Beamforming
  Concentrates wireless signal strength towards clients to expand WiFi range

  High-Power FEM
  Improves transmission power to strengthen signal coverage

  4T4R
  Multiple streams in the same band strengthen the fault tolerance in transmissionWiFi CapacityVery HighQuad-Band
  Allocate devices to different bands for optimal performance

  4×4 MU-MIMO
  Simultaneously communicates with multiple MU-MIMO clients

  OFDMA
  Simultaneously communicates with multiple clients

  Airtime Fairness
  Improves network efficiency by limiting excessive occupation

  DFS
  Access an extra band to reduce congestion

  16 Streams
  Connect your devices to more bandwidthWorking Modes• Router Mode
  • Access Point Mode

  SECURITY

  Network Security• SPI Firewall
  • Access Control
  • IP & MAC Binding
  • Application Layer Gateway

  •HomeShield SecurityReal-Time IoT Protection
  Malicious Site Blocker
  Intrusion Prevention System
  DDoS Attack Prevention
  Home Network ScannerGuest Network• 1× 6 GHz Guest Network
  • 1× 5 GHz-1 Guest Network
  • 1× 5 GHz-2 Guest Network
  • 1× 2.4 GHz Guest NetworkVPN Server• OpenVPN Server
  • PPTP VPN Server
  • L2TP VPN ServerVPN Client• Open VPN Client
  • PPTP VPN Client
  • L2TP VPN ClientWiFi Encryption• WPA
  • WPA2
  • WPA3
  • WPA/WPA2-Enterprise (802.1x)

  HARDWARE

  Processor2.0 GHz Quad-Core CPUEthernet Ports• 1× 10 Gbps RJ45/SFP+ Combo WAN/LAN Port§
  • 1× 10 Gbps WAN/LAN Port§
  • 1× 2.5 Gbps WAN/LAN Port§
  • 4× 1 Gbps LAN PortsUSB Support1× USB 3.0 Port

  • Supported Partition Formats:
  NTFS, exFAT, HFS+, FAT32

  • Supported Functions:
  FTP Server
  Media Server
  Samba ServerButtons• Power On/Off Button
  • Wi-Fi On/Off Button
  • LED On/Off Button
  • WPS Button
  • Reset ButtonPower12 V ⎓ 5 A

  SOFTWARE

  Protocols• IPv4
  • IPv6Service KitsHomeShield
  OneMesh™OneMesh™ Supported
  Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

  Parental ControlsHomeShield Parental ControlsCustom Profiles
  Professional Content Filter Library
  Family Time
  Bedtime
  Off Time
  Time Rewards
  Family Online Time Ranking
  Pause the Internet
  Weekly and Monthly ReportsWAN Types• Dynamic IP
  • Static IP
  • PPPoE
  • PPTP
  • L2TPQuality of ServiceQoS by DeviceCloud Service• Auto Firmware Upgrade
  • TP-Link ID
  • DDNSNAT Forwarding• Port Forwarding
  • Port Triggering
  • DMZ
  • UPnPIPTV• IGMP Proxy
  • IGMP Snooping
  • Bridge
  • Tag VLANDHCP• Address Reservation
  • DHCP Client List
  • ServerDDNS• TP-Link
  • NO-IP
  • DynDNSManagement Features• Tether App
  • Webpage

  OTHER

  System RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

  Cable or DSL Modem (if needed)

  Subscription with an internet service provider (for internet access)
  CertificationsFCC, RoHSEnvironmentOperating Temperature: 0℃~40℃ (32℉ ~104℉)
  Operating Humidity: 10%~90% non-condensing

  TEST DATA

  WiFi Transmission PowerFCC: < 30 dBm (2.4 GHz), < 30 dBm (5 GHz), ≤ 25 dBm (6 GHz)WiFi Reception Sensitivity2.4 GHz:
  11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm
  11ax HE40 MCS0: -95dBm, 11ax HE40 MCS11: -64dBm

  5 GHz-1:
  11ax HE20 MCS0: -93dBm, 11ax HE20 MCS11: -62dBm
  11ax HE40 MCS0: -91dBm, 11ax HE40 MCS11: -60dBm
  11ax HE80 MCS0: -88dBm, 11ax HE80 MCS11: -57dBm
  11ax HE160 MCS0: -82dBm, 11ax HE160 MCS11: -52dBm

  5 GHz-2:
  11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -64dBm
  11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -62dBm
  11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -59dBm
  11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -53dBm

  6 GHz:
  11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -65dBm
  11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -62dBm
  11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -58dBm
  11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -53dBm

  PHYSICAL

  Dimensions (W×D×H)9.1 × 9.1 × 2.7 in
  (232 × 232 × 68 mm)Package Content• Wi-Fi Router Archer AXE300
  • Power Adapter
  • RJ45 Ethernet Cable
  • Quick Installation Guide
