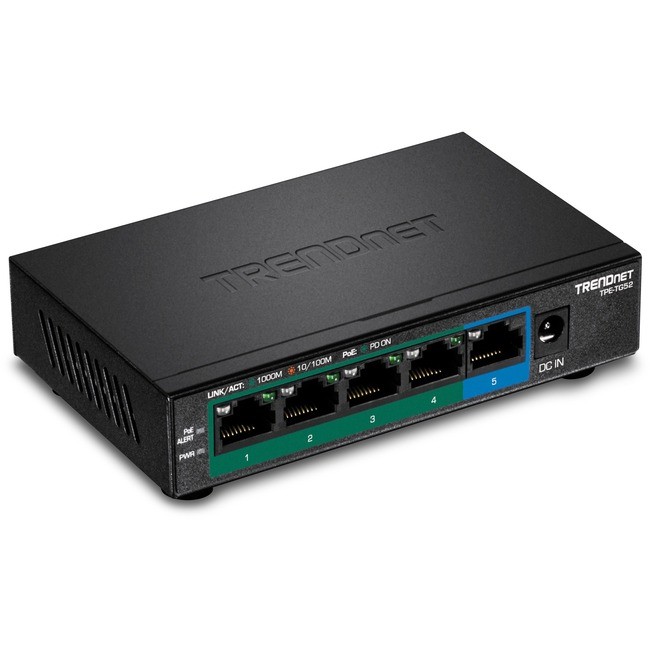

TRENDnet 5-Port Gigabit PoE+ Switch 32W PoE Switch TPETG52 Brand: TRENDnet UPC: 0710931162219 Mfr Part #: TPETG52
General Information
- DEVICE INTERFACE: 4 x Gigabit PoE+ ports; 1 x Gigabit port; LED indicators
- POE+ POWER BUDGET & SWITCH CAPACITY: 32 W PoE power budget supports up to 4 power over Ethernet devices and the 5-port gigabit PoE+ network switch provides 10Gbps switching capacity to support edge network installations
- COMPACT FANLESS DESIGN: With a compact and lightweight rugged metal housing design, this desktop switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation
- DATA TRANSFER RATE: Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex), Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex), Gigabit: 2000 Mbps (full duplex)
- OPERATING TEMPERATURE: This 5-port gigabit PoE+ network switch is rated with an operating temperature range of 0? - 40? C (32? - 104? F)
- IEEE and DSCP: IEEE 802.1p QoS and DSCP pass-through support
TRENDnet's 5-Port Gigabit PoE+ Switch, model TPE-TG52, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. This compact network switch features four gigabit PoE+ ports and one gigabit port, with a 32W total PoE power budget. The TPE-TG52 PoE+ switch allows you to network PoE devices, such as wireless access points, IP cameras, VoIP phones, IP video encoders, access controls, and more. It features a fanless design, and has a convenient option for wall mounting.
PoE+
A 32W PoE power budget supports up to four Power over Ethernet devices.
Gigabit Ports
Five gigabit ports provide a 10Gbps switching capacity to support edge network installations.
Compact Design
Compact, lightweight, and fanless, this switch is designed for desktops and quiet environments.
FEATURES | PoE+
Supplies up to 30 watts of PoE power per port with a 32W power budget
Gigabit Ports
4 x Gigabit PoE+ Ethernet ports, 1 x Gigabit port
Compact Design
With a compact and lightweight metal housing design, this switch is wellsuited for desktop installations
Switching Capacity
10Gbps switching capacity
Jumbo Frame
Sends Jumbo Frames (up to 9KB) for increased performance
Fanless
Fanless design is ideal for quiet environments that require silent operation
LED Indicators
LED indicators convey port status
- NDAA / TAA compliant (U.S. and Canada only)
More from the Manufacturer
?
Media & Performance Media Type Supported: Twisted Pair Ethernet Technology: Gigabit Ethernet Network Technology: 10/100/1000Base-T
?
Network & Communication Layer Supported: 2 Networking Standards: IEEE 802.3 Networking Standards: IEEE 802.3u Networking Standards: IEEE 802.3ab Networking Standards: IEEE 802.3x Networking Standards: IEEE 802.3p Networking Standards: IEEE 802.3af Networking Standards: IEEE 802.3at Networking Standards: IEEE 802.1p
?
Power Description PoE (RJ-45) Port: Yes PoE Budget: 32 W Frequency: 50 Hz Frequency: 60 Hz Power Source: Power Adapter Power Consumption: 36 W
?
Physical Characteristics Product Material: Metal Form Factor: Wall Mountable Form Factor: Compact Height: 1" Width: 4.8" Depth: 3" Weight (Approximate): 8.68 oz
5-Port Gigabit PoE+ Switch Quick Installation Guide Power Adapter (54V DC, 0.7A Country of Origin: Taiwan TAA Compliant: Yes
?
Warranty Limited Warranty: Lifetime Store Policies
