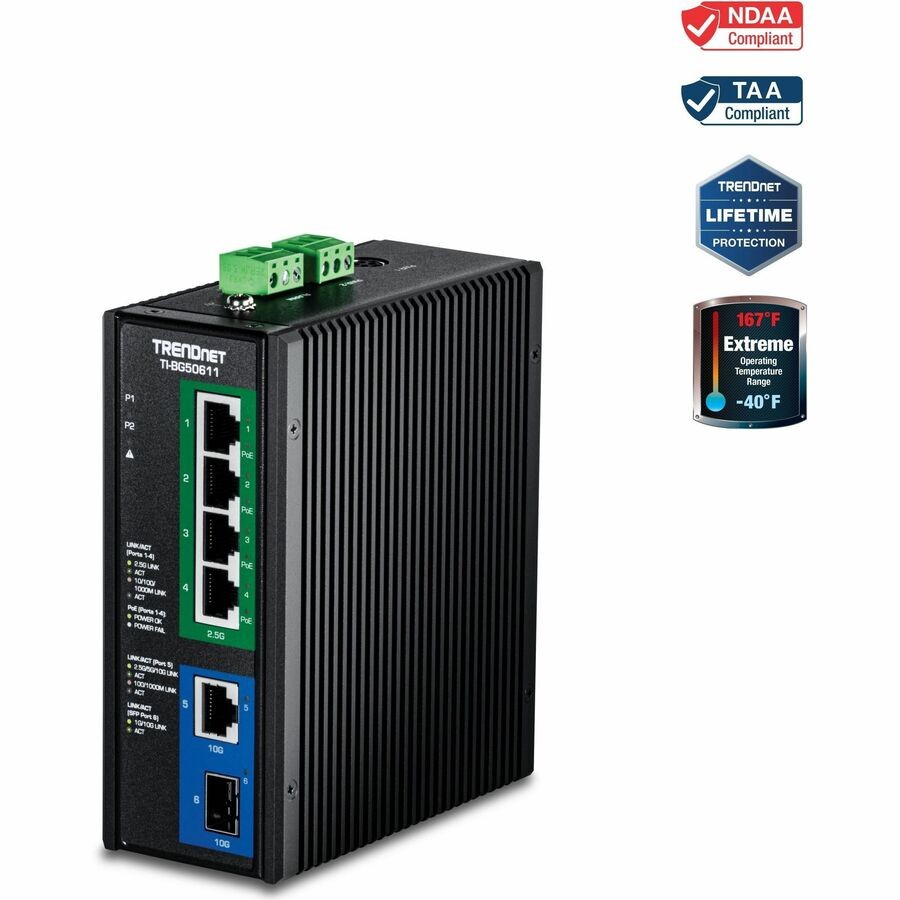

TRENDnet 6-Port Industrial 2.5G PoE++ DIN-Rail Switch with 10G PortsTI-BG50611Multi-Gigabit4 x 2.G PoE++ Ports 1 x 10G RJ-45 Port1 x 10G SFP+ PortLifetime Protection Black Brand: TRENDnet UPC: 0710931163162 Mfr Part #: TIBG50611

General Information

TRENDnet's 6-Port Industrial 2.5G PoE++ DIN-Rail Switch with 10G Ports, model TI-BG50611, delivers network connectivity to rugged environments, while saving you on installation costs and setup time using Power over Ethernet technology. The industrial multi-gigabit PoE++ switch features a rugged IP50 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). This hardened industrial PoE++ switch features four Ethernet 2.5G PoE++ ports, a 10G Ethernet port, and a 10G SFP+ port for longdistance fiber networking applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Multi-Gigabit PoE++ DIN-Rail Switch by delivering up to 95W per port of PoE power and data over existing Ethernet cables. Fast PoE minimizes wait time for PoE devices by providing power immediately at boot up. With PoE technology inside this industrial multigigabit PoE++ switch, users only need one cable to deliver both data and power. Easily network PoE devices to this hardened industrial PoE++ switch, such as high-power wireless access points, IP cameras, VoIP phone systems, IPTV decoders, and access controls.

PoE++

A 240W PoE power budget supports up to four Power over Ethernet devices with PoE (15.4W), PoE+ (30W), or PoE++ (95W) power.

Multi-Gigabit

Equipped with four 2.5G Ethernet ports, one 10G Ethernet port, and one 10G SFP+ port that provides highspeed network connection.

Industrial Hardened Design

Rugged IP50 enclosure with a high degree of vibration and shock resistance, ESD/EMI/surge protection, and a wide operating temperature range of -40° - 75° C (-40°- 167° F).

FEATURES | PoE Power Budget

A 240W PoE power budget on this multi-gig DIN-Rail PoE++ switch supports up to four Power over Ethernet devices with PoE (15.4W), PoE+ (30W), or PoE++ (95W) power.

Fast PoE

With Fast PoE, the industrial multigig PoE++ switch provides power to the PoE device within a few seconds of the switch receiving power. No need to wait for the switch to fully boot up.

Network Ports

4 x 2.5G PoE++ ports, 1 x 10G RJ-45 port, and 1 x 10G SFP+ port.

DIN-Rail/Wall Mounts

Metal enclosure with included DIN-Rail and wall mount hardware.

IP50 Housing

IP50 rated metal housing protects the industrial multi-gigabit PoE++ switch from most environments with dust particles.

Switching Capacity

60Gbps switching capacity.

Redundant Power

Dual power inputs for redundancy with overload current protection (power supplies sold separately, models TI-S48048, TI-S24052, 48VDC3000).

Alarm Relay

Industrial PoE++ switch's alarm relay is triggered by power failure of primary and/or redundant power.

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB), for increased performance.

Rated for Extreme Environments

Rugged IP50 rated enclosure designed to withstand a high degree of vibration and shock, and operate within a wide temperature range of -40° - 75° C (- 40° - 167° F) for harsh environments.

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6).

Technical InformationFeatures:IP30Features:IP40

Media & PerformanceMedia Type Supported:Twisted PairMedia Type Supported:Optical FiberEthernet Technology:2.5 Gigabit EthernetEthernet Technology:10 Gigabit EthernetNetwork Technology:2.5GBase-TNetwork Technology:10GBase-TNetwork Technology:10GBase-X

I/O ExpansionsTotal Number of Expansion Slots:1Expansion Slot Type:SFP+Number of SFP+ Slots:1

Network & CommunicationLayer Supported:2Networking Standards:IEEE 802.3Networking Standards:IEEE 802.3uNetworking Standards:IEEE 802.3abNetworking Standards:IEEE 802.3zNetworking Standards:IEEE 802.3xNetworking Standards:IEEE 802.3aeNetworking Standards:IEEE802.3afNetworking Standards:IEEE 802.3anNetworking Standards:IEEE 802.3atNetworking Standards:IEEE 802.3btNetworking Standards:IEEE 802.3bzPoE Budget:240 W

Management & ProtocolsManageable:No

Power DescriptionPoE (RJ-45) Port:YesInput Voltage:48 V DCInput Voltage:57 V DCInput Voltage:120 V ACInput Voltage:230 V ACFrequency:50 HzFrequency:60 HzPower Source:Power SupplyPower Source:PoE++Power Source:AC/DCPower Source:Power AdapterRedundant Power Supply Supported:YesNumber of Power Supplies Supported:2Power Consumption:10.20 WPlug/Connector Type:Terminal Block

Physical CharacteristicsProduct Material:MetalForm Factor:DIN Rail MountableForm Factor:Wall (Approximate):1.39 lb

6-Port Industrial 2.5G PoE++ DIN-Rail Switch with 10G Ports

Quick Installation Guide

Removable Terminal Blocks

DIN-Rail And Wall Mount Access PointApplication/Usage:IP CameraApplication/Usage:VoIP PhoneCountry of Origin:Taiwan
