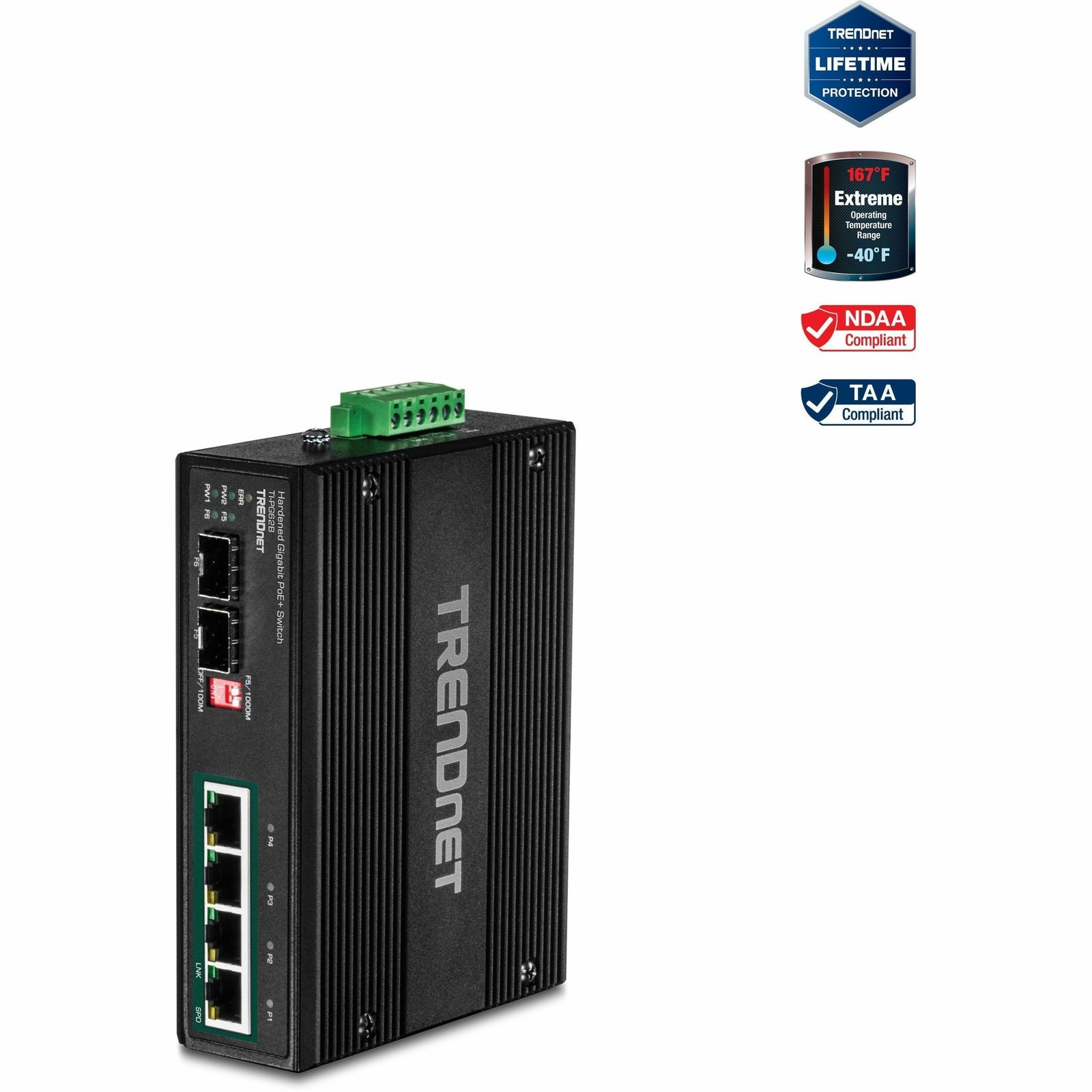

TRENDnet 6-Port Industrial Gigabit PoE+ DIN-Rail Switch 12 - 56 V (ti-pg62b) TRENDnet 6-Port Industrial Gigabit PoE+ DIN-Rail Switch 12 - 56 V (ti-pg62b)
International Customers: All electronic products are packaged for sale in the US with US voltage.
NDAA Compliant: Yes
Package Contents: 6-Port Industrial Gigabit PoE+ DIN-Rail Switch 12 - 56 V Quick Installation Guide Removable Terminal Block DIN-rail and Wall Mount Kit
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.
TRENDnet's TI-PG62B is a reliable IP30 unmanaged hardened DIN-rail PoE+ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE+ ports, two dedicated SFP slots and a 12 Gbps switching capacity. Dual redundant 12 - 56 VDC power inputs and a power failure alarm relay.
PoE Power
A 60 - 120 W PoE+ power budget supplies up to four Power over Ethernet devices.
Fault Tolerance
Features dual redundant 12 - 56 VDC power inputs with output alarm relay.
Industrial Hardened Design
Equipped with a rugged IP30 rated housing designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate within a wide temperature range of -40 - 75° C (-40 - 167° F).
Network Ports
4 x Gigabit PoE+ ports and 2 x dedicated SFP slots
DIN-Rail / Wall Mounts
IP30 rated metal enclosure with included DIN-rail and wall mount hardware
Switching Capacity
12 Gbps switching capacity
Redundant Power
Dual redundant power inputs with overload current protection (power supply sold separately models: (model: TI-S12048)
Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance
Extreme Temperatures
Industrial switch is rated for an operating temperature range of -40 - 75 °C (-40 - 167 °F)
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point
Grounding point protects equipment from external electrical surgesPackage Contents:
- 6-Port Industrial Gigabit PoE+ DIN-Rail Switch 12 - 56 V
- Quick Installation Guide
- Removable terminal block
- DIN-rail and wall mount kit
SpecificationManagement & ProtocolsManageableNoPhysical CharacteristicsForm Factor
Weight (Approximate)2.09 WarrantyLifetimeInterfaces/PortsUplink PortNoStack PortNoPort/Expansion Slot Details
- 4 x Gigabit Ethernet Network
- 2 x Gigabit Ethernet Expansion Slot
Total Number of Network Ports6ModularYesI/O ExpansionsTotal Number of Expansion Slots2Shared SFP SlotNoNumber of SFP Slots2Expansion Slot TypeSFPGeneral InformationBrand NameTRENDnetMarketing Information TRENDnet's 7-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG62B, is an industrial variable voltage switch with four gigabit PoE+ ports and a 120W PoE power budget. Users are able to connect four PoE+ devices to this industrial variable voltage PoE+ switch for high-speed connectivity to the network. The industrial variable voltage PoE+ switch is equipped with a rugged IP50 rated metal enclosure, and designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° - 75° C (-40° - 167° F) for industrial environments. Dual 12 - 56V DC power inputs on this industrial variable voltage switch provides power redundancy and failure alarm relay. DEVICE INTERFACE: 4 x Gigabit PoE+ Ports; 1 x Gigabit Port; 2 x Gigabit SFP Ports; 6-Pin Removable Terminal Block; LED Indicators; 14Gbps Switching Capacity; 60W PoE Power Budget TRENDnet LIFETIME PROTECTION: We stand by our products. The TI-PG62B 7-Port Industrial Gigabit PoE Switch is secured with Lifetime Manufacturer Protection from TRENDnet. NDAA + TAA COMPLIANT: With NDAA and TAA compliant network switches, you can plan and install the networking solutions that government customers demand today. (U.S. and Canada only) RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your needs during normal business hours. We take pride in being there for our customers. POE+ POWER: Maximum up to 60W @ 12V; 120W @ 24 - 56V, Up to 30W of power per port and data over a single Ethernet cable to PoE devices INDUSTRIAL HARDENED DESIGN: Equipped with a rugged IP50 rated housing, designed to withstand a high degree of vibration and shock, and operate within an extreme temperature range of -40° - 75° C (-40° - 167° F). DIN RAIL & WALL MOUNTS: IP50 rated metal enclosure on the industrial switch with included DIN-Rail mount and wall mount hardware POWER SUPPLY SOLD SEPARATELY: Use this industrial switch with the compatible power supply Model TI-S15052 (Sold Separately) FAULT TOLERANCE: The industrial Ethernet switch features dual power inputs to provide redundant power with overload current protection. EASY INSTALLATION: No configuration needed, simply connect network devices to the industrial Ethernet switch with an intuitive guided setup GROUNDING POINT: The industrial switch features a grounding point to protect equipment from external electrical surges More from the Manufacturer Product TypeEthernet SwitchProduct Name6-Port Industrial Gigabit PoE+ DIN-Rail Switch 12 - 56 VManufacturerTRENDnetManufacturer Part NumberTI-PG62BProduct ModelTI-PG62BMedia & PerformanceEthernet TechnologyGigabit EthernetMedia Type Supported
- Twisted Pair
- Optical Fiber
Network Technology
