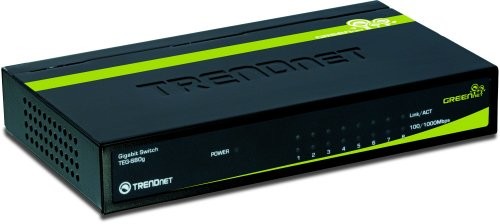

TRENDnet 8-Port Unmanaged Gigabit GREENnet Desktop Metal Switch TRENDnet 8-Port Unmanaged Gigabit GREENnet Desktop Metal Switch

International Customers: All electronic products are packaged for sale in the US with US voltage.

NDAA Compliant: Yes

Package Contents: 8-Port Gigabit GREENnet Mini Switch Quick Installation Guide Power adapter (5V, 1A)

Certifications & Standards: CE FCC LVD

TAA Compliant: Yes

Application/Usage: Network

Country of Origin: Taiwan

Product Description

This item is brand-new, factory sealed.

Specifications

• Mfr Part Number: TEG-S80G
• Features:
• 8x 10/100/1000Mbps Auto-negotiation, Auto-MDIX Gigabit Ports
• GREENnet technology reduces power consumption
• Store-and-Forward switching architecture with non-blocking wire-speed performance
• IEEE 802.3x Flow Control for full-duplex mode
• Back pressure Flow Control for half-duplex mode
• Integrated address look-up engine with 4K absolute MAC address table and 128KBytes RAM data buffering
• Operates and maximizes packet filtering and forwarding rate
• Jumbo Frame support up to 9612Bytes
• Sturdy metal housing
• Diagnostic LEDs and Plug & Play
• LAN Standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x Flow Control
• Network Media:
• Ethernet: Cat. 3,4,5, up to 100m
• Fast Ethernet: Cat. 5, up to 100m
• Gigabit: Cat. 5, 5e, 6, up to 100m
• Protocol: CSMA / CD
• Topology: Star
• LAN Port: 8x 10/ 100/ 1000 Mbps Auto Negotiation, Auto-MDIX RJ-45 Ports
• Address Table: 4K entries per device
• Data Transfer Rate:
• Ethernet: 10 / 20 Mbps (Half/Full-Duplex)
• Fast Ethernet: 100 / 200 Mbps (Half/Full-Duplex)
• Gigabit Ethernet: 2000 Mbps (Full-Duplex)
• Data RAM buffer: 128 KB
• Diagnostic LEDs: Power, Link/ACT, 100Mbps, 1000Mbps
• Power Consumption: 5 Watts (Max)
• Certifications: FCC, CE
• Power Adapter: 7.5V DC, 1A external power adapter
• Dimensions (WxDxH): 6.7 x 1.1 x 3.86 inch / 171 x 28 x 98 mm
• Weight: 15.9 oz / 450 g

SpecificationManagement & ProtocolsManageableNoPower DescriptionPower SourcePower AdapterFrequency

• 50 Hz
• 60 Hz

Input Voltage

• 120 V AC
• 230 V AC

Power Consumption3.20 WPhysical CharacteristicsProduct MaterialMetalForm Factor

• Wall (Approximate)6.21 WarrantyLifetimeInterfaces/PortsNetwork (RJ-45)YesPort/Expansion Slot Details8 x Gigabit Ethernet NetworkTotal Number of Network Ports8Token Ring PortNoLRE PortNoNumber of Network (RJ-45) Ports8General InformationBrand NameTRENDnetMarketing InformationThe 8-Port Gigabit GREENnet Mini Switch, model TEG-S80g, provides high-bandwidth performance, ease-of-use, and reliability, all from a tiny and durable metal enclosure, while reducing power consumption. GREENnet™ technology automatically adjusts power consumption as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement. This space-saving metal mini switch is designed to fit into any desktop setup, and is small enough to fit into your pocket. It's ideal for both a minimalist desk setup or a desk packed with gear. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 16Gbps with full-duplex mode. Integrate this sturdy mini switch for reliable high-speed network connectivity. DEVICE INTERFACE: 8 x Gigabit Ports; LED Indicators; Wall Mountable LIFETIME PROTECTION -We stand by the quality of our products. The TEG-S80G 8-Port Gigabit GREENnet Mini Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only) NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only) POCKET SIZED HOUSING: The industry leading mini switch design is only 4.96 x 2.04 x 0.94 inches, which allows for maximum space saving. GIGABIT SPEEDS: Eight gigabit ports provide high-speed network connections to devices and a 16Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks. ENERGY SAVINGS: GREENnet technology automatically adjusts power consumption as needed, resulting in substantial energy savings. No management or setup required. EASY INSTALLATION: No configuration needed, simply connect network devices to this 8 port gigabit switch WALL MOUNTABLE DESIGN: The metal network switch features a convenient wall mountable design for greater installation flexibility FANLESS: Well suited for quiet environments that require silent operation while lowering energy consumption and eliminating operating noise More from the Manufacturer Product TypeEthernet SwitchProduct Name8-Port Gigabit GREENnet Mini SwitchManufacturerTRENDnetManufacturer Part NumberTEG-S80GProduct ModelTEG-S80gProduct LineGREENnetMedia & PerformanceEthernet Technology
  • Gigabit Ethernet
  • Fast Ethernet
  Media Type SupportedTwisted PairNetwork Technology10/100/1000Base-TTitleProduct TitleTRENDnet 8-Port Mini Gigabit Switch, TEG-S80g, GREENnet Technology, NDAA + TAA Compliant, Desktop Metal Ethernet Network Switch, 8 x Gigabit Ports, Fanless, Lifetime Protection, Black (TEGS80G)Network & CommunicationLayer Supported2Networking Standards
  • IEEE 802.3
  • IEEE 802.3x
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3az
