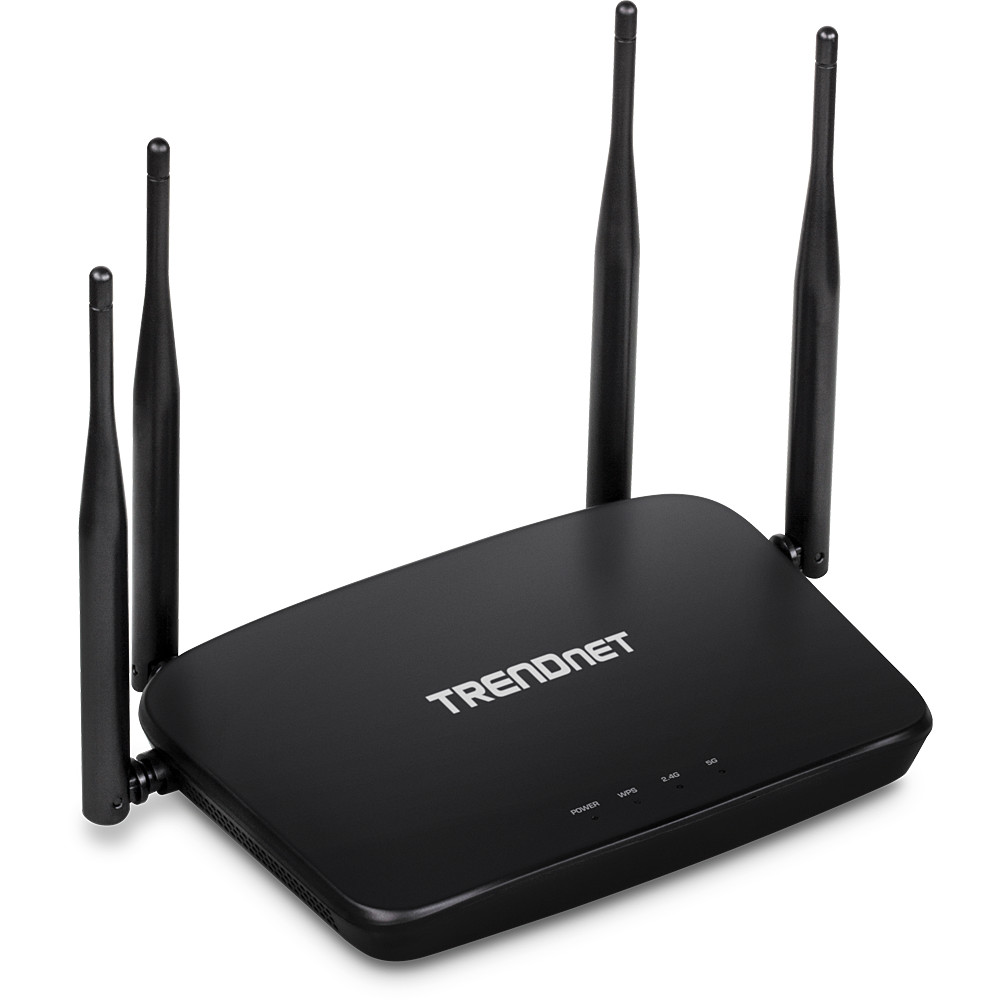

TRENDnet's AC1200 Dual Band WiFi Router, model TEW-831DR, is a high-speed wireless AC router designed to handle multiple HD streams in a busy connected home. This dual band wireless AC router creates two concurrent wireless networks—a high performance 867Mbps wireless AC network, and a 300Mbps wireless N network for wireless device connections. For added convenience, the wireless networks are pre-encrypted out of the box.

• AC1200: 867Mbps Wireless AC + 300Mbps Wireless N
• 1 x Gigabit WAN port
• 3 x 10/100Mbps LAN ports
• 4 x 5 dBi dual band antennas
• Internet bandwidth controls
• Pre-encrypted for your convenience
• One touch network connection with the WPS button
• LAN/WAN IPv6 Support
• Multi-User MIMO (MU-MIMO) support
• NDAA compliant

Standards

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.1Q
• IEEE 802.1p
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n (up to 300Mbps)*
• IEEE 802.11ac (up to 867Mbps)*

Device Interface

• 3 x 10/100Mbps LAN ports
• 1 x Gigabit WAN port
• WPS/Reset button
• LED indicators

Special Features

• IEEE 802.1Q tagged-based VLAN
• Bandwidth controls
• MU-MIMO
• 4 x 5 dBi dual band antennas
• IPv6 support
• Multi-Language interface: English, Spanish, French, German, Russian/Portuguese
• Pre-encrypted wireless network
• TR-069

Access Control

• Wireless encryption: 64/128-bits WEP; WPA/WPA2
• NAT, virtual server/port forwarding, port triggering, firewall traffic rules, DMZ host, UPnP/NAT-PMP, allow/deny ping on WAN interface
• PPTP/L2TP/IPsec VPN passthrough, FTP/TFTP/SIP/RTSP/IRC/H.323 passthrough
• MAC, IP, Domain name, Application filtering
• Wireless client isolation
• DoS prevention

Quality of Service

• WMM
• Management/Monitoring
• HTTP/HTTPS web-based management
• Internal system logging
• Manual firmware upgrade
• Backup and restore configuration
• Diagnostic tools: Built-in ping and traceroute network utilities

Frequency

• 2.412 – 2.472GHz
• 5.180 – 5.825GHz

Modulation

• 802.11b: CCK, DQPSK, DBPSK
• 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM
• 802.11n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM
• 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM

Media Access Protocol

• CSMA/CA with ACK

Antenna Gain

• 4 x 5 dBi Fixed Antenna

Wireless Output Power

• 802.11a: FCC: 16 dBm (max.) / IC: 16 dBm (max.)
• 802.11b: FCC: 18 dBm (max.) / IC: 18 dBm (max.)
• 802.11g: FCC: 17 dBm (max.) / IC: 17 dBm (max.)
• 802.11n (2.4GHz): FCC: 17 dBm (max.) / IC: 17 dBm (max.)
• 802.11n (5GHz): FCC: 15 dBm (max.) / IC: 15 dBm (max.)
• 802.11ac: FCC: 13 dBm (max.) / IC: 13 dBm (max.)

Receiving Sensitivity

• 802.11a: -75 dBm (typical) @ 54Mbps
• 802.11b: -90 dBm (typical) @ 11Mbps
• 802.11g: -72 dBm (typical) @ 54Mbps
• 802.11n (2.4GHz): -72 dBm (typical) @ 300Mbps
• 802.11n (5GHz): -72 dBm (typical) @ 867Mbps
• 802.11ac: -61 dBm (typical) @ 867Mbps

Wireless Channels

• 2.4GHz: FCC: 1–11
• 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165,

Power

• Input: 100 – 240V AC, 50 – 60Hz, 1A
• Output: 12V DC, 1A external power adapter
• Max. Consumption: 5.68W

Operating Temperature

• 0° – 40° C (32° – 104° F)

Operating Humidity

• Max. 90% style="box-sizing: border-box; margin-top: 0px; margin-bottom: 1rem; margin-left: -10px;">
• FCC
• IC

Dimensions (L x W x H)

• 239 x 155 x 30mm (9.4 x 6.1 x 1.18 in.)

Weight

• 228g (8 oz.)

Warranty

• 3 year

PACKAGE CONTENTS

• TEW-831DR
• Quick Installation Guide
• Network cable (0.9m / 3 ft.)
• Power adapter (12V DC, 1A)
