ADD COMPOSITE VIDEO AND AUDIO TO YOUR RF ONLY SYSTEMS!

This is a SOLDERLESS install. You don’t need to do anything but pop the top cover and clip the leads onto 5 locations and your done! I did all the work, the board leads are color coded and have IC clips soldered to them. Just follow the instructions depending on what model and board ofCOCOyou own and you are done. After building this I had it installed and running in my TRS-80 COCO 2 Model 26-3136 in under 5 minutes.

I have installed this MOD into my very early 1980 4KCOCO1 rev D board and its as simple as the instructions described!

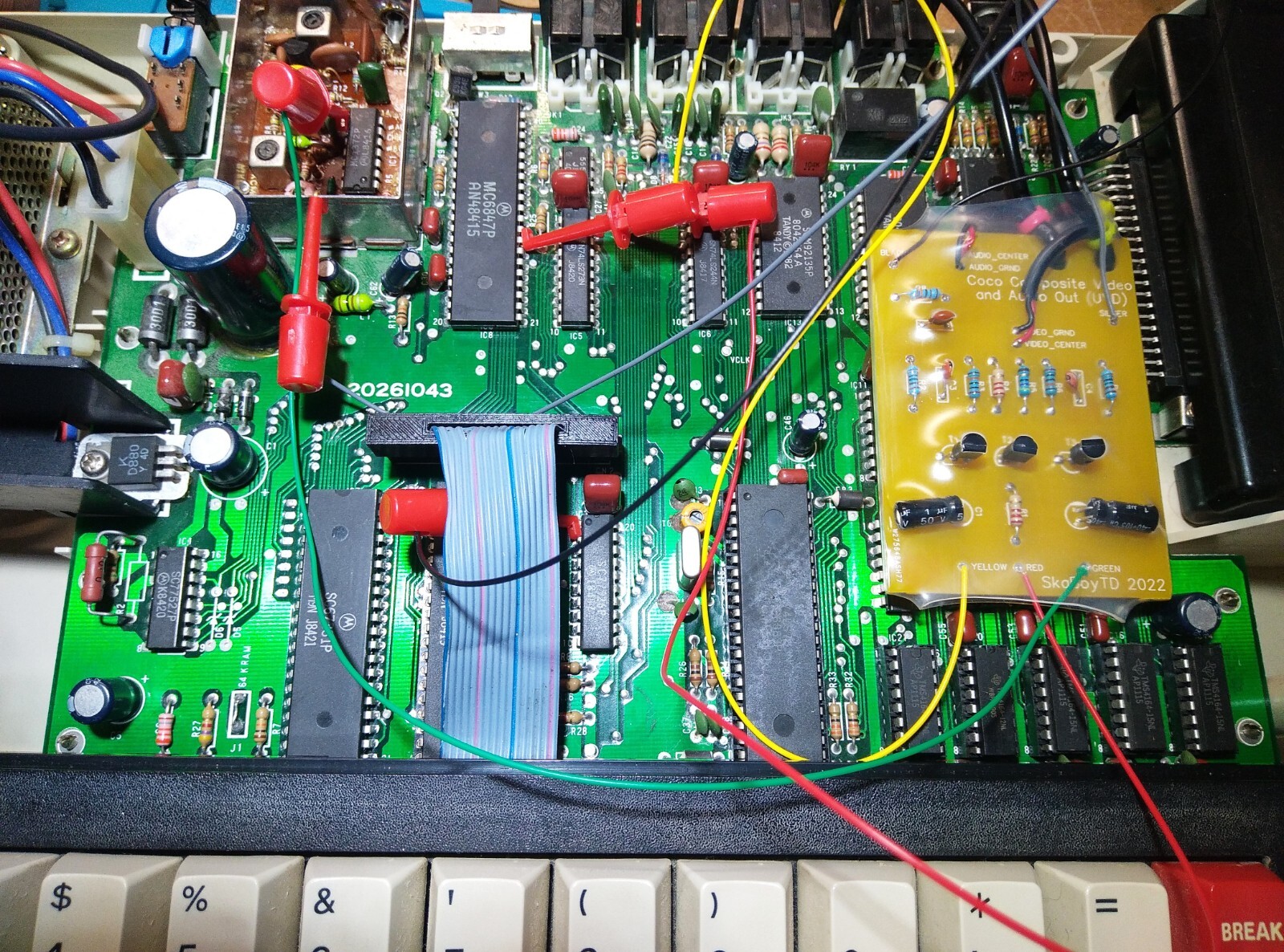

The board has thick Heat Shrink tubing to insulate it from making contact with anything. Just clip the 5 leads where they need to go and lay the UVD board anywhere you want. You can route it as I did in the photo. Drill holes or make changes as you see fit. Its your Computer do with it as you want but just remember Like I did, you don’t need to make any changes. Just pop it in and go with no modification to the system.

*****Instructions found here:

Ships USPS from TheUnited States!

I have been selling on for 25+ years with an excellent reputation in sales. Pleasecontact me with any questionsBEFOREmaking purchase.
