Overview

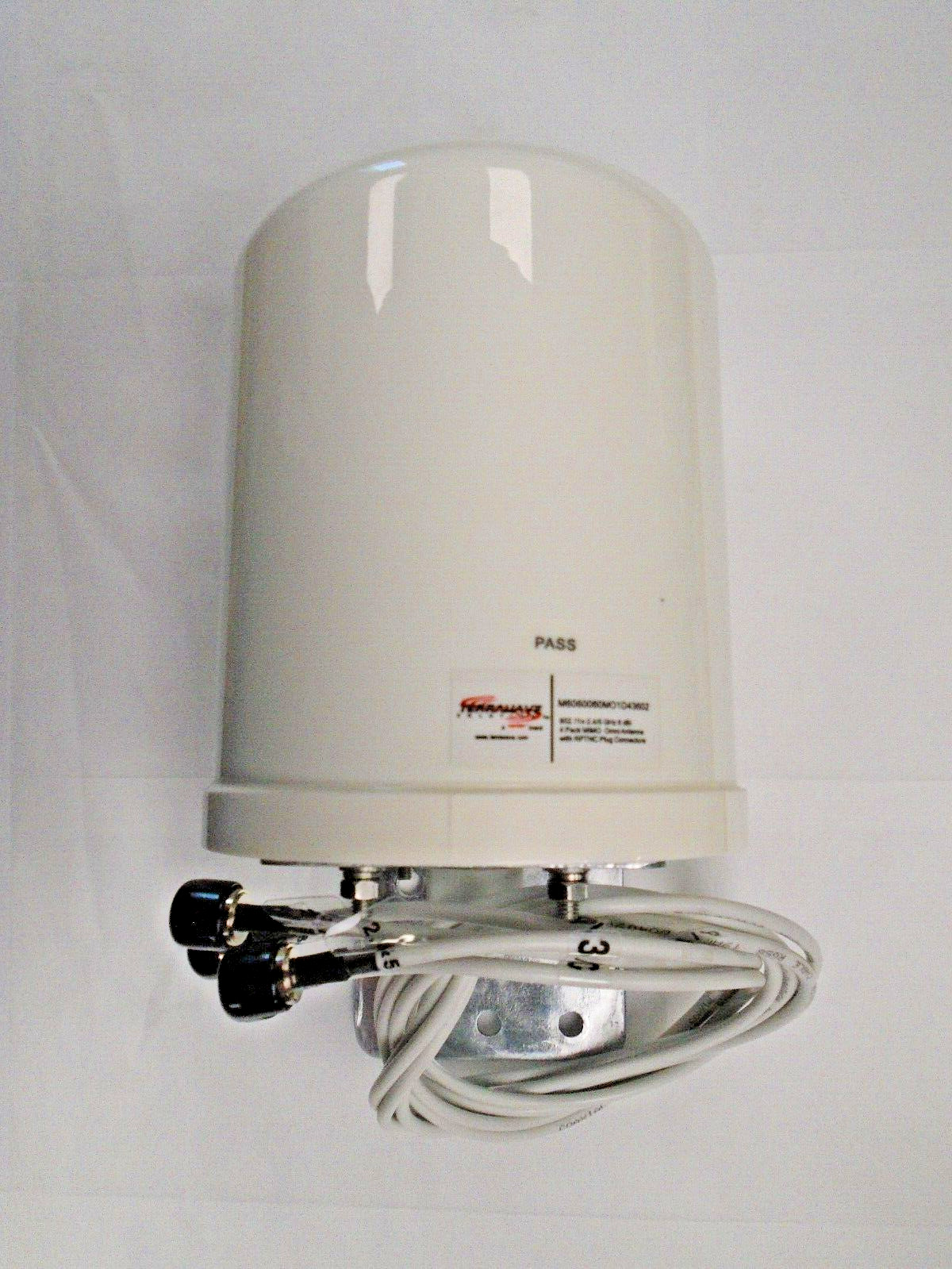

TerraWave’s 6 dBi outdoor multiple-input and multiple-output (MIMO) omni directional antenna is designed to operate enterprise class 802.11n MIMO access points. With dual-band leads, each of the four cables support both 2.4 and 5 GHz, making it an ideal and aesthetically pleasing antenna to support demanding outdoor applications in next generation IEEE 802.11n wireless communication systems. The rugged enclosure makes this antenna perfectly suited for use in a warehouse or manufacturing environment where it must withstand exposure to moisture and dust. Includes an L-Bracket for mast and or wall M6060060MO1D43602

Frequency Range: 2400~2500 / 5150~5850 MHz

Bandwidth: 100 / 700 MHz

Gain: 6 dBi

Gain dBd: 3.85 dBd

Vertical Beamwidth: 45°/20°

Horizontal Beamwidth: 360°

VSWR: ≤2.0 / ≤2.2

Nominal Impedance: 50 Ohms

Polarization: Vertical

Isolation: ≤-15dB

Max Power: 10W

Lightning Protection: Not DC Grounded

Connector: RPTNC Plug with 36” Cable

Dimensions: 5.9” x 7”

Weight: 3.60 lbs

Mast Mount Diameter: 1.37”-1.97”

Operating Temperature Range: -40°F to +158°F

Wind Load: 134 mph
