About this item

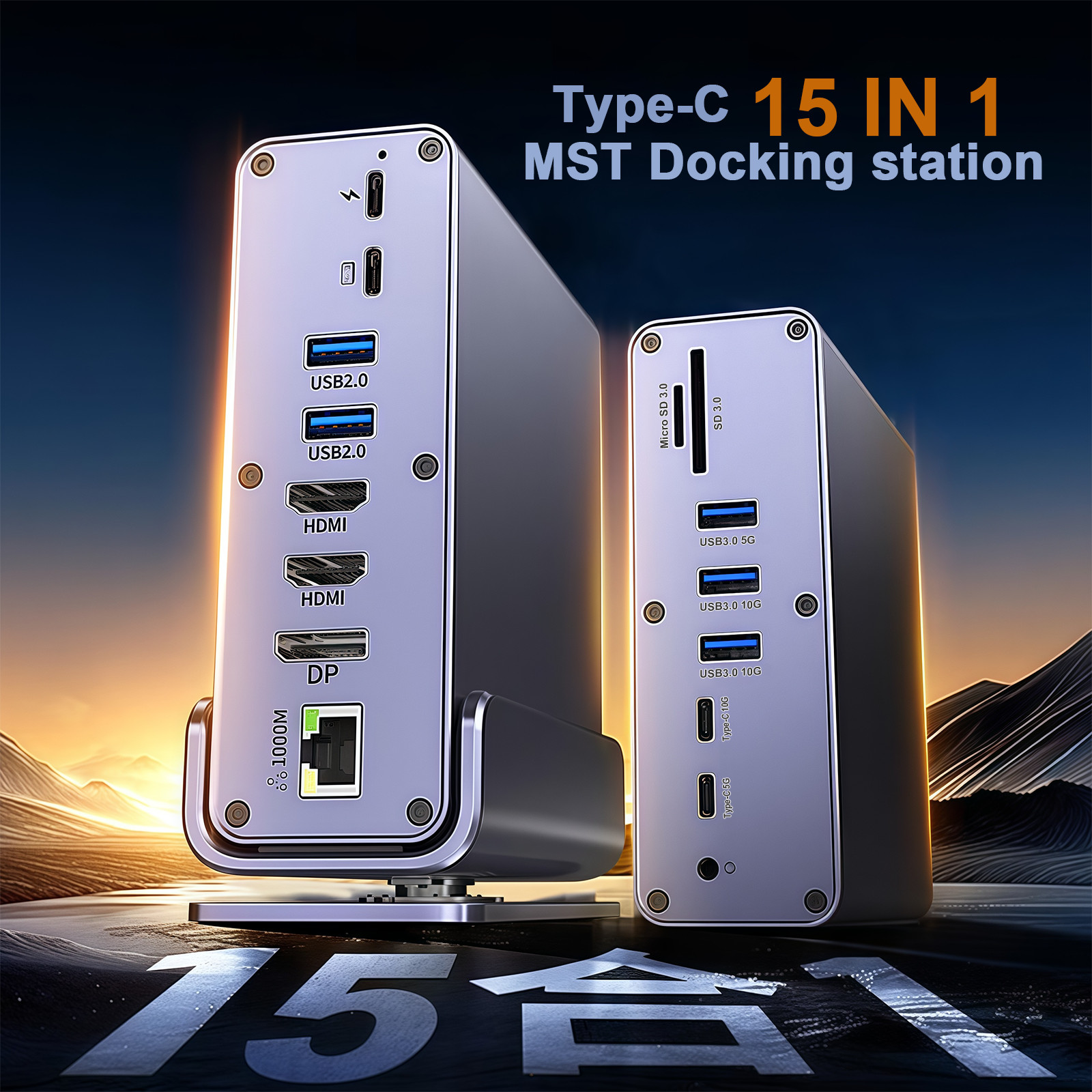

【15-in-1 All-in-One Docking Solution】

This USB C docking station offers a complete set of ports with 15 versatile connections, including2*HI+DP+2*USB-A (10Gbps)+1*USB-A (5Gbps)+ 2*USB-A(480Mbps)+1*USB-C(10Gbps)+ 1*USB-C(5Gbps)+ USB-C(PD100W)+ RJ45+SD/TF 3.0+3.5mm audio+Host. Perfect for streamlining your desk setup.

【Triple Display for Enhanced Productivity】

Transform your workspace with support for triple displays via dual HDMI (4K@60Hz) and DisplayPort outputs. Notice: macOS only supports mirror mode or single-screen extension (A-AAA or A-BBB modes). Due to system limitations, MST (Multi-Stream Transport) is not supported.

【High-Speed Data Transfer & Power Delivery】

With 10Gbps USB-A and USB-C ports, enjoy ultra-fast data transfers for external drives, flash storage, and peripherals. NOTE: Use 100W+ original/laptop charger forstable performance, especially with multi-display setup.

【Stable Network Connection with 1000Mbps Ethernet】

Experience reliable and high-speed internet with the 1000Mbps Ethernet port. Perfect for remote work, gaming, or streaming, this docking station provides a solid and stable connection for all your online activities.

【Universal Compatibility for Multiple Devices】

Compatible with a wide range of devices including MacBook, Dell, HP, Lenovo, Surface, and more. Ideal for professionals, gamers, and creatives, this docking station supports various operating systems and ensures seamless device connectivity.

About the product

• Different parameters of docking station

1.Advanced version：

using USB A/C3.2 (transfer rate up to 10Gbps), RJ1000M or above, multiple HDMI/DP 4K@60HZ Waiting for data transmission interface.

2.Basic version:

using USB A/C2.0-3.0 , RJ100M, VGA and other data transmission interfaces.

This product is a 15 in 1 type-c docking station with dual configurations 4K@60Hz HDMI+DP, 10Gbps USB 3.2, RJ1000M high-speed interface.

• Precautions

1.Identify product quality:

Purchase high-quality docking stations, while low-quality docking stations (usually cheaper) may have risks such as severe heating and unstable interfaces.

2.Multi monitor support:

When the computer is connected to more than one external monitor, it can support mirroring or expansion mode. If you are a MAC computer, you need to pay special attention that most products (including this one) only support MAC mirroring mode.

Say goodbye to messy cables and make your desktop cleaner

Reminders for device usage

• Interface data transmission

The USB port only supports data transfer and charging, and does not support video output. HDMI and DP support video output.

• Type-C interface supports functions

The video output function requires confirmation whether the USB-C port of the device connected to the docking station supportsThunderbolt 3 / 4orDisplayPort Alt Mode. （Next to the interface is printed a "lightning" symbol or "D" symbol, without any special symbol, may just be a regular Type-C interface with missing functionality, such as only being able to charge or transmit data. ）

• PD charging interface

The 100W PD port is used for fast charging of laptops, tablets, mobile phones, game consoles, and other devices. The 100W USB-C charging port requires an external charger of at least 100W to achieve a maximum output of 85W.

This product does not include a charger. During normal operation, there is no need to connect a power source. Only when reverse charging of external devices is required, a charger needs to be connected.

Do not connect the Type-C cable between the docking station and the device to the PD interface, as this may cause your device to malfunction.

Display Mode

This product supports dual HDMI2.0+DP1.4 Outputs High-definition And High-resolution Images,Support MST/SST Modes,Compatible with Mac OS And Windows.

Frequently Asked Questions

Q1: Can this base be used with any laptop? How can I ensure that my laptop is compatible with this docking station?

A: This docking station is suitable for laptops with USB-C ports that support DisplayPort Alt Mode and Power Delivery. To confirm the USB-C port functionality of your laptop, please refer to the user manual or contact the laptop manufacturer. If your USB-C port does not support DisplayPort Alt mode, you will not be able to receive video output. If your USB-C port does not support Power Delivery, the docking station will be able to handle video and data (including audio and Ethernet) properly, but will not be able to charge your laptop.

Q2: Can I use my own USB-C cable to connect the docking station to my laptop?

A: Please make sure to use the included USB-C cable or purchase a cable that supports full-featured Type-C (which also supports data transfer, video output, and charging). A cheap and ordinary cable can only be compatible with some functions of the device, or cannot achieve the transmission speed of the device.

Q3: How to choose cables that are compatible with the device if you purchase them yourself?

A: If you need to purchase the cable yourself, please use a cable that supports USB 3.2 Gen 2, Thunderbolt 3/4, or USB4. Before purchasing, ask if it can support data transfer (10Gbps or more), video output (4K), and charging (PD100W) simultaneously. If the cable specifications are not clear, it is possible that the device may not be able to fully utilize its functions.

Q4: Do I need to install any drivers to use dock?

A: No.

Q5: Is this docking station compatible with computers with Thunderbolt 3/4 ports?

A: Yes, but it can only provide a maximum bandwidth of 10Gbps, so it cannot reach the maximum bandwidth of Thunderbolt 3/4 (40Gbps).

Q6: Sometimes the docking station does not automatically reconnect after waking up or restarting the laptop. What should I do?

A: This situation does not occur frequently, but if you encounter this issue, please try disconnecting and reconnecting the USB-C cable or restarting the docking station.

Q7: What should I do if the performance of the docking station does not match the description?

A: Please check if the Type-C interface and USB-C cable parameters of your computer (or other device) are compatible with the docking station, and if all interfaces are properly connected. You can take photos or record videos of the connection status and related parameters, send us an email, and we will reply within 24 hours.
