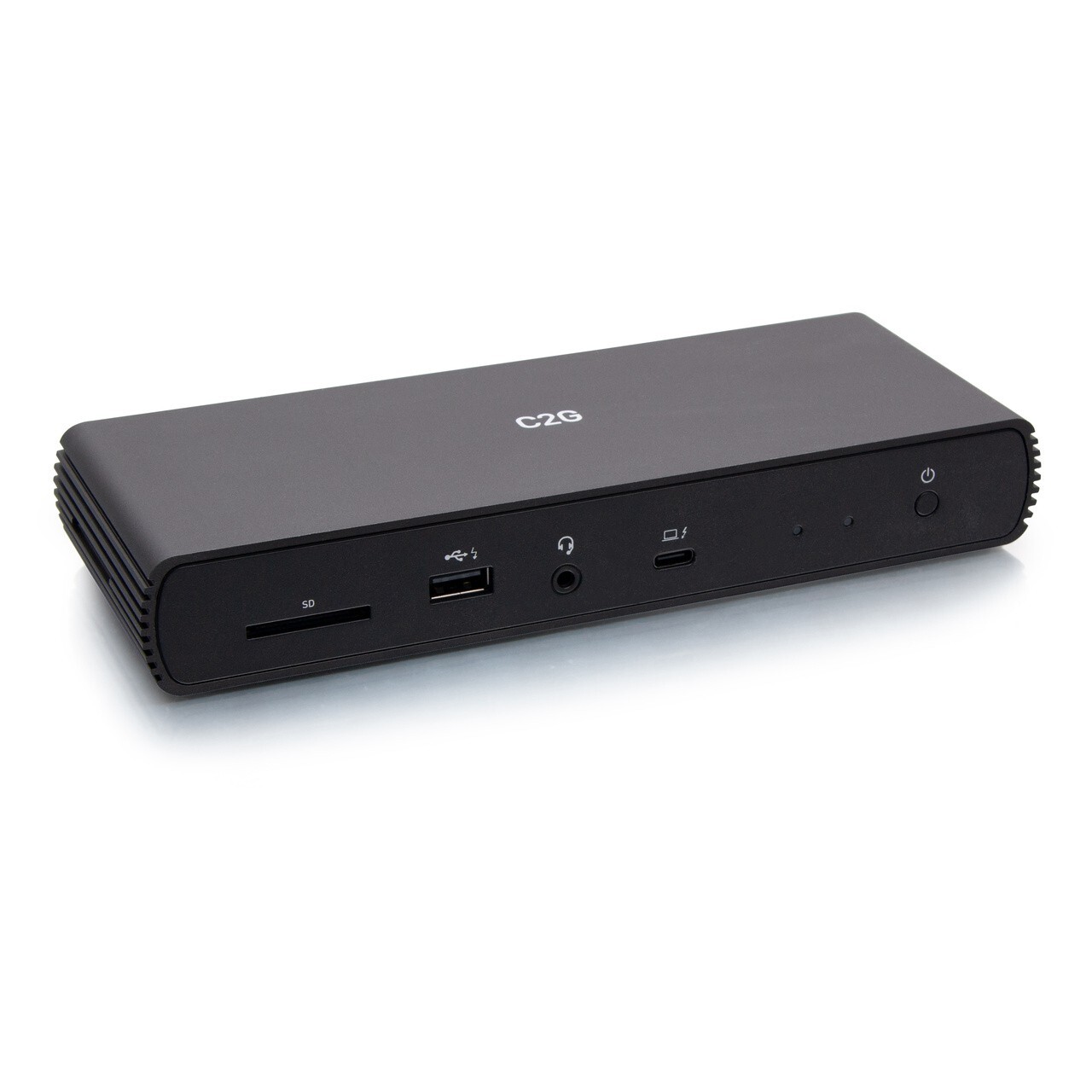

Thunderbolt™ 4 USB-C® 10-in-1 Dual Display Docking Station with Ethernet, USB, SD Card Reader, 3.5mm Audio and Power Delivery up to 90W - 4K 60Hz (TAA Compliant)
The Thunderbolt 4 USB-C 10-in-1 Dual Display Dock transforms Thunderbolt 4 enabled laptops into total desktop solutions through a single USB-C connection – allowing them to have more video outputs, more connected peripherals, and lightning-speed data transfers, all while keeping the laptop charged and ready to go.
This docking station supports crisp, ultra high definition images and video when connected to a single 8K display or dual 4K displays and provides data transfer speeds up to 40Gbps, all through the available Thunderbolt 4 ports. The front USB-A 2.0 port supports BC 1.2 for quick mobile device charging, while the three USB-A Gen 2 ports on the rear support 10Gbps data transfers. The Ethernet port allows for reliable internet connectivity with file transfer speeds up to 1000Mbps. Access multimedia content quickly with the SD 4.0 card reader that supports all SD cards, including SD, SDHC, and SDXC.
The included 135W power supply keeps the connected Thunderbolt 4 laptop charged and ready to go with 90W power delivery while supporting connected devices, such as keyboards, mice, portable hard drives, and other peripherals. The maximum power capacity depends on how much power the connected adapter can supply. The right amount of power is necessary to keep the laptop battery charged, for all connected devices to function, and for the dock to provide that connectivity. Laptops or tablets that require more than 135W may charge at lower speeds.
The Thunderbolt 4 USB-C 10-in-1 Dual Display Dock maximizes desktop space while providing a plug-and-play solution for Thunderbolt 4 Windows 10 or later laptops and backward compatibility with Thunderbolt 3 and USB4 devices running Windows 10 or later or Mac OS Big Sur 11.2 or later.
Note: Only a single video output is supported with the original M1 MacBook. Newer Apple devices (M1 Max and M1 Pro, etc.) are not impacted and support dual monitors.
Connector 1: (1) USB-C Male
Connector 2: (1) 3.5mm Female, (4) USB-A Female, (4) USB-C Female, (1) SD Card Reader
MAXIMUM SUPPORTED RESOLUTIONS2 Displays: 4K (4096 × 2160) at 60Hz1 Display: 8K (7680 x 4320) at 30HzDual Screens Supported on a Mac by using Thunderbolt 4 technology (Mac mush have at least TB3 ports)PORTS4x Thunderbolt 4 Ports: Connect to a single 8K or dual 4K displays for audio and video, and transfer data up to 40Gbps from storage devices.4x USB-A: Connect storage devices and transfer data up to 10Gbps through the USB-A Gen 2 ports, with the front port also supporting BC 1.2 for quick mobile device charging.Gigabit Ethernet: Connect to a local network for network and internet access.Audio Combo Jack: Connect a headset microphone or speakers for audio output.SD 4.0 Card Reader: Insert an SD, SDHC, or SDXC memory card for fast data transfers.
Specifications
Dimensions & Measurements
20 VAC
90% RH
90 W
3.28 lbs (1.5 kg)
3 lbs (1.4 kg)
90% RH
90% RH
Characteristics & Features
Color
Black
Connector 1
(1) USB-C Female
Connector 2
(1) RJ-45 Female
(1) USB-C Female
(2) 3.5mm Female
(2) DisplayPort Female
(3) HDMI Female
(5) USB-A Female
Product Type
Active Device
Docking Station
TAA Compliant
Yes
UPC
757120545378
Video Input Support
USB-C
Video Input Support
USB-C
Video Resolution
1080p
4K
4K @ 30Hz
4K @ 60Hz
8K
8K @ 30 Hz
Data Transfer Rate
40 GBPS
Certifications & Warranties
Certifications
CE
NDAA 889
Prop 65
REACH
RoHS
TAA
TSCA
Warranty
5 Years
