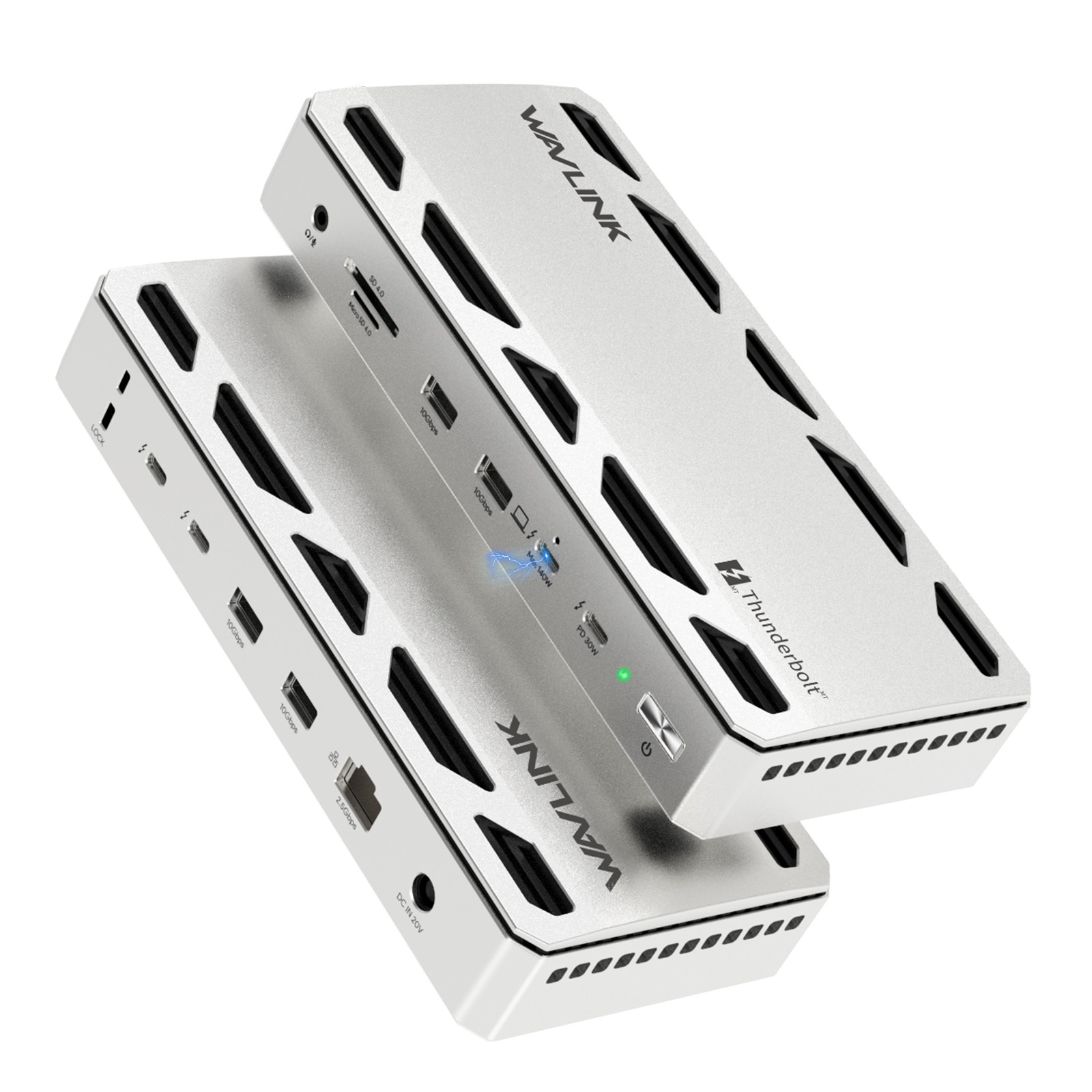

WAVLINK Intel Certified Thunderbolt 5 Dock, 13-in-1 Hub with 120Gbps, 140W PD, 2x 6K/8K Display,
3x 80Gbps TBT 5 Downstream USB-C, 1x 64Gbps M.2 Slot for Mac & Windows TBT 5/4, USB4 & USB-C Laptops
Unleash TB5 Speed: Experience the revolutionary performance of the latest Intel Thunderbolt 5 technology.
Benefit from a stable 80Gbps bi-directional bandwidth and the dynamic Bandwidth Boost feature,
providing up to an incredible 120Gbps when needed for tasks like high-resolution display output,
ensuring smooth and efficient data handling.
Mac Display Capabilities: Seamlessly connect external monitors to your Mac. Supports up to Dual 6K@60Hz external
monitors on Macs with M1/M2/M3/M4 Pro/Max, M4 Base, or Intel chips. Macs with M1/M2 Base chips support up
to Single 4K@60Hz, while M3 Base models support up to Single 6K@60Hz. (Note: macOS systems do
not support connecting three external displays through this dock).
Windows Display Versatility: Elevate your Windows workspace or gaming setup. Connect up to
Triple external displays when using a Windows 11 (23H2 or later) PC with a Thunderbolt 5 port.
Achieve stunning visuals with resolutions up to Single 8K@144Hz, Dual 2x8K@60Hz, or even Triple 3x 4K@144Hz.
Built-in 64Gbps M.2 NVMe Slot: Located on the bottom, this dock features a dedicated M.2 PCIe NVMe slot
that allows you to effortlessly expand your laptop’s storage. Delivering blazing-fast read and write speeds of up
to 6400MB/s, it supports 2280 form-factor SSDs (M-key and B&M-key) in capacities ranging from 1TB to 8TB,
ensuring ample space and high-performance data transfer for all your needs.
Robust PD Charging: Effortlessly power your demanding laptop through the single Thunderbolt 5 Host connection
with MAX 140W Power Delivery output. Keep your other essential devices charged simultaneously via the downstream
Thunderbolt 5 USB-C ports, offering up to 30W (on one port) and up to 15W (on two ports).
High-Speed Peripherals: Connect all your devices with speed and ease. This dock features 4x high-speed
USB-A 3.2 Gen 2 ports offering data transfer rates up to 10Gbps. Quickly import photos and videos from your camera or
drone with the SD 4.0 Card Reader, supporting UHS-II speeds up to 312MB/s. Get a reliable,
ultra-fast wired internet connection via the up to 2.5Gbps Ethernet port.
Important Compatibility: Triple external display requires a Windows 11 (or later) PC with a Thunderbolt 5 port.
Achieving higher resolutions (6K/8K) and refresh rates (>60Hz) often necessitates Display Stream Compression (DSC)
support on both your laptop's GPU and the monitor(s). Actual display configurations and performance vary based on
your laptop's specific port type (Thunderbolt 5/4/USB4, USB-C Alt Mode) and operating system.
Systems/ Devices Compatibility
- Windows 11 or higher
- Mac OS 14.6 or later (M chip)
- Compatible with Thunderbolt 5/4, USB4, and USB 3.0 computers featuring a USB-C port.
Multiple Display Resolution (Max. Resolution)
Notice: Please make sure the type-C port of your host supports video output.
Windows 11 or higher:
Single Display:
Via Thunderbolt 5: Up to 8K@144Hz
Via Thunderbolt 4/USB 4: Up to 8K@60Hz
Via USB-C Alt Mode: Up to 4K@60Hz
Via Thunderbolt 3: Not supported.
Dual Display:
Via Thunderbolt 5: Up to 8K@60Hz
Via Thunderbolt 4/USB 4: Up to 6K@60Hz
Via Thunderbolt 3: Not supported.
Via USB-C Alt Mode: Not supported.
Triple Display:
Via Thunderbolt 5: Up to 4K@144Hz
Via Thunderbolt 4/USB 4: Not supported.
Via Thunderbolt 3: Not supported.
Via USB-C Alt Mode: Not supported.
macOS (14.6 or later):
Single Display:
M4 Base/Pro/Max: Up to 8K@60Hz
M1/M2/M3 Pro and Max: Up to 6K@60Hz
M1/M2 Base: Up to 4K@60Hz
M3 Base: Up to 6K@60Hz
Dual Display:
M4 Base/Pro/Max: Up to 6K@60Hz
M1/M2/M3 Pro and Max: Up to 6K@60Hz
M1/M2/M3 Base: Not supported.
Triple Display:
All M-series chip Macs (including M4): Not WL-UTD58M
2.Ports: Front: 1×Combo Audio Jack; SD/Micro SD Card Reader(UHS-Ⅱ, SD 4.0); 2×USB-A(10Gbps);
1×TBT 5 UFP (Host, Max. 140W Charging, Video); 1×TBT 5 DFP (80Gbps, Video, PD 30W);
Rear: 2×TBT 5 DFP (80Gbps, Video, Charging); 2×USB-A (10Gbps); 1×RJ45 Ethernet; 1×DC IN (20V).
Bottom: 1×SSD Slot(64Gbps)
3.Unit Size: LxW×H to C/ HDMI Cable Length: 100cm/39.4in
5.Unit Weight: 610g/21.4oz
6.Material: Aluminum alloy
Features
- 1* Thunderbolt™5 UFP provides 80Gbps data, 120Gbps bandwidth video transfer, 140W instant charging for the USB-C laptop.
- 3* Thunderbolt™5 DFP provide 80Gbps data, dual 8K@60Hz or triple 4K@144Hz display at 120Gbps bandwidth, one of them supports 30W
instant charging for the downstream devices.
- 1* PCIe NVMe SSD slot suppots 64Gbps data transfer including 6500MB/s reading/writing speed.
- 4* USB-A transfer speed up to 10Gbps, and compatible with USB 3.0/2.0.
- 1* RJ45 Ethernet provides efficient transfer, low-latency game experience, stable wired network.
- 1* UHS-Ⅱ SD/Micro SD card reader transfers high-definition video and vivid images at 312MB/s, and compatible with UHS-Ⅰ devices.
- 1* Combo 3.5mm mic/headphone jack for clear audio in and out.
In the Box
- 1 x Thunderbolt™5 13 in 1 Triple Display Ultra Docking Station
- 1 x 1m Thunderbolt™5 Cable
- 1 x M.2 Thermal Silicone Pad
- 1 x 20V Power Adapter
- 1 x Screwdriver
- 1 x AC Cable
- 1 x Quick Start Guide
Warm Tips:
1.Please ensure your laptop's USB-C port supports video output (DisplayPort Alt Mode) and charging
(Power Delivery) to fully utilize all features of this hub.
2.Triple External Displays: Support for three external displays is potentially available only when connected to
a laptop featuring a Thunderbolt 5 port and running Windows 11 or later. Actual support depends on the specific laptop's specifications.
3.macOS System Limitation: macOS systems do not support triple external displays through this dock.
The number and resolution/refresh rate of supported external displays depend on the specific Mac chip
model (M1/M2/M3/M4 Base/Pro/Max). Please refer to the compatibility list for details.
4.High Resolution/High Refresh Rates: Achieving 6K/8K resolutions and refresh rates above 60Hz typically requires
both your laptop (GPU) and external monitor(s) to support DSC (Display Stream Compression).
5.Accessories: USB-C to HDMI/DP cables and the security lock are not included and must be purchased separately.
Instructions about the monitor(s): 1.Dual 5K monitors must be Thunderbolt 4 or Apple Studio Displays.
Dual LG UltraFine 5K monitors are not supported. 6K monitors can be a Thunderbolt 4 monitor or
an Apple Pro Display XDR. DSC (Display Stream Compression) support is required for 6K and 8K resolutions.
2.Higher refresh-rates (above 60Hz) may require DSC (Display Stream Compression) support on the monitors and
host GPU. The bit/color depth may vary in order to support higher refresh-rates.
3.Some M3 MacBooks such as the MacBook Air can support dual external monitors up to 5K and
6K when the laptop lid is closed (clamshell mode).
4. Currently M1/2/3/4 Macs can only support up to HDMI 2.0b over its Thunderbolt ports. As such,
resolutions will be limited to 4K 60Hz when using an HDMI adapter. If a higher refresh-rate is required,
please use a USB-C to USB-C or USB-C to DisplayPort or DisplayPort to DisplayPort connection.
For more information about a Mac’s external display support please Apple's or CalDigit's support webpages.
5. Results may vary due to OS updates. For external display compatibility over a single Thunderbolt connection
on different Windows computers, please refer to the manufacturer’s website.
