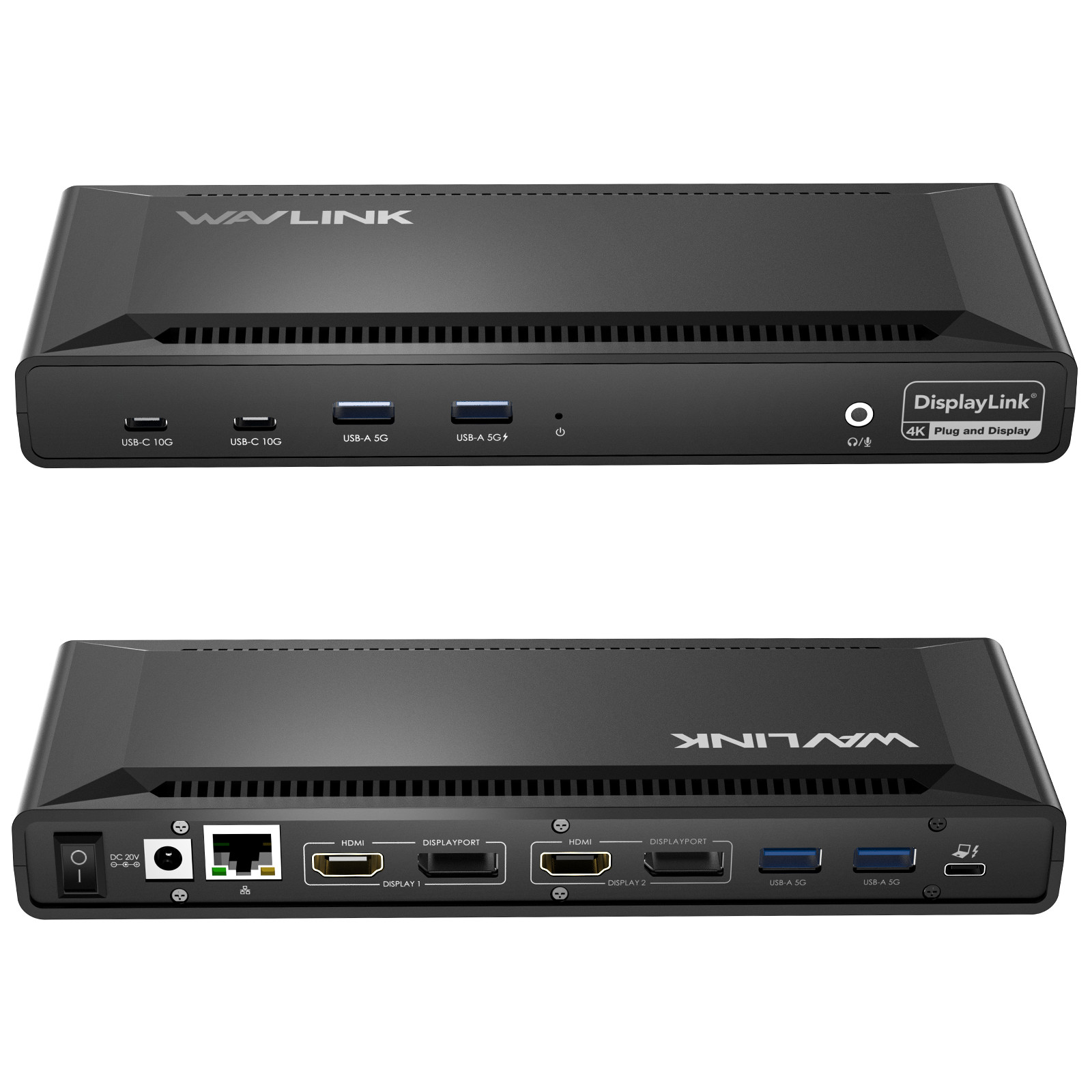

13-IN-1 Docking - A single USB-C connection from a host PC to this dock provides dual HDMI & DisplayPort outputs,
wired Gigabit Ethernet, 3.5mm Headphone and Microphone jack, 4 USB-A 5Gbps, 2 USB-C 10Gbps ports, Security lock is supported.
One dock for all devices.

Dual DP 5K Display - This device supports both dual and single display configurations, with resolutions of up to HDMI 4K(4096x2160) or
DP 5K (5120x1440) at 60Hz. It is suitable for light office tasks and general use, so enjoy HD for your multitasking work, gaming,
conference or other various scenarios. but it may not be suitable for handling image-intensive tasks.

Max 100W Power Delivery - The type-c upstream port can pass up to 100W power to your host PC, (Please make sure the type-c port of
your host pc support charging.) and provide extra power to hard disk, peripherals and accessories that connected to the USB ports
simultaneously with the included 130W power adapter. Meanwhile, one USB 5G can provide 7.5W charging to your phone.Fast & Stable Connection - Instant stable access to the internet with the 1000M Ethernet port brings you a 1G movie in a few minutes and
ensures you a stable network connection. The multifunctional 6 USB-A/C ports feature ultra-fast data transfer with a rate of 5/10Gbps.
A 2-in-1 audio port can provide a crystal-clear sound.

Universal Compatibility - With a USB-C to USB-C cable with USB-A converter, it is compatible with most Mac and Windows laptops and
computers that feature Type-C and USB-A ports. The compatible systems include Windows 11,10, MacOS 11.x or later, Android, Chrome OS,
and Ubuntu. (Go to DisplayLink website for more WL-UG69PD2N Pro
-2 x DP and 2 x HDMI ports support dual display to mirror or extend your laptop.
- Supports resolutions up to 5120x1440@60Hz via DP ports, 4096x2160@60Hz via HDMI ports.
- Offers 100W upstream charging for your laptop.
- 2 x 10Gbps USB-C ports provide ultra-fast data transfer.
- 4 x 5Gbps USB-A ports for high-speed transmission and peripheral device connection.
- 1 x Gigabit LAN port provides a fast Ethernet connection, backward compatible with 10/100Mbps networks.
- 1 x Integrated TRRS 4-pole phone jack for audio input and output.

Display Resolution:
Single Display: Extend/Mirror for Windows & macOS
HDMI: 4K(4096x2160)@60Hz
DP: 5K (5120x1440)@60Hz
Dual Display: Extend/Mirror for Windows & macOS
Dual HDMI: 4K(4096x2160)@60Hz
Dual DP: 5K (5120x1440)@60Hz
HDMI+DP: 4K(4096x2160)@60Hz

Notice1: Laptops without USB-C ports
You can use USB A to C cable if your laptop doesn’t own any USB-C port. (This A to C cable is not used for Power Delivery but
only for transferring data; please charge your laptop by the original power adapter.)
Notice 2: Dual 4K Display
There are two ports in each section(Display 1&2)that support one monitor at a time, thus please choose the type of port you need.

System requirements
-Windows 11,10, MacOS 11.x or later, Android, Chrome OS, and Ubuntu.

Package Includes:
-1 x USB-C Dual 5K Universal Docking Station
-1 x USB-C to USB-C Cable with USB-A Converter(1M)
-1 x DC 20V/6.5A 130W Power Adapter
-1 x AC Power Cable(1.5M)
-1 x Quick Start Guide

TB5-2x6K/2x8K(3x TBT 5 DFP+TBT 5 UFP+140W PD+4USB-A+2.5G LAN)

WAVLINK Intel Certified Thunderbolt 5 Dock, 12-in-1 Hub with up to 120Gbps, MAX 140W PD, Single or Dual 6K/8K Display,
3x TB 5 Downstream USB-C 80Gbps, 4x USB-A 3.2 10Gbps, for Mac & Windows Thunderbolt 5/4, USB4 & USB-C Laptops

Unleash TB5 Speed: Experience the revolutionary performance of the latest Intel Thunderbolt 5 technology. Benefit from a stable 80Gbps
bi-directional bandwidth and the dynamic Bandwidth Boost feature, providing up to an incredible 120Gbps when needed for tasks like
high-resolution display output, ensuring smooth and efficient data handling.

Mac Display Capabilities: Seamlessly connect external monitors to your Mac. Supports up to Dual 6K@60Hz external monitors on Macs with
M1/M2/M3/M4 Pro/Max, M4 Base, or Intel chips. Macs with M1/M2 Base chips support up to Single 4K@60Hz, while M3 Base models support
up to Single 6K@60Hz. (Note: macOS systems do not support connecting three external displays through this dock).

Windows Display Versatility: Elevate your Windows workspace or gaming setup. Connect up to Triple external displays when using
a Windows 11 (23H2 or later) PC with a Thunderbolt 5 port. Achieve stunning visuals with resolutions up to Single 8K@144Hz, Dual 2x8K@60Hz, or
even Triple 3x 4K@144Hz.

Robust PD Charging: Effortlessly power your demanding laptop through the single Thunderbolt 5 Host connection with MAX 140W Power
Delivery output. Keep your other essential devices charged simultaneously via the downstream Thunderbolt 5 USB-C ports,
offering up to 30W (on one port) and up to 15W (on two ports).

High-Speed Peripherals: Connect all your devices with speed and ease. This dock features 4x high-speed USB-A 3.2 Gen 2 ports offering data
transfer rates up to 10Gbps. Quickly import photos and videos from your camera or drone with the SD 4.0 Card Reader, supporting UHS-II speeds
up to 312MB/s. Get a reliable, ultra-fast wired internet connection via the up to 2.5Gbps Ethernet port.

Important Compatibility: Triple external display requires a Windows 11 (or later) PC with a Thunderbolt 5 port. Achieving higher resolutions (6K/8K) and
refresh rates (>60Hz) often necessitates Display Stream Compression (DSC) support on both your laptop's GPU and the monitor(s).
Actual display configurations and performance vary based on your laptop's specific port type (Thunderbolt 5/4/USB4, USB-C Alt Mode) and operating system.

Systems/ Devices Compatibility
- Windows 11 or higher
- Mac OS 14.6 or later (M chip)
- Compatible with Thunderbolt 5/4, USB4, and USB 3.0 computers featuring a USB-C port.

Multiple Display Resolution (Max. Resolution)
Notice: Please make sure the type-C port of your host supports video output.
Windows 11 or higher:

Single Display:
Via Thunderbolt 5: Up to 8K@144Hz
Via Thunderbolt 4/USB 4: Up to 8K@60Hz
Via USB-C Alt Mode: Up to 4K@60Hz
Via Thunderbolt 3: Not supported.

Dual Display:
Via Thunderbolt 5: Up to 8K@60Hz
Via Thunderbolt 4/USB 4: Up to 6K@60Hz
Via Thunderbolt 3: Not supported.
Via USB-C Alt Mode: Not supported.

Triple Display:
Via Thunderbolt 5: Up to 4K@144Hz
Via Thunderbolt 4/USB 4: Not supported.
Via Thunderbolt 3: Not supported.
Via USB-C Alt Mode: Not supported.

macOS (14.6 or later):

Single Display:
M4 Base/Pro/Max: Up to 8K@60Hz
M1/M2/M3 Pro and Max: Up to 6K@60Hz
M1/M2 Base: Up to 4K@60Hz
M3 Base: Up to 6K@60Hz

Dual Display:
M4 Base/Pro/Max: Up to 6K@60Hz
M1/M2/M3 Pro and Max: Up to 6K@60Hz
M1/M2/M3 Base: Not supported.
Triple Display:
All M-series chip Macs (including M4): Not WL-UTD58-A
2.Ports: Front: 1×Combo Audio Jack; SD/Micro SD Card Reader(UHS-Ⅱ, SD 4.0); 2×USB-A(10Gbps); 1×TBT 5 UFP
(Host, Max. 140W Charging, Video); 1×TBT 5 DFP (80Gbps, Video, PD 30W);
Rear: 2×TBT 5 DFP (80Gbps, Video, Charging); 2×USB-A (10Gbps); 1×RJ45 Ethernet; 1×DC IN (20V).
3.Unit Size: LxW×H to C/ HDMI Cable Length: 100cm/39.4in
5.Unit Weight: 610g/21.4oz
6.Material: Aluminum alloy

In the Box
- 1 x Thunderbolt™5 Multifunctional Docking Station
- 1 x 1m USB-C to USB-C Thunderbolt™5 Cable(80/120Gbps)
- 1 x 20V Power Adapter
- 1 x Screwdriver
- 1 x Quick Start Guide

Warm Tips:
1.Please ensure your laptop's USB-C port supports video output (DisplayPort Alt Mode) and
charging (Power Delivery) to fully utilize all features of this hub.
2.Triple External Displays: Support for three external displays is potentially available only when connected to a laptop
featuring a Thunderbolt 5 port and running Windows 11 or later. Actual support depends on the specific laptop's specifications.
3.macOS System Limitation: macOS systems do not support triple external displays through this dock. The number and resolution/refresh rate
of supported external displays depend on the specific Mac chip model (M1/M2/M3/M4 Base/Pro/Max). Please refer to the compatibility list for details.
4.High Resolution/High Refresh Rates: Achieving 6K/8K resolutions and refresh rates above 60Hz typically requires both your laptop (GPU) and
external monitor(s) to support DSC (Display Stream Compression).
5.Accessories: USB-C to HDMI/DP cables and the security lock are not included and must be purchased separately.

Instructions about the monitor(s): 1.Dual 5K monitors must be Thunderbolt 4 or Apple Studio Displays. Dual LG UltraFine 5K monitors are not supported. 6K monitors can be a Thunderbolt 4 monitor or
an Apple Pro Display XDR. DSC (Display Stream Compression) support is required for 6K and 8K resolutions.
2.Higher refresh-rates (above 60Hz) may require DSC (Display Stream Compression) support on the monitors and host GPU.
The bit/color depth may vary in order to support higher refresh-rates.
3.Some M3 MacBooks such as the MacBook Air can support dual external monitors up to 5K and 6K when the laptop lid is closed (clamshell mode).
4. Currently M1/2/3/4 Macs can only support up to HDMI 2.0b over its Thunderbolt ports. As such, resolutions will be limited to 4K 60Hz when
using an HDMI adapter. If a higher refresh-rate is required, please use a USB-C to USB-C or USB-C to DisplayPort or DisplayPort to DisplayPort connection.
For more information about a Mac’s external display support please Apple's or CalDigit's support webpages.
5. Results may vary due to OS updates. For external display compatibility over a single Thunderbolt connection on different Windows computers,
please refer to the manufacturer’s website.
