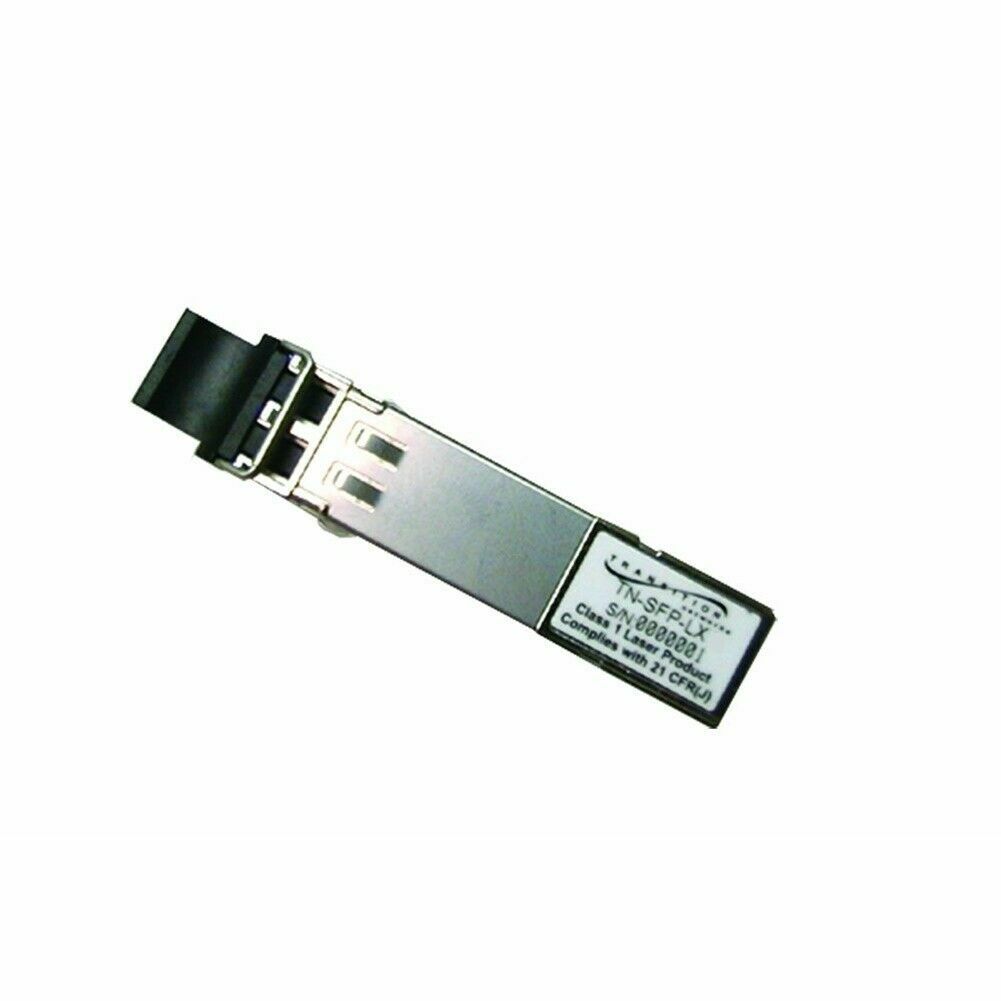

Transition Networks 1000BASE-LX 1310nm10 Km SFP Module
Condition: New
General Information
The TN-SFP-LX1 Small Form Factor Pluggables (SFP)transceiver is designed for bi-directional serial optical data communicationssuch as Gigabit Ethernet or Fiber Channel and speeds up to 1.25Gbps.
The device is designed for use in Switches and routers compatiblewith Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The modulealso offer comprehensive digital diagnostic capability (DMI).
Technical Information
Application/Usage: DataNetworking
Total Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1x LC 1000Base-LX
Media & Performance
Media Type Supported: OpticalFiber
Fiber Mode Supported: Single-mode
Maximum Distance Supported: 32808.40ft
Maximum Data Transfer Rate: 1.25
Physical Characteristics
Form Factor: Hot-pluggable
Height: 0.3"
Width: 0.5"
Depth: 2.2"
Miscellaneous
Additional Information:
Fiber Channel Switch Infrastructure
Optical Wavelength: 1310nm
Metro Edge Switching
Digital Diagnostic Function
Min TX PWR: -9.5 dBm
Max TX PWR: -3 dBm
RX Sensitivity: -21 dBm
Max In PWR: -3 dBm
Link Budget: 11.50 dB
Compatibility:
The device is designed for use in Switches and routerscompatible with Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).
