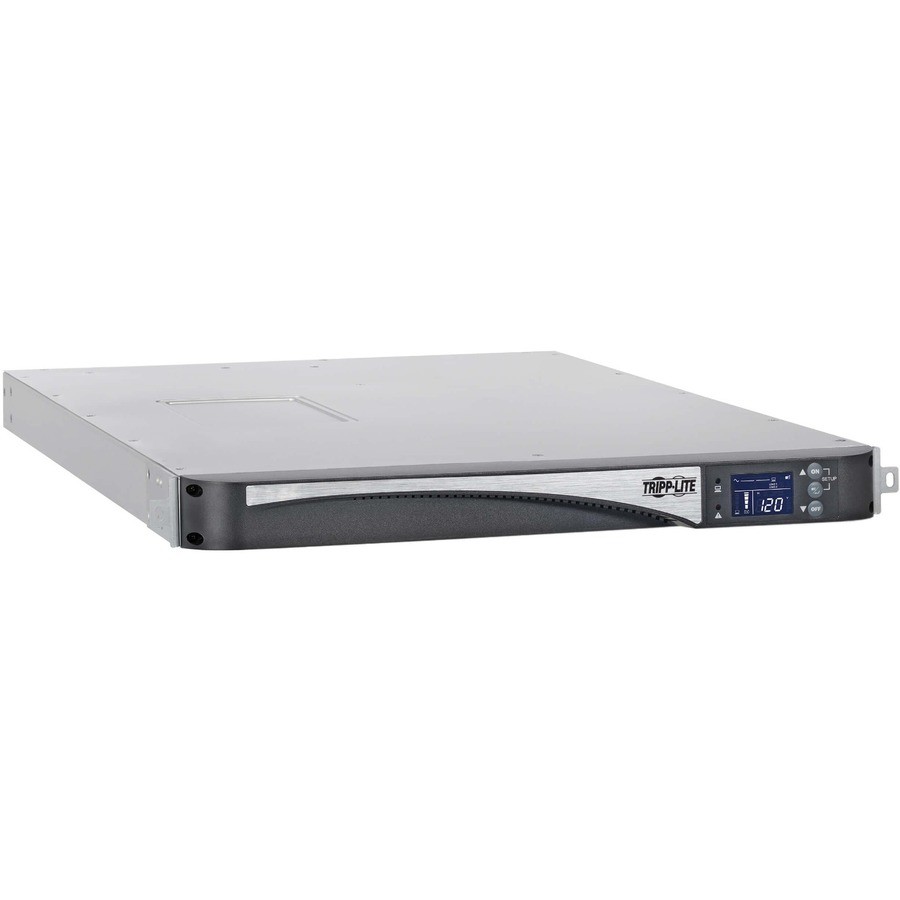

Tripp Lite 1U 5 Outlet 120V 1600W Double-Conversion Smart Online UPS SU2000LCD1U Brand: Tripp Lite UPC: 0037332238146 Mfr Part #: SU2000LCD1U

General Information

Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss
This 100/120/127V 50/60 Hz on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with +/-3% voltage regulation in on-line and battery modes. Featuring 1600W capacity, 540 joules of surge suppression, true on-line operation with pure sine wave output and zero transfer time between on-line and battery modes, the SmartOnline® SU2000LCD1U provides the highest level of AC power protection and battery backup for network equipment in your small- to medium-size data center or computer room.

Individually Controllable Load Banks Let You Access and Control Outlets Remotely
Five NEMA 5-20R outlets are split into two switchable load banks, allowing you to reboot select components or shed loads remotely. This UPS is recommended for any application supported by in-rack IT equipment, including servers, switches, phone systems, kiosks and high-end engineering and A/V computer systems.

Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable internal battery provides 10 minutes of support at half load (800W) and three minutes at full load (1600W), keeping protected equipment operational through power failures. The intelligent battery management system with temperature-compensated charging extends battery life.

ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment
By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. A power-saving Economy mode setting option offers enhanced efficiency and reduced BTU output when utility power is already high quality.

Set Output Frequency to Match That of Your Connected Equipment
Using the UPS in Frequency Conversion mode will correct or convert the incoming frequency of 50 Hz to output 60 Hz (and vice versa).

Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
The front-panel LCD features eight selectable screens of UPS data (including load, voltage and battery data) and multiple screens of configuration and setup options. LEDs indicate AC output availability and fault status. On-screen operational diagram offers an easy-to-grasp visual representation of on-line, battery and ECO/Bypass modes.

Advanced Communications Ports Allow for Automatic Shutdowns
RS-232 and HID-compliant USB ports connect to a computer running Tripp Lite's free downloadable PowerAlert® software to enable safe unattended system shutdown in case of a prolonged power failure. Wireable ports enable EPO (Emergency Power Off) and ROO (Remote Off/On) operation for UPS emergency and daily operation preferences. RS-232 and USB cables are included.

More from the Manufacturer

Technical InformationPlug/Connector Type:NEMA 5-20PReceptacle Type:NEMA 5-15/20RReceptacle Detail:5 x NEMA 5-15/20RDataline Protection:RS-232Transfer Time:0 nsEMI/RFI Noise Filter:YesPhase:Single PhaseApplication/Usage:Network ClosetApplication/Usage:Computer RoomApplication/Usage:IT System

Power DescriptionLoad Capacity (VA):2000 VALoad Capacity (Watt):1600 WInput Voltage:120 V ACOutput Voltage:100 V ACOutput Voltage:120 V ACOutput Voltage:127 V ACOutput Frequency:60 HzWaveform Type:Pure Sine WaveSurge Energy Rating:540 J

LED Indicators:

• AC Output status (green)
• Shutdown / Fault condition (red)

Battery InformationDC System Voltage:48 V DCBackup/Run Time (Full Load):3 MinuteBackup/Run Time (Half Load):10 MinuteTypical Battery Recharge Time:8 HourHot Swappable:YesReplaceable Battery:Yes

Physical Height:1UForm Factor:Rack-mountableWeight (Approximate):48.50 lb

SmartOnline SU2000LCD1U 2000VA Rack-mountable UPS

USB Cable

RS-232 Cable

Rack-Mounting Hardware

Owner's Manual

Energy Star:YesCountry of Origin:ChinaEnvironmentally Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)
