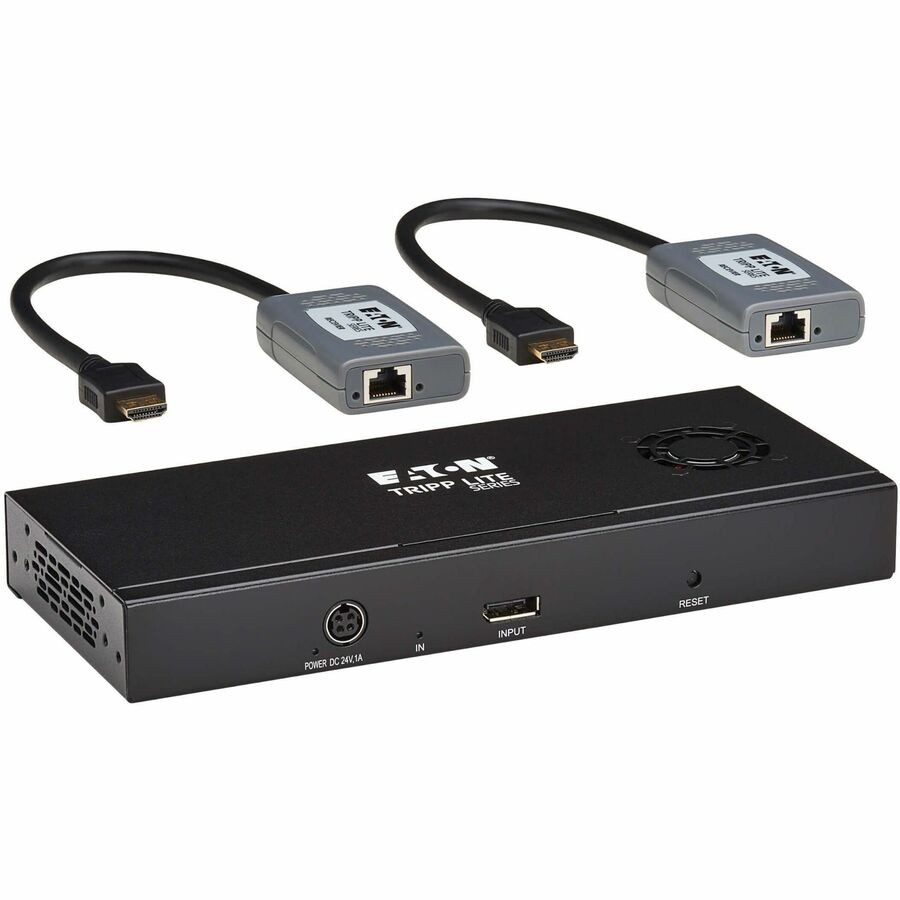

Tripp Lite 2-Port DisplayPort to HDMI Splitter/Extender Kit over Cat6 Brand: Tripp Lite UPC: 0037332287397 Mfr Part #: B156E002H8KK

General Information

Splits and extends a 4K DisplayPort audio/video signal to two separate HDMI monitors up to 230 ft. away with zero latency.

Features

Connect up to 2 HDMI Monitors to Your DisplayPort Computer up to 230 ft. Away

This multi-display splitter connects two 4K or 8K HDMI monitors, projectors or televisions to the DisplayPort output on your laptop or desktop computer. Recommended for digital signage in schools, churches, trade shows, hotels, office conference rooms, restaurants, bars and retail outlets, the B156E002-H8K-K helps you create video walls, give audio/video presentations in front of large audiences or stream 4K/8K video to multiple locations

DisplayPort Multi-Stream Transport (MST) Allows Connection of Multiple Displays

By connecting the DisplayPort input to a source that supports DisplayPort MST Mode, you may connect two monitors simultaneously. This allows you to display the same image on each monitor, extend your host desktop across both monitors or combine both monitors into one large display as a video wall. LED indicators let you know which monitors are receiving an AV signal

Transmits 8K Video Using Cat6 Cabling

The B156E-002-H8K-K supports Ultra HD resolutions up to 3840 x 2160 at 60 Hz per monitor with 12-bit Deep Color and 2-channel LPCM audio in extended desktop and mirror modes. In video wall mode, it supports expanded resolutions, including 7680 x 2160 at 60 Hz (2x1 vertical configuration) and 3840 x 4320 at 60 Hz (1x2 horizontal configuration). The B156E-002-H8K-K is compliant with HDMI 2.0 standards and is backward compatible with previous versions. Note: When in video wall mode, it is recommended to use monitors of the same brand and model to ensure full functionality

Supports HDR and 4:4:4 for the Sharpest Video Possible

The B156E-002-H8K-K supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.3 encryption allows you to stream 4K content with no complications. This extender kit also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor

Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks

Power over Cable (PoC) technology powers the remote receivers over Cat6 cable. LEDs on both the transmitter and receivers will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of bulky power bricks and gives you the freedom to place the receivers away from an AC outlet.

Technical InformationRecommended Usage:Video WallRecommended Usage:Digital SignageRecommended Usage:ProjectorRecommended Usage:TVRecommended Usage:NotebookRecommended Usage:PCRecommended Usage:SchoolRecommended Usage:OfficeRecommended Usage:ConferenceRecommended Usage:RestaurantRecommended Usage:Retail Store

Physical CharacteristicsMaterial Details:

Metal Enclosure

ABS Plastic

Dimensions:

Receiver Unit Dimensions (hwd / in.) 2.95 x 1.85 x 0.73

Transmitter Unit Dimensions (hwd / in.) 9.25 x 3.94 x 1.17

Unit Dimensions (hwd / in.) 1.169 x 9.252 x 3.937

Weight (Approximate):

Receiver Unit Weight (lbs.) 0.4850

Transmitter Unit Weight (lbs.) 1.433

Unit Weight (lbs.) 2.5

B156E-002-H8K-K 2-Port DisplayPort to HDMI MultiMonitor Splitter

2 x HDMI pigtail receivers

External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A) with 4.5 ft. cord

4 x International plug adapters (North America, Europe, U.K., Australia)

Mounting hardware

Environmental Compliance:Restriction of Hazardous Substances (RoHS)Environmental Compliance:Waste Electrical and Electronic Equipment Directive (WEEE)Country of Origin:TaiwanTAA Compliant:Yes
