Manufacturer: Tripp Lite

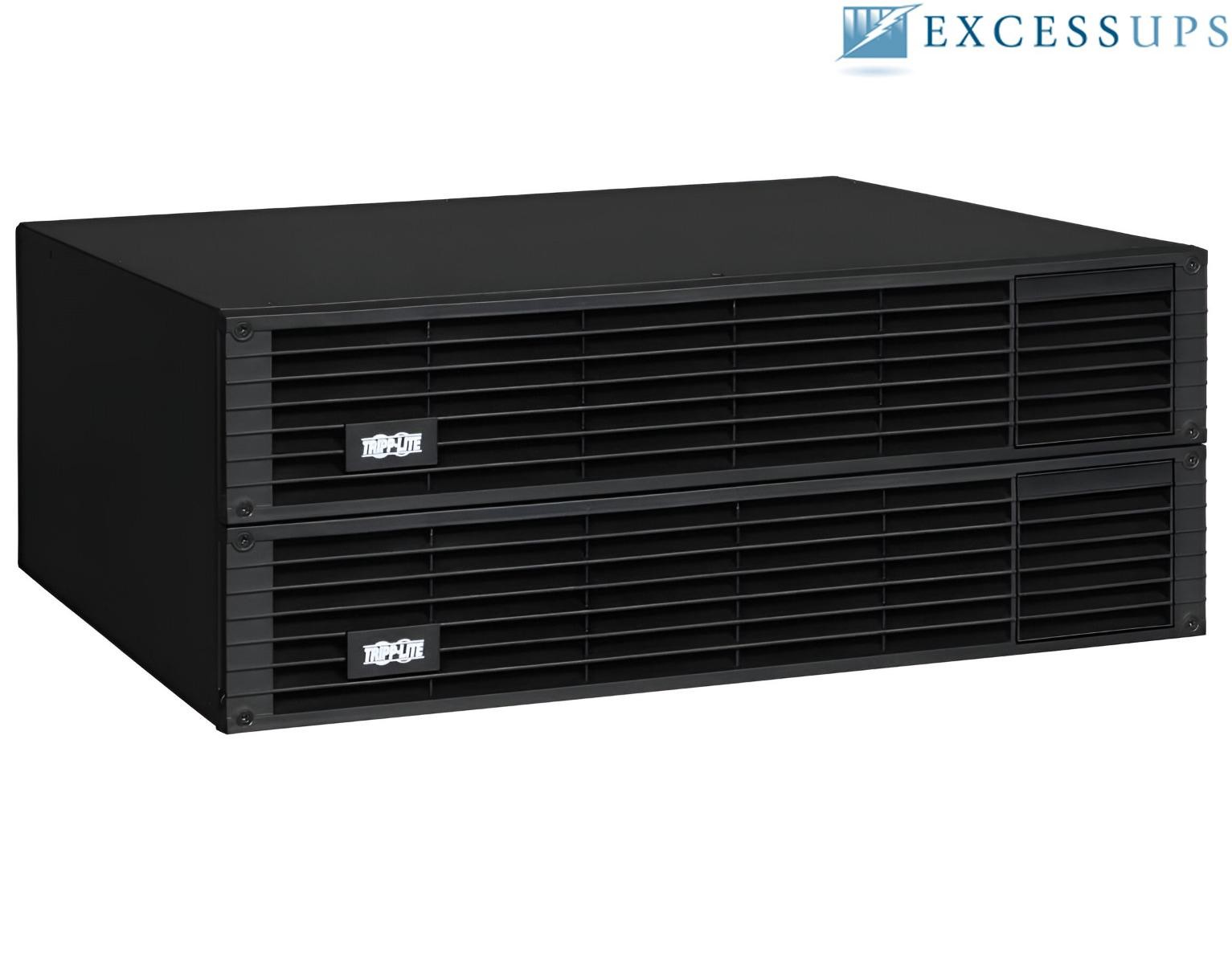

Model Description: Tripp Lite External 48V RM 4U Battery Pack. Compatible with select Tripp Lite External Rackmount UPS models.
Condition: New batteries, refurbished battery cabinet
Part Number: BP48V48RT4U
Warranty: 1 Year Full Replacement Warranty
Includes: (1) BP48V48RT4U Battery cabinet with New batteries - No other accessories included
Compatible with these Tripp Lite models and others:
SMART2200CRMXL, SMART3000CRMXL, and other Tripp Lite UPS systems that specify the use of this battery pack.
Tripp Lite External 48V RM 4U Battery Pack BP48V48RT4U User's Manual
Output:
Overload Protection
180A DC Output Fuse System
Input:
Input Phase
Single-Phase
Battery:
Expandable Battery Runtime
Includes a second input/output connector to daisy-chain multiple BP48V48RT4U battery packs
DC System Voltage (VDC)
48
UPS Connection
Attached 20.5 inch cabling with UPS specific DC connector (52.1 cm length, 4 gauge cable)
Typical Battery Lifespan
4-6 years typical (North America)
Expandable Runtime
Yes
Physical:
External Battery Pack Form Factor
Rack
Installation Form Factors Supported with Included Accessories
2 post 19 inch rackmount
Installation Form Factors Supported with Optional Accessories
4 post rackmount full-depth (4POSTRAILKIT)
Material of Construction
Black Steel Cabinet
Minimum Required Rack Depth (cm)
60.32
Minimum Required Rack Depth (inches)
23.75
Shipping Dimensions (hwd / cm)
34.29 x 57.15 x 59.69
Shipping Dimensions (hwd / in.)
13.50 x 22.50 x 23.50
Shipping Weight (kg)
77.11
Shipping Weight (lbs.)
170.00
Unit Dimensions (hwd / cm)
17.78 x 44 x 42.5
Unit Dimensions (hwd / in.)
7 x 17.3 x 16.75
Unit Weight (kg)
65.00
Unit Weight (lbs.)
143.3
