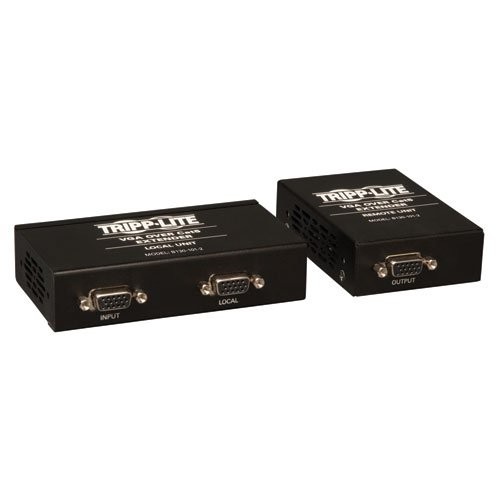

Tripp Lite VGA & Audio over Cat5/Cat6 Video Extender Kit Transmitter Receiver TAA GSA (B130-101A-2) Tripp Lite VGA & Audio over Cat5/Cat6 Video Extender Kit Transmitter Receiver TAA GSA (B130-101A-2)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: Local (Transmitter) Unit Remote (Receiver) Unit Mini-Screwdriver for EQ/Gain Adjustment 2 x Mounting Hardware Kits 2 x External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A) Owner's Manual
Certifications & Standards: TAA
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.
Allows you to extend a 1920 x 1440 (60Hz) video and audio signal up to 500 ft., or a 1024 x 768 (60Hz) video and audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable. The range and number of monitors/speakers can be further expanded by adding repeater units. Connect up to 3 repeaters, with the receiver at the end of the chain, for a total of 4 sets of monitors and speakers. A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver. For optimal image quality between 500 and 1,000 ft., use a Zero-Skew cable. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Cable Type: A/V Extender; Connector/Port/Interface: 3.5mm (Female); HD15 (Female); RJ45 (Female); For Device Type: Digital Signage; Jacket Color: Black.
Allows you to extend a video and audio signal up to 500ft or 1000ft when using a 24Awg Cat5e/6 cable.EDID copy feature ensures optimal display compatibility.The range and number of monitors/speakers can be further expanded.The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image.Ideal for digital signage situations, such as retail, schools, churches, etc.Local Transmitter; Remote Receiver; Mini Screwdriver; Mounting Hardware Kit; External Power Supply; Owner's ManualGlobal Product Type:Cables-VGA, SVGA & XGA Cables
Global Product Type:Cables-VGA, SVGA & XGA Cables Cable Type:A/V Extender
Cable Type:A/V Extender Connector/Port/Interface:3.5mm (Female)
Connector/Port/Interface:3.5mm (Female) Connector/Port/Interface:HD15 (Female)
Connector/Port/Interface:HD15 (Female) Connector/Port/Interface:RJ45 (Female)
Connector/Port/Interface:RJ45 (Female) For Device Type:Digital Signage
For Device Type:Digital Signage Jacket Color:Black
Jacket Color:Black OEM/Compatible:OEM
OEM/Compatible:OEM Package Includes:Local Transmitter
Package Includes:Local Transmitter Package Includes:Remote Receiver
Package Includes:Remote Receiver Package Includes:Mini Screwdriver
Package Includes:Mini Screwdriver Package Includes:Mounting Hardware Kit
Package Includes:Mounting Hardware Kit Package Includes:External Power Supply
Package Includes:External Power Supply Package Includes:Owner's Manual
Package Includes:Owner's Manual Compliance Standards:TAA Compliant
Compliance Standards:TAA Compliant Pre-Consumer Recycled Content Percent:0%
Pre-Consumer Recycled Content Percent:0% Post-Consumer Recycled Content Percent:0%
Post-Consumer Recycled Content Percent:0% Total Recycled Content Percent:0%
Total Recycled Content Percent:0% SpecificationPower DescriptionInput Voltage
Physical CharacteristicsForm Factor
- Wall ColorBlackColor FamilyBlackWarrantyLimited Warranty1 YearInterfaces/PortsNumber of VGA Inputs1VGA InYesNetwork (RJ-45)YesNumber of VGA Outputs2VGA OutYesNumber of Network (RJ-45) Ports2VideoMaximum Video Resolution1920 x 1440General InformationBrand NameTripp Lite seriesMarketing Information Tripp Lite's B130-101A-2 allows you to extend a 1920 x 1440 (60Hz) video and audio signal up to 500 ft., or a 1024 x 768 (60Hz) video and audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). The range and number of monitors/speakers can be further expanded by adding B132-110A repeater units. Connect up to 3 repeaters, with the B130-101A-2 receiver at the end of the chain, for a total of 4 sets of monitors and speakers. A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware for both local and remote units, allowing them to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc. More from the Manufacturer Product TypeVideo Extender Transmitter/ReceiverProduct NameVGA + Audio over Cat5 Extender Kit (Transmitter + Receiver)ManufacturerEaton CorporationManufacturer Part NumberB130-101A-2Product ModelB130-101A-2Media & PerformanceTwisted Pair Cable StandardCategory 6Media Type SupportedTwisted PairTitleProduct TitleEaton Tripp Lite Series VGA over Cat5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, Up to 1000 ft. [305 m], TAA (B130101A2)Technical InformationMaximum Operating Distance1000 ftNumber of Input Devices Supported1Connectivity TechnologyWiredNumber of Output Devices Supported2 Shipping
