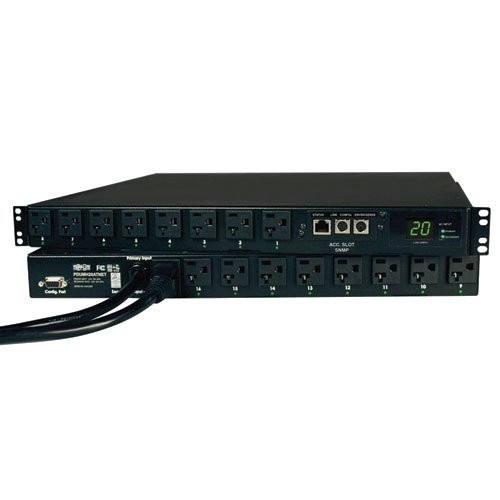

Tripp Lite PDU Switched ATS 120V 20A 5-15/20R 16 Outlet L5-20P Horizontal TAA (PDUMH20ATNET) Tripp Lite PDU Switched ATS 120V 20A 5-15/20R 16 Outlet L5-20P Horizontal TAA (PDUMH20ATNET)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: PDUMH20ATNET PDU Switched ATS 120V 20A 16 Outlet PDU with attached L5-20P input power cord Detachable C19 to NEMA L5-20P 12 ft/3.6m power cord for optional secondary input Two NEMA L5-20R to NEMA 5-20P plug adapters User manual with warranty information
Certifications & Standards: 60950 Class A TAA Compliant
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.
Tripp Lites 120V 20A metered PDU system with Automatic Transfer Switching (ATS) is a 16 outlet PDU with a digital display to indicate total PDU power consumption in amps. Outlets are sequentially turned-on at 250 millisecond intervals when the PDU is first energized from an unpowered state to prevent inrush-related equipment interaction on startup. Installed web/network monitoring card enables remote power monitoring and control. Remotely displays status of input power, load capacity, and outlet power status via secure network or web browswer interface. Offers individual outlet control to power on, off, or cycle AC output to regain control of locked-up servers and other network devices. Load ramping and shedding provides automatic power management. Supports notification and logging of input power status, event notification, output power and load conditions. Supports 1U rackmount installation in a 2 or 4 post racks. Included are 16 NEMA 5-15/20R outlets, and optional-use dual cords for auto- transfer switching (ATS) options. Each input plug supports 5-20P and L5-20P input.SYSTEM OVERVIEW System overview -- Multi-outlet PDU with Current Monitoring and Sequential Power-on, Configurable to operate from either one or two 120v input power sources. Remote Monitoring with Outlet Control.Voltage compatibility -- 120VFrequency compatibility -- 50/60 HzOUTPUT Output volt amp capacity (VA) -- 20A / 2400VAOutput nominal voltage -- 120VOutlet quantity / type -- 16 NEMA 5-15/20RCustomized load management receptacles -- 16 individually controlled load management receptaclesINPUT Maximum input amps -- 20AInput connection type -- 2 NEMA L5-20P with 2 NEMA 5-20P plug adaptersInput cord length -- Both input cables are 12 ft / 3.6m - the cables each terminate to a L5-20P locking plug on the input side. Two included 6 inch plug adapters convert the locking plugs to NEMA 5-20P plugsRecommended electrical service -- 120V 20A, dedicated line recommendedLEDS ALARMS & SWITCHES Front panel LEDs -- 16 front panel LEDs display power on - off status for each outlet, plus 2 LEDs for power status on each input line cord. Digital current meter display shows the amount of power consumption in amps for entire output of PDU.PHYSICAL Shipping weight -- 16.4 lbs / 7.4 kgUnit weight -- 12.2 lbs / 5.5 kg SpecificationPower DescriptionPower Rating (VA)2400 VAInput Voltage120 V ACOutput Voltage120 V ACPhysical CharacteristicsWeight (Approximate)12.20 lbProduct ColorBlackMount TypeRack-mountableNumber of Cord/Cable2Height1.8"Color FamilyBlackWidth1.8"Rack Height1UDepth14.5"WarrantyLimited Warranty2 YearGeneral InformationBrand NameTripp Lite seriesMarketing InformationTripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, BOOTP and NTP. Switched PDU features include individually controllable output receptacles and built-in network interface. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability. More from the Manufacturer Product TypePDUProduct NamePDUMH20ATNET PDU Switched ATS 120V 20A 16 OutletManufacturerEaton CorporationManufacturer Part NumberPDUMH20ATNETProduct ModelPDUMH20ATNETTitleProduct TitleTripp Lite by Eaton PDU 1.9kW Single-Phase Switched Automatic Transfer Switch PDU 2 120V L5-20P / 5-20P Inputs 16 5-15/20R Outputs 1U TAA (PDUMH20ATNET)Technical InformationPlug/Connector Detail2 x NEMA L5-20PReceptacle TypeNEMA 5-15/20RReceptacle Detail16 x NEMA 5-15/20RPlug/Connector TypeNEMA L5-20PPDU TypeSwitchedManagementManagement Integrated Automatic Transfer Switch (ATS) allows PDU to operate from secondary input source when primary input fails Sequential outlet power-on prevents inrush-related equipment interaction on startup Programmable or real-time monitoring and outlet power control via secure web/network interface Shipping
