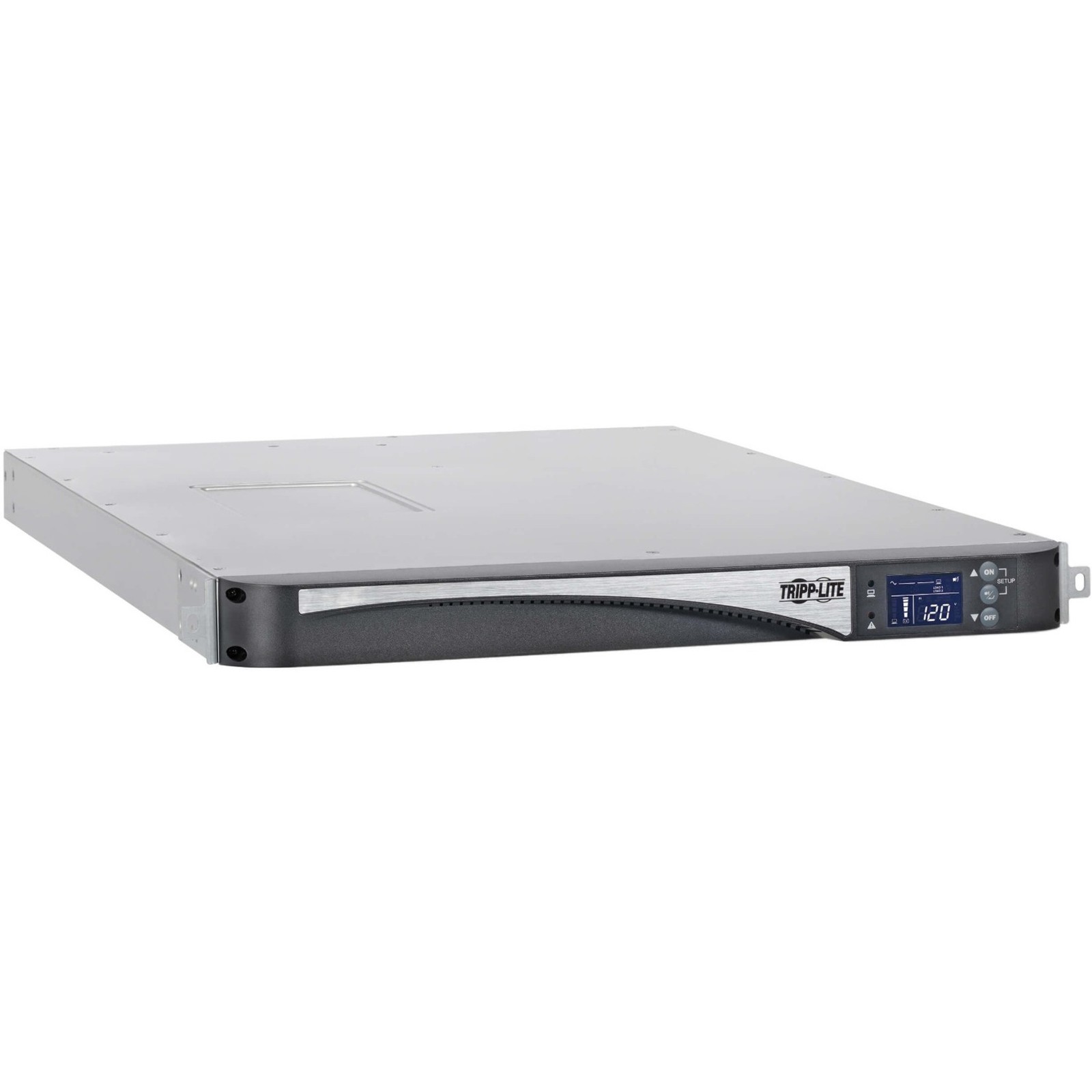

Tripp Lite SmartOnline SU2000LCD1U 2000VA Rack-mountable UPS Tripp Lite SmartOnline SU2000LCD1U 2000VA Rack-mountable UPS
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: SmartOnline SU2000LCD1U 2000VA Rack-mountable UPS USB Cable RS-232 Cable Rack-Mounting Hardware Owner's Manual
Environmentally Friendly: Yes
Energy Star: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
Tripp Lite Double-Conversion Smart Online UPS, 120V 2000VA 1600W, 5 NEMA 5-15R Outlets, Network Card Slot, LCD Status Screen, Expandable Battery, USB, DB9, 1U Rack Mount, 2-Year Warranty (SU2000LCD1U)
- DOUBLE-CONVERSION: Maintains perfect output with fully regulated sine wave AC with +/-3% voltage regulation in on-line and battery modes. Featuring 1600W capacity, 540 joules of surge suppression, true on-line operation with pure sine wave output.
- NETWORK CARD SLOT: Optional HTML5-based WEBCARDLX slot (sold separately) enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH.
- ENERGY STAR-CERTIFIED: Strict EPA efficiency guidelines saves money and energy. A power-saving Economy mode setting option offers enhanced efficiency and reduced BTU output when utility power is already high quality.
- FRONT-PANEL INTERFACE: Eight selectable screens of UPS data (including load, voltage and battery data) and multiple screens of configuration and setup options. LEDs indicate AC output availability and fault status.
- RELIABLE PRODUCT FULLY BACKED AND SUPPORTED: This product is covered by a 2-Year Manufacturer's Limited Warranty and is supported by Tripp Lite's Chicago-based expert technical support team over phone and email.
- Package Dimensions: 32.68 x 22.83 x 6.1 inches
- Item Weight: 52.9 pounds
DOUBLE-CONVERSION UPS PROTECTS EQUIPMENT AGAINST DAMAGE, DOWNTIME AND DATA LOSS: This 100/120/127V 50/60 Hz on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with +/-3% voltage regulation in on-line and battery modes. Featuring 1600W capacity, 540 joules of surge suppression, true on-line operation with pure sine wave output and zero transfer time between on-line and battery modes, the SmartOnline SU2000LCD1U provides the highest level of AC power protection and battery backup for network equipment in your small- to medium-size data center or computer room. INDIVIDUALLY CONTROLLABLE LOAD BANKS LET YOU ACCESS AND CONTROL OUTLETS REMOTELY: Five NEMA 5-20R outlets are split into two switchable load banks, allowing you to reboot select components or shed loads remotely. This UPS is recommended for any application supported by in-rack IT equipment, including servers, switches, phone systems, kiosks and high-end engineering and A/V computer systems. RELIABLE, EXPANDABLE BATTERY BACKUP KEEPS YOU OPERATIONAL THROUGH POWER OUTAGES: The field-replaceable, hot-swappable internal battery provides 10 minutes of support at half load (800W) and three minutes at full load (1600W), keeping protected equipment operational through power failures. The intelligent battery management system with temperature-compensated charging extends battery life. ENERGY STAR-CERTIFIED ECONOMY MODE HELPS YOU SAVE MONEY AND PROTECT THE ENVIRONMENT: By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. A power-saving Economy mode setting option offers enhanced efficiency and reduced BTU output when utility power is already high quality. SET OUTPUT FREQUENCY TO MATCH THAT OF YOUR CONNECTED EQUIPMENT: Using the UPS in Frequency Conversion mode will correct or convert the incoming frequency of 50 Hz to output 60 Hz (and vice versa). INTUITIVE FRONT-PANEL INTERFACE FOR CONVENIENT UPS OPERATION AND MONITORING: The front-panel LCD features eight selectable screens of UPS data (including load, voltage and battery data) and multiple screens of configuration and setup options. LEDs indicate AC output availability and fault status. On-screen operational diagram offers an easy-to-grasp visual representation of on-line, battery and ECO/Bypass modes. ADVANCED COMMUNICATIONS PORTS ALLOW FOR AUTOMATIC SHUTDOWNS: RS-232 and HID-compliant USB ports connect to a computer running Tripp Lite's free downloadable PowerAlert software to enable safe unattended system shutdown in case of a prolonged power failure. Wireable ports enable EPO (Emergency Power Off) and ROO (Remote Off/On) operation for UPS emergency and daily operation preferences. RS-232 and USB cables are included. OPTIONAL WEBCARDLX NETWORK INTERFACE OFFERS 24/7 REMOTE ACCESS: The SU2000LCD1U includes a slot for an optional HTML5-based WEBCARDLX (sold separately) that enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime. AUTO PROBE ALLOWS AUTONOMOUS UPS MANAGEMENT: WEBCARDLX allows use of Tripp Lite's IP-based Auto Probe feature, which ensures continuous network uptime by communicating with other network devices. If communication is lost, Auto Probe autonomously performs one or more user-configurable actions, including email notifications, which help you return the network devices to an operational state. REQUIRES ONLY ONE RACK SPACE IN A 4-POST RACK: Hardware is included for mounting the SU2000LCD1U in just 1U of space in an EIA-standard 19-inch 4-post rack enclosure or open frame rack to allow for more variety and spacing of equipment. The six-foot (1.8-meter) power cord with NEMA 5-20P plug connects to a compatible AC outlet.
Package Contents:
- SmartOnline SU2000LCD1U 2000VA Rack-mountable UPS
- USB Cable
- RS-232 Cable
- Rack-Mounting Hardware
- Owner's Manual
SpecificationPower DescriptionLoad Capacity (Watt)1600 WSurge Energy Rating540 JInput Voltage120 V ACOutput Voltage
Load Capacity (VA)2000 VAWaveform TypePure Sine WaveOutput Frequency60 HzPhysical CharacteristicsForm FactorRack-mountableWeight (Approximate)48.50 Height1UWarrantyLimited Warranty2 YearControls/IndicatorsStatus Indicators LED Indicators: AC Output status (green) Shutdown / Fault condition (red) Interfaces/PortsEPO PortYesUSB (HID Compliant) PortYesBattery InformationBackup/Run Time (Full Load)3 MinuteDC System Voltage48 V DCReplaceable BatteryYesBattery ChemistryLead AcidHot SwappableYesBackup/Run Time (Half Load)10 MinuteTypical Battery Recharge Time8 HourGeneral InformationBrand NameTripp Lite seriesMarketing Information Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss This 100/120/127V 50/60 Hz on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with +/-3% voltage regulation in on-line and battery modes. Featuring 1600W capacity, 540 joules of surge suppression, true on-line operation with pure sine wave output and zero transfer time between on-line and battery modes, the SmartOnline® SU2000LCD1U provides the highest level of AC power protection and battery backup for network equipment in your small- to medium-size data center or computer room. Individually Controllable Load Banks Let You Access and Control Outlets Remotely Five NEMA 5-20R outlets are split into two switchable load banks, allowing you to reboot select components or shed loads remotely. This UPS is recommended for any application supported by in-rack IT equipment, including servers, switches, phone systems, kiosks and high-end engineering and A/V computer systems. Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable internal battery provides 10 minutes of support at half load (800W) and three minutes at full load (1600W), keeping protected equipment operational through power failures. The intelligent battery management system with temperature-compensated charging extends battery life. ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. A power-saving Economy mode setting option offers enhanced efficiency and reduced BTU output when utility power is already high quality. Set Output Frequency to Match That of Your Connected Equipment Using the UPS in Frequency Conversion mode will correct or convert the incoming frequency of 50 Hz to output 60 Hz (and vice versa). Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring The front-panel LCD features eight selectable screens of UPS data (including load, voltage and battery data) and multiple screens of configuration and setup options. LEDs indicate AC output availability and fault status. On-screen operational diagram offers an easy-to-grasp visual representation of on-line, battery and ECO/Bypass modes. Advanced Communications Ports Allow for Automatic Shutdowns RS-232 and HID-compliant USB ports connect to a computer running Tripp Lite's free downloadable PowerAlert® software to enable safe unattended system shutdown in case of a prolonged power failure. Wireable ports enable EPO (Emergency Power Off) and ROO (Remote Off/On) operation for UPS emergency and daily operation preferences. RS-232 and USB cables are included. More from the Manufacturer Product TypeDouble Conversion Online UPSProduct NameSmartOnline SU2000LCD1U 2000VA Rack-mountable UPSManufacturerEaton CorporationManufacturer Part NumberSU2000LCD1UProduct ModelSU2000LCD1UProduct LineSmartOnlineTitleProduct TitleTripp Lite by Eaton 120V 2000VA 1600W Double-Conversion Smart Online UPS - 5 Outlets, Card Slot, LCD, USB, DB9, 1U Rack (SU2000LCD1U)Technical InformationReceptacle TypeNEMA 5-15/20RReceptacle Detail5 x NEMA 5-15/20RPhaseSingle PhasePlug/Connector TypeNEMA 5-20PDataline ProtectionRS-232EMI/RFI Noise FilterYesApplication/Usage
- Network Closet
- Computer Room
- IT System
Transfer Time0 nsManagementNetwork ManagementSNMP/WebAlarm
- Power Failure
- Low Battery
- Overload
- UPS Fault
- UPS StartUp
Environmental ConditionsThermal Dissipation260.45 WSound Emission (A-Weighted)65 dB(A)Maximum Operating Temperature104°F (40°C)Storage Temperature5°F (-15°C) - 122°F (50°C)Maximum Operating Elevation9842.52 ft Shipping
