Manufacturer: Tripp Lite

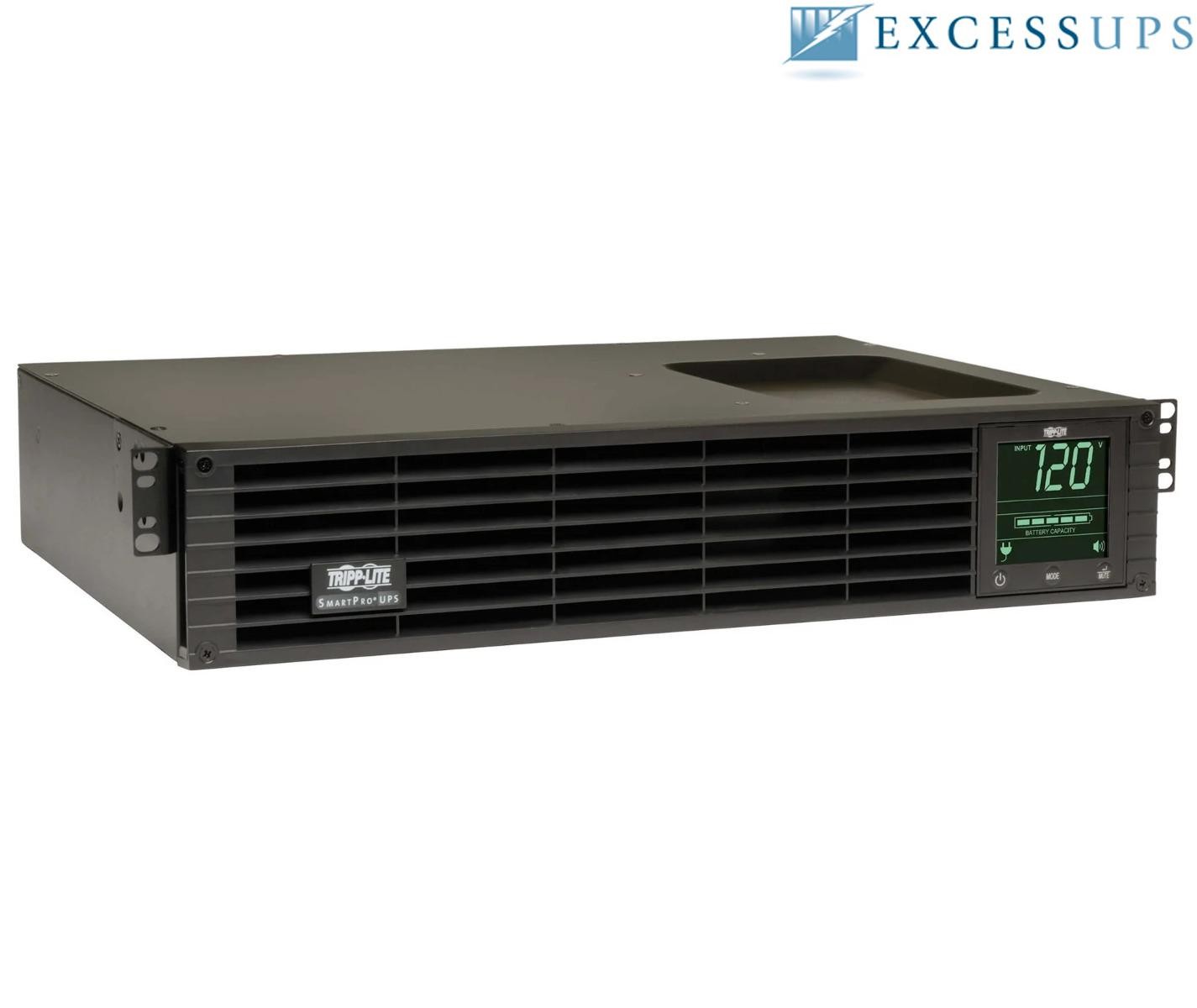

Model: Tripp Lite SmartPro UPS 1500VA 1350W, RM, 2U, 15A, 120V
Condition: New Batteries, refurbished UPS
Part Number: SMART1500RM2U
Maximum output: 1350W / 1500VA
Typical backup time at half load: 13 minutes (675 Watts)
Typical backup time at full load: 4.5 minutes (1350 Watts)
Included: SMART1500RM2U UPS, no other accessories included
Warranty: 1 year full replacement warranty
Tripp Lite SmartPro 1500VA 1350W RM 120V SMART1500RM2U - User Manual
SMART1500RM2U - Tripp Lite SmartPro 1500VA Specifications:
Input:
Rated input current (Maximum Load)
12A
Nominal Input Voltage(s) Supported
120V AC
UPS Input Connection Type
NEMA 5-15P
Input Circuit Breakers
15A
UPS Input Cord Length (ft.)
10
UPS Input Cord Length (m)
3.1
Recommended Electrical Service
15A 120V
Input Phase
Single-Phase
Output:
Output Volt Amp Capacity (VA)
1500
Output kVA Capacity (kVA)
1.5
Output Watt Capacity (Watts)
1350
Output kW Capacity (kW)
1.35
Power Factor
0.9
Nominal Voltage Details
120v nominal output in battery mode
Frequency Compatibility
60 Hz
Output Voltage Regulation (Line Mode)
-21%, +8%
Output Voltage Regulation (Battery Mode)
+/- 5%
Load Management Receptacles
Two switchable two-outlet 5-15R load banks
Output AC Waveform (AC Mode)
Sine wave
Output AC Waveform (Battery Mode)
Pure Sine wave
Nominal Output Voltage(s) Supported
110V; 115V; 120V
Output Receptacles
(8) NEMA 5-15R
Individually Controllable Load Banks
Yes
Battery:
Full Load Runtime (min.)
4.5 min. (1350w)
Half Load Runtime (min.)
13 min. (675w)
DC System Voltage (VDC)
36
Battery Recharge Rate (Included Batteries)
Less than 4.5 hours from 10% to 90% (typical, full load discharge)
Internal UPS Replacement Battery Cartridge
RBC93-2U
Battery Access
Front panel battery access door
Battery Replacement Description
Hot-swappable, user replaceable batteries
Expandable Runtime
No
Voltage Regulation:
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147
Overvoltage Correction
Input voltages between 128 and 147 are reduced by 12%
Undervoltage Correction
Input voltages between 83 and 107 are boosted by 14%
User Interface, Alerts & Controls:
Front Panel LCD Display
Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data,
plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for
detailed LCD configuration and monitoring options)
Switches
3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
Alarm Cancel Operation
Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
Audible Alarm
Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown
conditions
Surge / Noise Suppression:
UPS AC Suppression Joule Rating
570
UPS AC Suppression Response Time
Instantaneous
EMI / RFI AC Noise Suppression
Yes
Physical:
Cooling Method
Fan
Included Mounting Accessory Description
Rail kit not included. There are several options available, a 4 post and a 2 post rail kit, details below
Installation Form Factors Supported with Included Accessories
4 post 19 inch rackmount
Installation Form Factors Supported with Optional Accessories
Rail kit not included - Optional: 2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2- 9USTAND ); Wallmount ( 2POSTRMKITWM )
Minimum Required Rack Depth (cm)
41.91
Minimum Required Rack Depth (inches)
16.5
Primary Form Factor
Rackmount
Primary UPS Depth (mm)
342
Primary UPS Height (mm)
88
Primary UPS Width (mm)
439
Rack Height
2U
Shipping Dimensions (hwd / cm)
22.10 x 50.80 x 59.69
Shipping Dimensions (hwd / in.)
8.70 x 20.00 x 23.50
Shipping Weight (kg)
26.54
Shipping Weight (lbs.)
58.50
UPS Housing Material
Steel
UPS Power Module Dimensions (
8.76 x 43.94 x 34.16
UPS Power Module Dimensions (hwd, in.)
3.45 x 17.3 x 13.45
UPS Power Module Weight (kg)
21.09
UPS Power Module Weight (lbs.)
46.5
Environmental:
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity
0 to 95%, non-condensing
AC Mode BTU / Hr. (Full Load)
267
Battery Mode BTU / Hr. (Full Load)
1012
AC Mode Efficiency Rating (100% Load)
95%
Audible Noise
45 dBA maximum, front side 1m
Communications:
Network Management Cards
SNMPWEBCARD ; TLNETCARD ; WEBCARDLX ; RELAYIOCARD- Optional, Not Included
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions
PowerAlert Software
For local monitoring via the UPS’s built-in communication ports , download PowerAlert Local software at Cable
USB and DB9 cabling included
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Network UPS Tools Compatibility
NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at
Communications Interface
DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)
