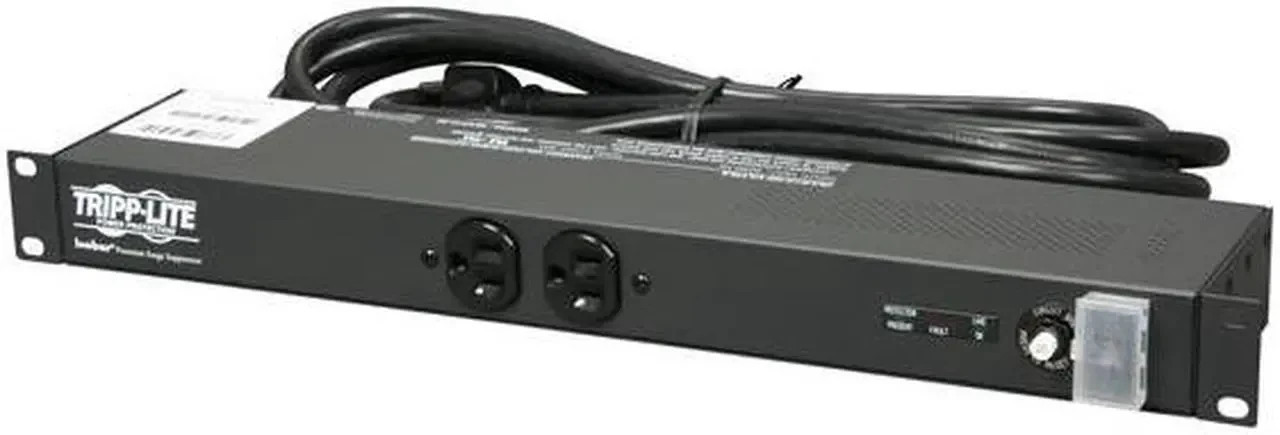

The Tripp Lite Isobar IBAR12/20ULTRA is a premium, 1U rack-mountable surge protector designed to provide network-grade surge protection and interference filtering for server racks, networking hardware, and telecom setups. Because it is a heavy-duty 20-amp capacity unit, it features a NEMA 5-20P plug, which requires a matching T-slot 20A wall receptacle and cannot be plugged into a standard 15-amp home outlet.
Key Specifications & FeaturesAccording to the technical datasheets available on CDW and Newegg, the device features the following core specifications:
- Outlet Configuration: 12 total AC outlets.
- Front Panel: 2 NEMA 5-15R outlets (standard 15A) for quick access.
- Rear Panel: 10 NEMA 5-20R outlets (20A) to support power-hungry server equipment.
- Surge Suppression: Rated at 3,840 Joules with a maximum surge current capacity of 60,000 Amps.
- Isolated Filter Banks: Outlets are partitioned into internal isolated blocks to eliminate EMI/RFI line noise and prevent cross-talk interference between connected equipment.
- Physical Profile: Built inside a durable, all-metal 1U rack-mount chassis (17.5 inches wide) with flexible, detachable flanges for wall-mounting or under-counter installation.
- Power & Safety: Heavy-duty 15-foot AC power cord, an integrated 20A circuit breaker, and a guarded power switch to avoid accidental shutdowns. It also includes diagnostic LEDs for verifying grounding and active protection statuses.
Questions: Please ask all questions before offerding as ALL SALES ARE FINAL. NO RETURNS.
Payment: I accept PayPal. Payment with PayPal is due within 3 days of sale close.
Packing: I take extra special care when packing. I too understand what it feels like to get something in the mail that was not packed well.
response: response will be left once response is received. Please ask any questions before offerding.
Many thanks for looking and good luck offerding! Please see my other sales.
