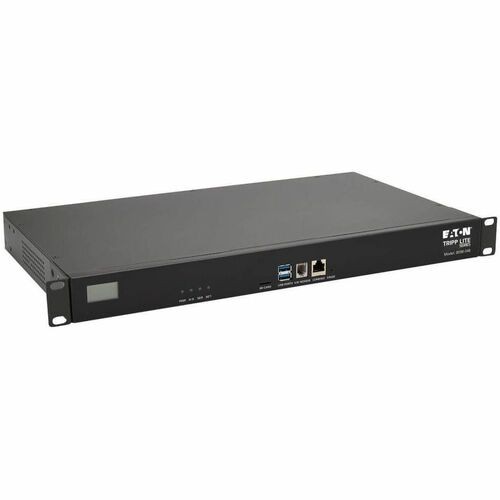

Tripp Lite by Eaton 48-Port Console Server USB Ports (2) - Dual GbE NIC 16 Gb Flash SD Card Desktop/1U Rack TAA - Twisted Pair - 2 x Network (RJ-45) - 2 x USB - 48 x Serial Port - 10/100/1000Base-T - Gigabit Ethernet - Desktop, Rack-mountable - TAA Compliant
Access All Your Serial and Network Devices from Anywhere in the World at Any Time This USB console server provides secure in-band (primary network) and out-of-band (alternate channel) remote access to serial- and network-connected routers, network switches, firewalls, PBX systems, UPS systems, PDUs and other devices. It offers reliable network connectivity with dual Gigabit primary and failover Ethernet ports, dual SFP ports for fiber optic network connections, and dual power supplies. You can use it in a wide variety of applications, including wiring closets, branch offices, kiosks, point-of-sale and other remote sites where a quick identification and resolution of network issues is imperative. You'll be able to manage a critical equipment outage quickly and remotely without making a costly and time-consuming physical visit to the site. Simple and Flexible Accessibility The 48 RJ45 console ports are configured to use standard Cat5e/6 patch cable when connecting to Cisco devices. They integrate with industry-standard directory servers using TACACS+, RADIUS, LDAP and Kerberos authentication. Provides 16 Gb of internal NAND flash memory, which can be used for log storage and file storage, and is expandable with an SD card. Connect the Built-In V.92 Modem for Out-of-Band (OOB) Access For OOB access, connect an RJ11 cable between the front-facing RJ11 port and a functioning landline port to allow the V.92 modem to dial out. Router/Gateway Each gateway can port forward to an unlimited number of locally networked hosts (computers, routers). This rack console also includes a built-in stateful firewall and embedded DHCP server to host a separate management LAN for critical traffic. The Utmost in Security to Keep Your Sensitive Data Private The B098-048 supports the following security features and standards: PCI DSS 3.2, FIPS 140-2, SSL and SSH, stateful firewall, OpenVPN and IPSec VPN support. The embedded FIPS 140-2 OpenSSL cryptographic module is validated to meet FIPS 140-2 standards and has received Certificate #2473. PowerMan PDU and UPS Support This USB console server uses PowerMan for PDU and RPC management and Network UPS Tools for UPS system monitoring and management. It provides support for Tripp Lite and other power products, so you can remotely manage power to your connected equipment. USB Console Two USB 3.0 console ports, supporting speeds up to 5Gbps, allow connection to newer devices with USB console ports, such as Tripp Lite's wide variety of PDUs and UPS systems with WEBCARDLX and LX Platform remote management cards. Compact Design for Convenient Mounting The heavy-duty steel housing comes with mounting brackets for 1U installation in an EIA-standard 19-inch rack. Its fanless form factor also allows desktop deployment on included rubber feet that help prevent the unit from sliding. TAA-Compliant for GSA Schedule Purchases The B098-048 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. More from the Manufacturer
ManufacturerEaton Corporation Manufacturer Part NumberB098-048 Brand NameTripp Lite series Product ModelB098-048 Product NameB098-048 48-Port Serial Console Server Product TypeDevice Server Technical Information Device TypeConsole Server Media & Performance Media Type SupportedTwisted Pair Network & Communication Ethernet TechnologyGigabit Ethernet Network Standard10/100/1000Base-T Interfaces/Ports Network (RJ-45)Yes Network (RJ-11)Yes USBYes Serial PortYes Number of Network (RJ-45) Ports2 Number of RJ-11 Ports1 Number of USB Ports2 Number of Serial Ports48 Power Description Input Voltage120 V AC,230 V AC Physical Characteristics Color FamilyBlack Product ColorBlack Form FactorDesktop,Rack-mountable Height17" Width10" Depth1.8" Weight (Approximate)10 lb Miscellaneous Package Contents B098-048 48-Port Serial Console Server 2 x C13 to NEMA 5-15P Power Cords, 6 ft. 2 x Cat5e Patch Cables, 6 ft. 2.4 GHz SMA Wi-Fi Diversity Antenna Straight-through Serial Adapter, DB9 to RJ45 (F/F) Crossover Serial Adapter, DB9 to RJ45 (F/F) Modular Serial Adapter, DB9 to RJ45 (M/F) Cisco rolled Straight-through Serial Adapter, DB9 to RJ45 (F/F) Cisco rolled Crossover Serial Adapter, DB9 to RJ45 (F/F) Cisco rolled Modular Serial Adapter, DB9 to RJ45 (M/F) Cisco Straight Pinout (x2) Loopback, Black Cisco Rollover Pinout (x1) Loopback, Red Rack-mounting Hardware Quick Start Guide Additional Information Side A - Connector 1: 2 x USB A (Female) Side A - Connector 2: RJ11 (Female) Side A - Connector 3: RJ45 (Female) Side A - Connector 4: SD (Female) Side B - Connector 1: 48 x RJ45 (Female) Side B - Connector 2: 2 x SFP (Female) Side B - Connector 3: 2 x RJ45 (Female) Environmentally FriendlyYes Environmental ComplianceRestriction of Hazardous Substances (RoHS) Country of OriginUnited States TAA CompliantYes Warranty Limited Warranty4 Year WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
