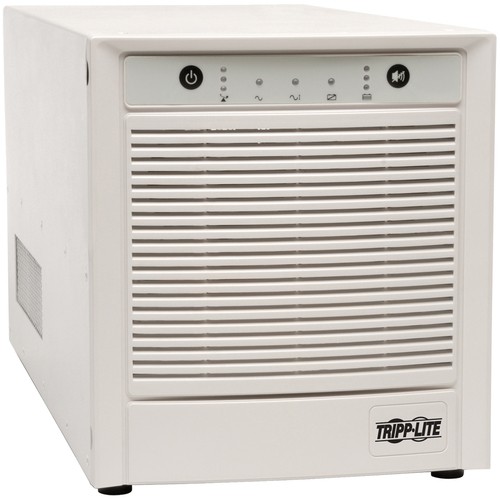

Tripp Lite by Eaton UPS SmartPro 120V 2.2kVA 1.92kW UL 60601-1 Medical-Grade Line-Interactive UPS Extended Run SNMPWEBCARD Option Full Isolation USB DB9 Serial - 2200 VA/1920 W - 120 V AC - 4.40 Minute - Tower - 4.40 Minute - 4 x IEC 60320 C13, 4 x NEMA 5-15/20R"
UL 60601-1 compliance is required for UPS systems within patient care areas. Get complete, compliant power protection with Tripp Lite's SMART2500XLHG SmartPro® Medical UPS System. The SMART2500XLHG provides a high load capacity 2200VA/1920W, full UL 60601-1 3rd edition compliance. Protects connected medical equipment against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. It features a USB port, input locking clamp, equipotential earth bonding lug, 4 NEMA 5-15/20R outlets, and 4 IEC C13 outlets for universally adaptable outlet options. The SMART2500XLHG offers a complete power protection solution for clinical labs, diagnostic imaging, ophthalmology, medical equipment, imaging and other devices requiring medical grade protection. With built-in Faraday shielding, the SMART2500XLHG provides full line isolation and reduces the cumulative leakage current of connected equipment to less than 100 µA for optimal safety in patient care areas. Full isolation also provides continuous noise filtering and enhanced common mode surge suppression. Featuring advanced line-interactive operation, it provides regulated 120V nominal output without using battery power during brownouts and overvoltages. Large internal batteries support connected equipment during blackouts and optional external battery packs (BP48V24-2U and BP48V60RT-3U) provide extended runtime tailored to your application. The SMART2500XLHG features a USB communication port that works with included PowerAlert software to provide UPS and site power monitoring plus automatic file saves and safe unattended shutdown of connected equipment in the event of a prolonged power failure. Application Usage This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMART2500XLHG in this type of application will void the battery warranty More from the Manufacturer
ManufacturerEaton Corporation Manufacturer Part NumberSMART2500XLHG Brand NameTripp Lite series Product LineSmartPro Product ModelSMART2500XLHG Product NameSMART 2500XLHG Medical Grade Tower UPS System Product TypeLine-interactive UPS Technical Information Plug/Connector TypeIEC 60320 C20 Receptacle TypeIEC 60320 C13,NEMA 5-15/20R Receptacle Detail4 x IEC 60320 C13,4 x NEMA 5-15/20R Transfer Time4 ms Power Description Load Capacity (VA)2200 VA Load Capacity (Watt)1920 W Input Voltage120 V AC Output Voltage120 V AC Interfaces/Ports Serial PortYes USBYes Battery Information Backup/Run Time (Full Load)4.40 Minute Backup/Run Time (Half Load)13 Minute Typical Battery Recharge Time4.50 Hour Hot SwappableYes Physical Characteristics Height9.3" Width8.9" Depth19.1" Form FactorTower Weight (Approximate)73.30 lb Miscellaneous Package Contents SMART 2500XLHG Medical Grade Tower UPS System Poweralert Software CD Warranty Information Instruction Manual USB Cable DB9 Cable Certifications & Standards UL1778 CSA FCC Part 15 UL60601-1 Software IncludedPowerAlert Software Country of OriginChina Environmentally FriendlyYes Environmental ComplianceRestriction of Hazardous Substances (RoHS) Warranty Limited Warranty2 Year WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
