Turing Pi 2.5 + Mini PCIE to Dual SATA Adapter + Power Supply + 24 Pin PSU
Item Description:Efficient, modular, cloud-native

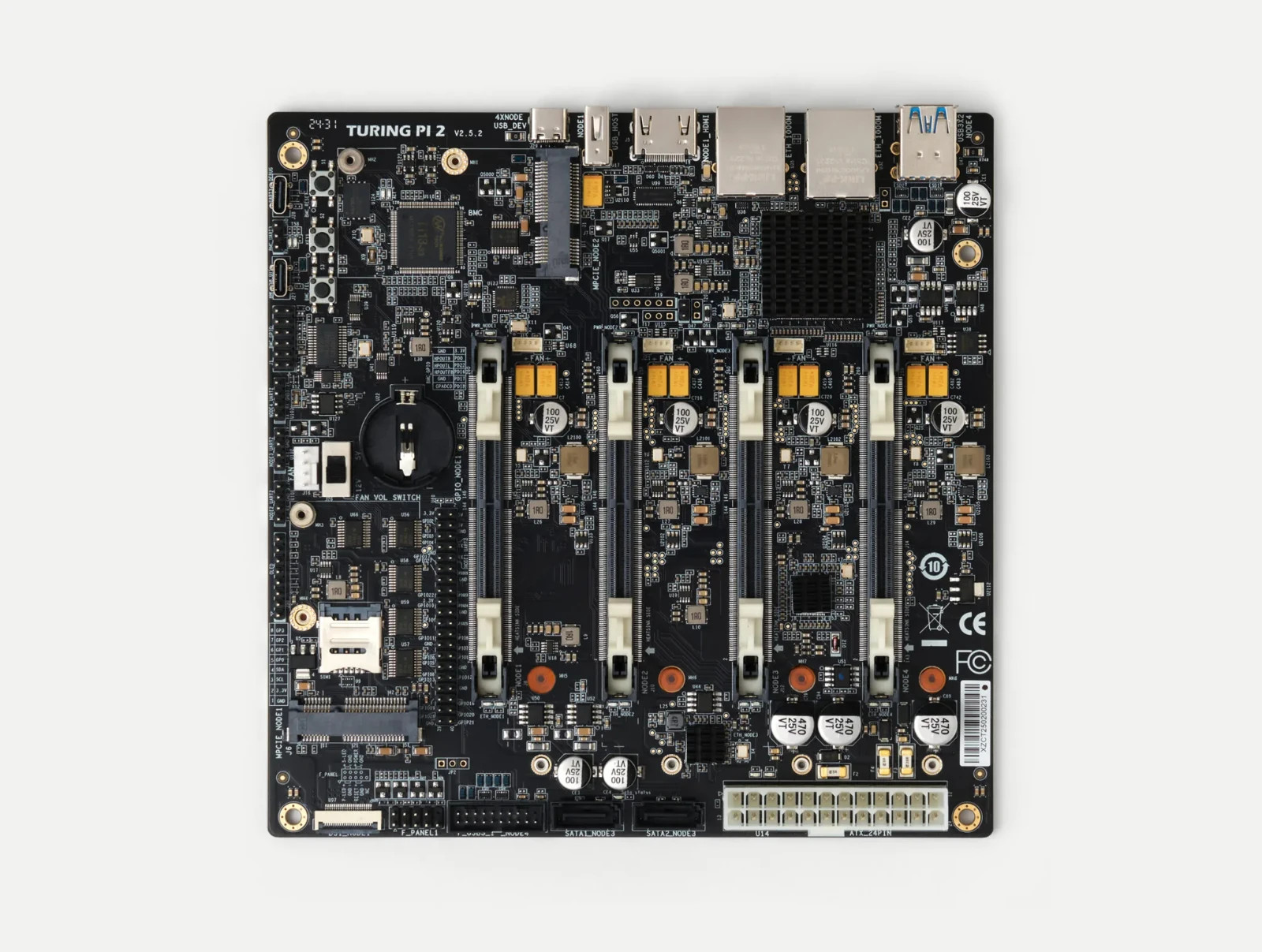

The Turing Pi 2.5 is a 4-node mini ITX cluster board with a built-in Ethernet switch that runs Turing RK1, Raspberry Pi CM4 or Nvidia Jetson compute modules in any combination. It’s like a data center server rack but compact, noiseless, and highly energy-efficient. It’s perfect for building your own Homelab, self-hosting, running the cloud-native stack (e.g. Kubernetes), and machine learning 24/7. The use cases are limited only by your needs and imagination.

Specs and layout1 GbE L2 Managed SwitchVLAN SupportBaseboard Management Controller2x SATA III Ports 6 Gbps2x 1 GbE ports4x M.2 ports, 2260, 2280, Key-M, NVMe support2x Mini PCI Express Slots1x HDMI1x DSI1x 40-pin GPIO, Raspberry Pi compatible4x USB 3.0, 1x USB 2.0SIM slotRTC battery slotPower supply 24-pin ATXEnergy efficient < 80 WMix multiple compute modulesWhat’s new in the Turing Pi 2.5

• Mini PCIe USB Interface for Nodes 1 and 2, supporting RK1 and Nvidia Jetson modules.
• Internal USB Hub for module storage access via MSD mode.
• USB-A Port on Node 1 for external connections.
• 4K HDMI output
• 4K HDMI Output on Node 1 to function as a desktop.
• I²C, GPIO, and Speaker Support via new 8-pin connectors.
• BMC Enhancements: Updated UART converter, 2x onboard storage, and FEL recovery button.
• MAC Address Allocation for each new Turing Pi 2.5 board.
• USB-C replaces USB-A for flashing/storage.

All flavors of compute modules

The Turing Pi 2.5 supports Turing RK1 and Raspberry Pi 4 compute modules for general compute and Nvidia Jetson compute modules for machine learning tasks. Please see the full list of all supported compute modules below.

General computeMachine LearningVENDORModelCPUCORESRAM Up ToTuringRK1Rockchip RK3588832Raspberry PiCM4Broadcom BCM271148
Mix and match all the supported compute modules
Any way you needTuring RK1 Compute Module8 cores, up to 32GB RAM, NPUBuy NowExtend with hardware modules

With 2 mini PCI-e ports, Turing Pi 2.5 allows connecting 3rd party extension boards. Modules can be used to add new hardware features, interfaces, sensors, interface converters, wireless modules, and even a cellular modem.

Wi FiBluetooth4g / 5G
