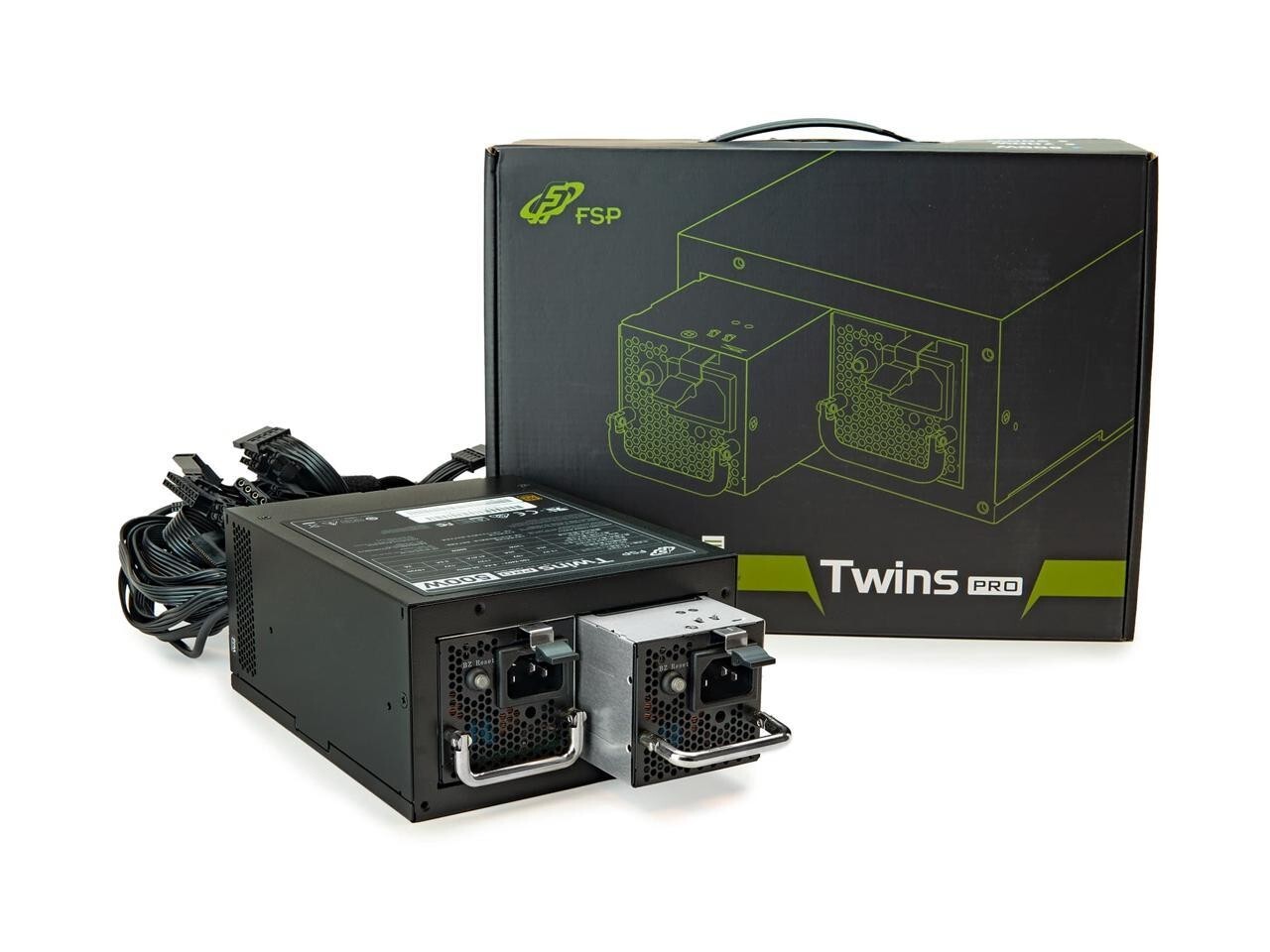

Redundant system design and built-in hot swappable modules
With redundancy in mind, the Twin Pro modular system design is more efficient and operates quieter by distributing the power load between two hot-swappable PSU modules. If one unit fails, the second unit takes control of the power load until a replacement is swapped in. Each unit can be hot-swapped and replaced without any system down-time offering a seamless and uninterrupted operation.
Black ribbon cable design
The round black ribbon cable design helps with heat emission effect and extends the life span of the components. The ribbon cable design also offers a cleaner aesthetic and allows for better cable management in custom build systems.
Power cord locking device
The Twins Pro series features a power cord locking device that secures the power cord from accidental disconnect helping to ensure stable operation without any system interruptions.
Proprietary user interface software that monitors status in real-time
The Twins PRO series can be connected to a USB header and synced with the FSP Guardian software to monitor power input, power output, efficiency, and other internal records in real-time. The FSP Guardian software can warn users when temperatures reach certain levels by alerting them immediately with warning messages that will update the user with all of the latest information in real-time.
Ideal for home, mail or web server systems
The Twins Pro series is an ATX PS2 size redundant power supply. The Twins Pro does not have front-end brackets, which makes it an ideal power solution for a home cloud server, mail server, or a small to medium-sized enterprise (SME) web server.
Cage:FSP500-50RABAC Input100-240Vac ∼ 8-4A 50-60HzDC Output+3.3V+5V+12V-12V+5VsbMax Output Current20.0A20.0A41.76A0.5A3.0AMax Combined Power130WTotal Power500WModular: FSP520-20RABAC Input100-240Vac ∼ 8-4A 50-60HzDC Output+12V—43.3A+5Vsb—3.0ATotal Output Power500WForm FactorPS2 ATX RedundantPS2 ATX RedundantGOLDInput Voltage100-240 VacInput Current8-4 AInput Frequency60-50 HzPFCActive PFCEfficiency90%90%Dual ball bearing fan, 40mmDimensions(L x W x H)190 x 150 x 86 mmProtectionOCP, OVP, SCP, OPP, OTP, FFP, UVP
