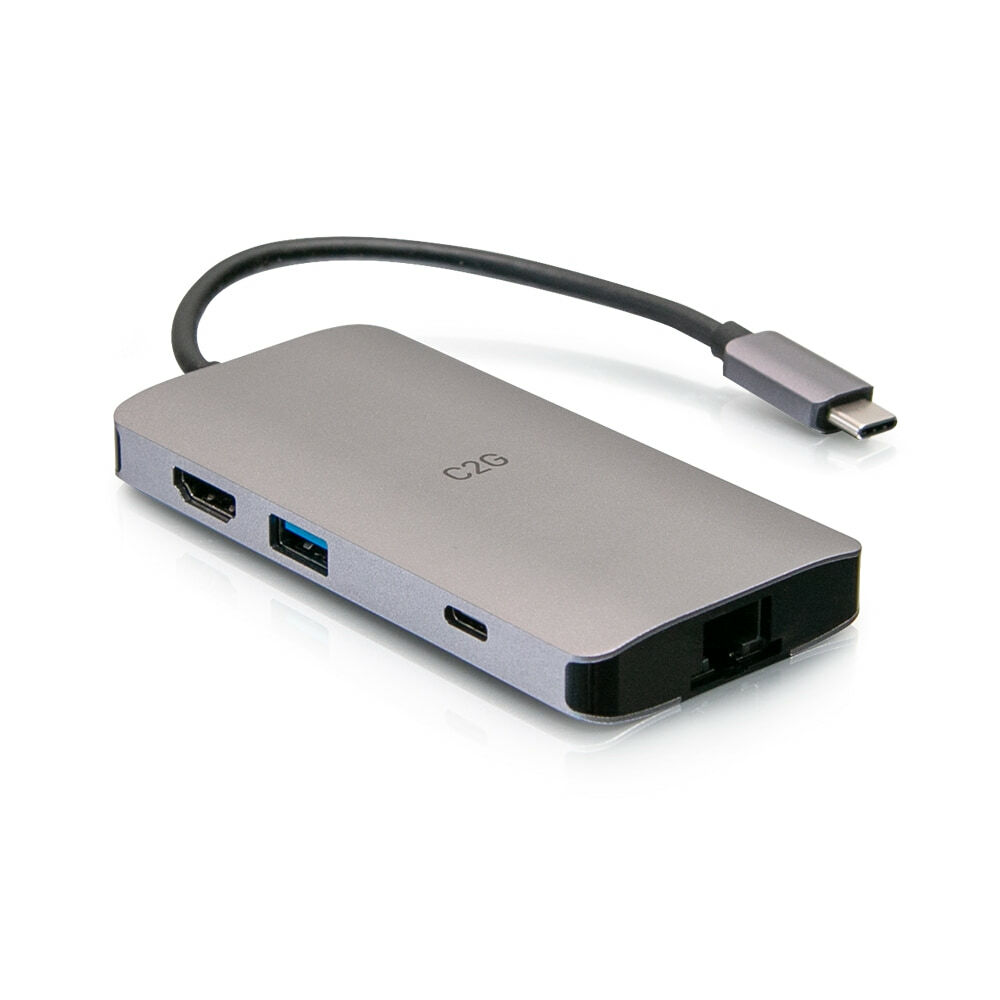

USB-C 8-in-1 Mini Dock with HDMI, 2x USB-A, Ethernet, SD Card Reader, and USB-C Power DeliverySingle Display Docking Station SeriesThis USB-C 8-in-1 Mini Dock with HDMI, USB-A, Ethernet and USB-C Power Delivery connects to USB-C or Thunderbolt™ 3 enabled laptops and is perfect for contributing to a desktop solution # making it ideal for inside reps that need essential connectivity while in the office or when working from home.This USB-C mini dock supports up to 100W of power delivery to charge and power mobile laptops when using the USB-C power adapter that is included with the laptop. The maximum power capacity depends on how much power the connected adapter can supply. The right amount of power is necessary to keep the laptop battery charged, for all connected devices to function, and for the dock to provide that connectivity.This mini dock includes an HDMI port with a resolution up to 4K (3840 x 2160) at 30Hz for high definition audio/video. The USB-A and USB-C data ports support SuperSpeed USB 5Gbps data transfers # allowing up to 32GB of data to be downloaded in under a minute. The Ethernet port allows for reliable internet connectivity with file transfer speeds up to 1000Mbps. Optimize performance by connecting displays designed for 4K 30Hz signals and USB devices designed for 5Gbps transfer speeds.
Connector 1: (1) USB-C MaleConnector 2: (1) HDMI Female, (1) RJ-45 Female, (3) USB 3.0 A Female, (1) SD Card Reader, (1) USB-C Male

4K HDMI: Connect to a 4K display via the HDMI port.

3x USB-A: Connect storage devices and transfer data up to 5Gbps through the USB-A ports.

Gigabit Ethernet: Connect to local network for network and internet access.

1x USB-C: Connect storage devices and transfer data up to 5Gbps through the USB-C port.

1x USB-C Data and PD: Transfer data up to 5Gbps from a storage device and power a laptop or tablet with up to 100W power delivery.

Features and Benefits

Supports up to 100W of power delivery to keep your laptop charged

• Supports HDMI resolutions up to 4K, for viewing your screen content at full HD

• USB-A and USB-C ports for fast data transferring

• SD Card Reader to transfer pictures, video, or other multimedia

• Hard wired Ethernet port for when security requires it or when WiFi™ is not available

• Reversible, symmetrical USB-C connector, so no guessing how to plug it into your laptop

• Plug-and-play, no additional software or drivers needed

• 5 year warranty, for peace of mind - with the highest quality docking stations

Specifications

Dimensions & Measurements

5 Amp

0.28 lbs (0.1 kg)

Characteristics & Features

Color

Gray

Connector 1

(1) USB-C Male

Connector 2

(1) HDMI Female(1) RJ-45 Female(1) SD Card Reader(1) USB-C Female(3) USB 3.0 A Female

Product Type

Active Device

Docking Station

Video Input Support

USB-C

Video Output Support

HDMI

Video Resolution

1080p

4K

4K @ 30Hz

Works With

Linux

MacOS

Windows

TAA Compliant

No

UPC

757120544586

Data Transfer Rate

5 GBPS

Additional Technical SpecificationsSignal SpecificationsHDMI: Resolution up to 4Kx2K @ 30Hz

USB-A 3.0 Female: Supports Data up to 5Gbps

• USB-C Female: Supports Data up to 5Gbps; Supports PD Charging with Power up to 100W (20V/5A)

• RJ45 Female: 10M/100M/1000M

• Secure Digital v3.0: dir="ltr" style="list-style-type: disc; font-size: 12pt; font-family: Arial, sans-serif; background-color: transparent; font-variant: normal; vertical-align: baseline; white-space: pre;" aria-level="1">

  Note: When connected to the USB-C charging port, it can charge the host computer and support power simultaneouslyElectrical Specifications

• Cable: USB 3.1 OD: 4.2MM ~ Black TPE No Print

• Rated Temperature: 80°C ; Voltage: 30V

• Conductor Resistance: At 20°C Max 34AWG: 860 OHMS/KM

• Insulation Resistance: 10M-KM MIN at 20°C DC 500V.(EIA-364-21)

• Dielectric Strength: AC 500V/1 Minute No Breakdown.(EIA-364-20)Physical Specifications

• Operating Temperature: 0° to +45°C; 15-85% RH (Non-Condensing)

• Storage Temperature: -10° to +70°C; 15-85% RH (Non-Condensing)Physical Characteristics

• Connector P1: USB 3.1 Type-C Male: Terminal Contacts Gold Plated 3U, Nickel Plated Shell; Black Insulation

• Connector P2-1: USB-C Female: 24 Pin Iron Shell, Nickel Plated, Black Core with PCB

• Connector P2-2: HDMI Female: 19 Pin A/F Iron Shell Nickel Plated, Gold Plated Terminal G/F with PCB

• Connector P2-3: RJ45 Female: Iron Shell - Nickel Plated, Black Core, Gold Plated Pin with PCB

• Connector P2-4: SD Card Seat: Nickel Plated, White Glue Core

• Connector P2-5: USB-A Female: Blue Adhesive (PA9T) Iron Case Nickel Plated ~ Pin Gold Plated with PCB

• Molding Material P1: Black TPE Conform RoHS

• Molding Material P2: Black TPE Conform RoHS

• Inspection: 100% Test for Short/Open

• Inspection: 100% Transmission rate test (300M/S); 100% Full Functional Tests to all Ports

• Product is CE marked and conforms to 2011/65/EU ROHS 2

Certifications & Warranties

Certifications

CE

NDAA 889

Prop 65

REACH

RoHS

TSCA

Warranty

5 Years
