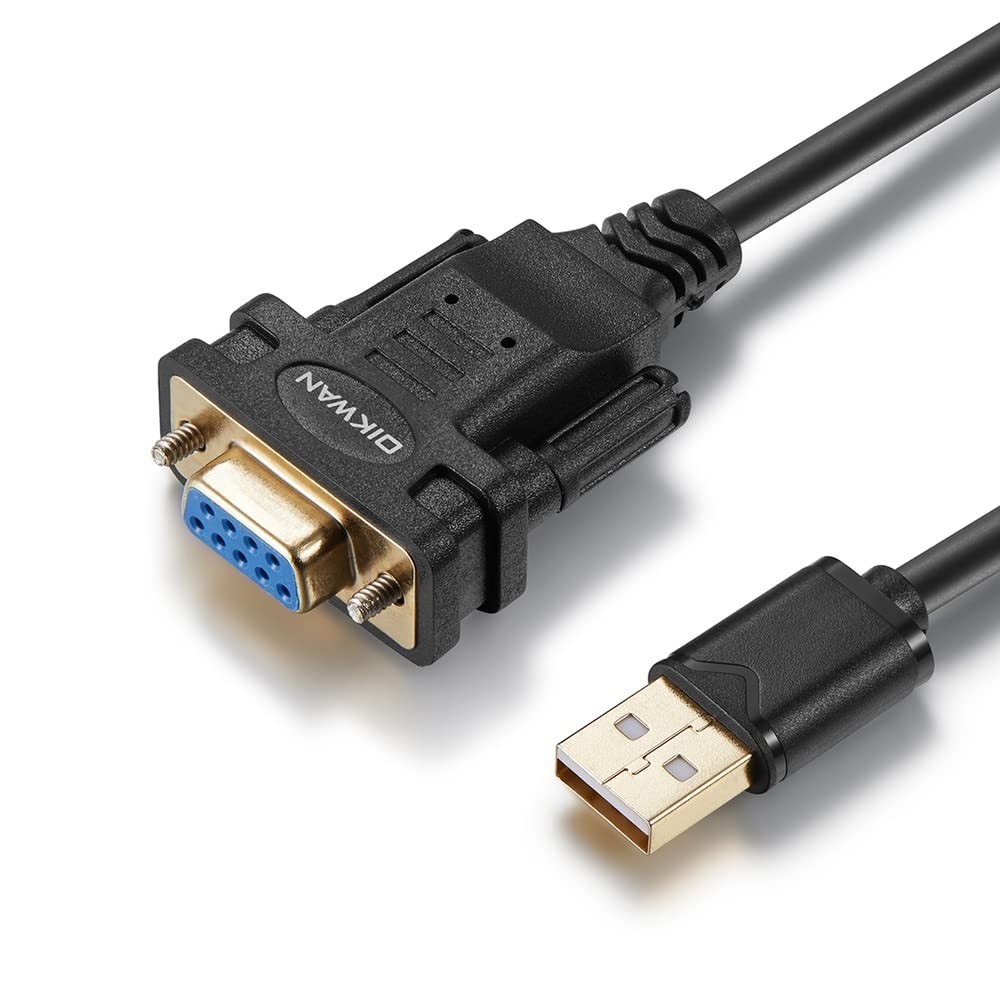

USB to RS232 Serial Adapter — FTDI Chipset DIKWAN · SERIAL INTERFACE HARDWARE DATASHEET REV. 06FT/FTDI USB 2.0 → RS232 Serial, revived
for a USB world.
A genuine FTDI-chipset adapter that brings a full female DB9 serial port to any USB-A host — for the routers, PLCs, POS terminals, and lab gear that still speak RS232.
FTDI FT232 genuine chipset 6 FT molded cable Gold-plated contacts Win · Mac · Linux 9-pinFemale DB9 / RS232 6ftCable length up to 1MbpsBaud rate support USB 2.0·AHost connector Why it works Built like the port it replaces 01 — CHIPSET Genuine FTDI silicon
Runs on the FT232 chip, not a clone — the driver auto-installs on Windows, macOS, and Linux and holds a stable COM port through sleep and reboot.
02 — CONTACTS Gold-plated connectors
Both the USB-A plug and DB9 pins carry a gold-plated finish for corrosion resistance and a cleaner, lower-noise electrical connection.
03 — HOUSING Reinforced port shell
A molded housing with thumbscrew studs on the DB9 end locks the cable to your equipment so it won't work loose in a rack or under a desk.
04 — REACH 6 ft of working room
Long enough to route from a laptop or tower to a wall-mounted router, modem, or control panel without an extension.
05 — COMPATIBILITY Full RS232 signaling
Supports the handshake lines legacy serial devices expect, not just TX/RX — so console and modem-style connections behave correctly.
06 — SETUP Plug and play
No external power, no configuration utility to run first. Connect it, let the driver install, and the port shows up ready to use.
Pin reference DB9 female pinout
Standard RS232 assignment, so the adapter drops into existing null-modem, console, and instrument cabling without rewiring.
1 DCD — Carrier Detect 6 DSR — Data Set Ready 2 RXD — Receive Data 7 RTS — Request to Send 3 TXD — Transmit Data 8 CTS — Clear to Send 4 DTR — Data Terminal Rdy 9 RI — Ring Indicator 5 GND — Signal Ground 1 2 3 4 5 6 7 8 9 DB9 · Female · Rear view Specification Full datasheet ChipsetGenuine FTDI FT232-series USB-to-serial IC Host connectorUSB 2.0 Type-A, gold-plated contacts Device connectorDB9 female (RS232), gold-plated pins, thumbscrew studs Cable length6 ft (1.8 m), molded strain-relief boots Baud rateUp to 1 Mbps SignalingFull RS232 handshake lines — TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI, GND OS supportWindows, macOS, Linux — auto-installing driver PowerBus-powered via USB, no external adapter required Where it fits Typical connections Cisco & networking console ports Industrial PLCs & CNC controllers POS terminals & barcode scanners Legacy modems & UPS units Lab & measurement instruments Point-of-sale cash drawers DIKWAN — USB to RS232 Serial Adapter FTDI Chipset · 6FT · DB9 Female
