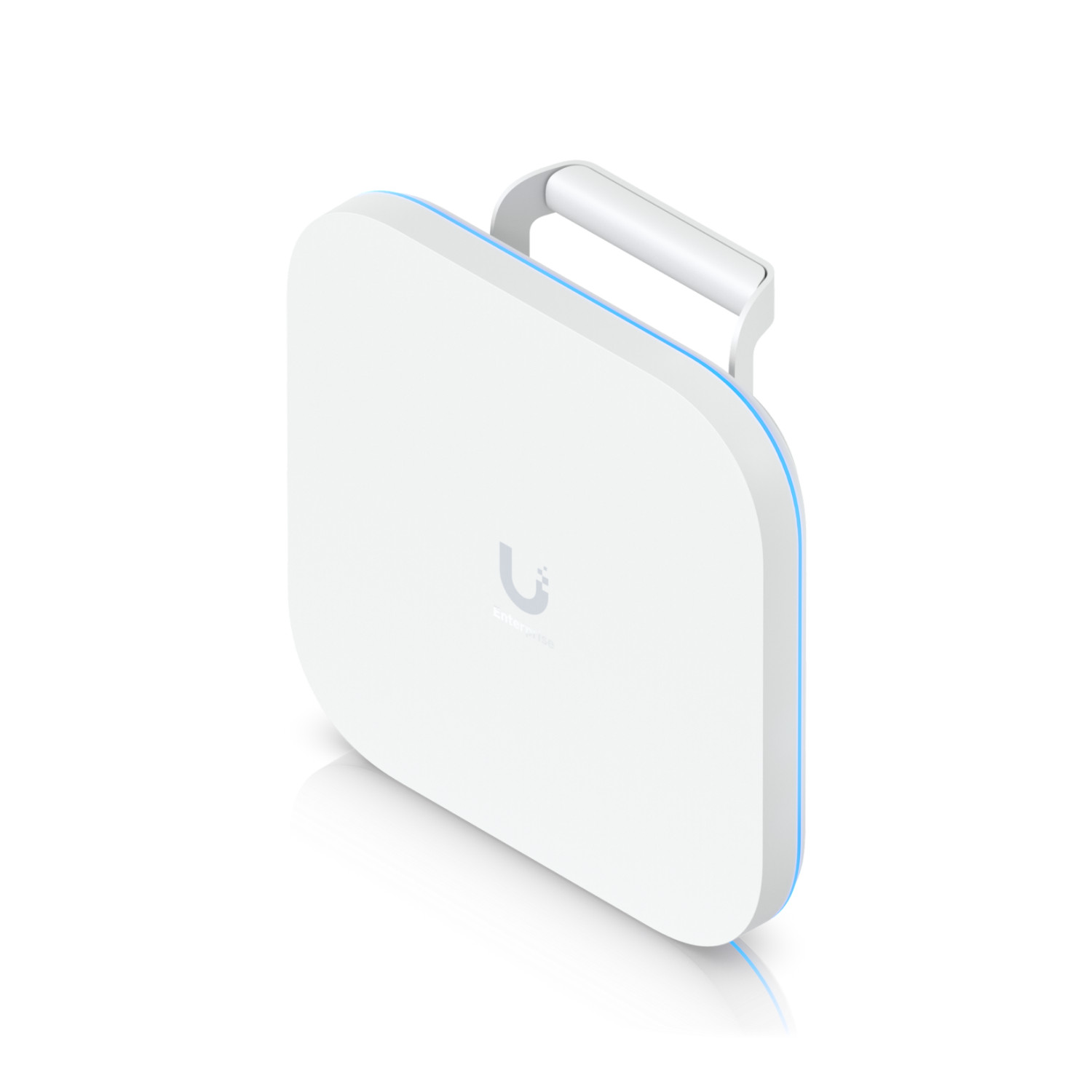

Access Point E7 Campus Model: E7-CAMPUS-US Product Description

Key Features

• WiFi 7 with 6 GHz support
• 10 spatial streams
• Real-time spectral analysis for enhanced channel selection
• High selectivity PRISM™ RF filtering technology
• Dedicated spectral analyzer radio
• Directional high gain antenna array
• Long-range 6 GHz performance with AFC*
• 465 m² (5,000 ft²) coverage
• 1,000+ connected devices
• (1) 10 GbE RJ45 port and (1) GbE RJ45 port for power & data redundancy

Technical Specifications Max. Client Count1000+Networking Interface(1) 10 GbE RJ45 port(1) GbE RJ45 portPower MethodPoE++Max. Power Consumption44WDimensionsDevice: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8")Articulating mount: Ø104 x 149.4 (Ø4.1 x 5.9")WeightDevice: 2.2 kg (4.9 lb)With articulating mount: 3.1 kg (6.8 lb)CertificationsFCC, IC2.4 GHz90° x 80°5 GHz100° x 55°6 GHz90° x 50°802.11ac (WiFi 5)6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)802.11ax (WiFi 6)7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)802.11be (WiFi 7)7.3 Mbps to 11.4 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)802.11k Radio Resource Management (RRM)True802.11n6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)802.11r Fast RoamingTrue802.11v BSS Transition ManagementTrueAdvanced Radio ManagementTrueAmbient Operating Humidity5 to 95% noncondensingAmbient Operating Temperature-30 to 60° C (-22 to 140° F)Antennas(1) Internal with directional patternsClient Device IsolationTrueCoverage Area465 m² (5,000 ft²)Custom Branding Landing PageTrueDynamic RADIUS-assigned VLANTrueEnclosure MaterialUV-stabilized polycarbonate, aluminum alloyExternal Portal Server SupportTrueGuest Network IsolationTrueManagementEthernetMax. BSSIDs8 per RadioMobile AppiOS™ version 10.20.0 and laterAndroid™ version 10.21.3 and laterMount MaterialStainless steel, aluminum alloyMountingWall, Pole (Mounts Included)VESA (Optional)Operating FrequencyUS/CA:2400 - 2472 MHzU-NII-1: 5150 - 5250 MHzU-NII-2A: 5250 - 5350 MHzU-NII-2C: 5470 - 5725 MHzU-NII-3: 5725 - 5850 MHzU-NII-5 and U-NII-7: 5925 - 6425 MHz, 6525 - 6875 MHzWorldwide:2400 - 2483.5 MHz5150 - 5725 MHz5925 - 7125 MHzPasspoint (Hotspot 2.0)TruePassword AuthenticationTruePayment-Based AuthenticationTrue 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
