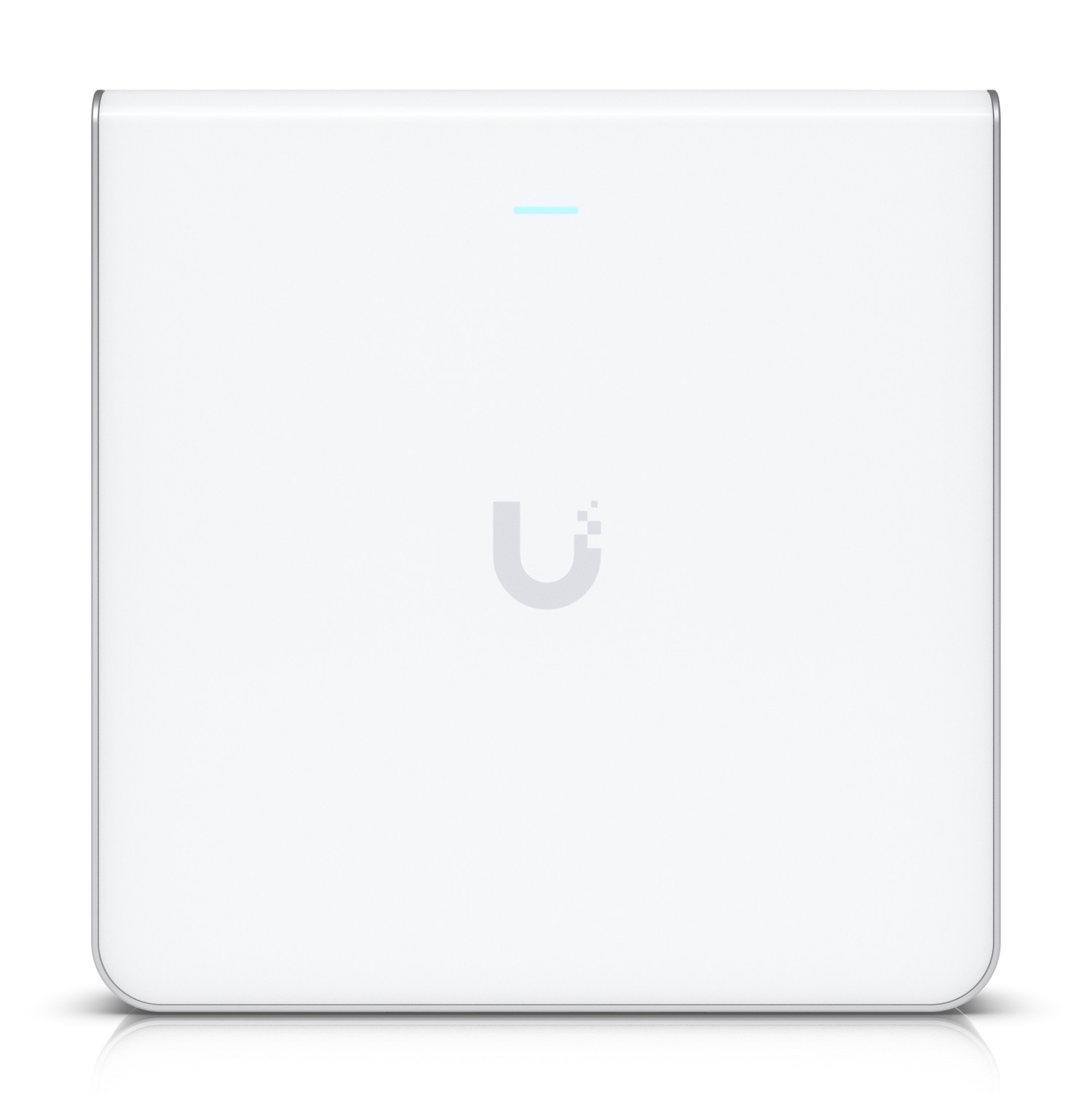

Access Point U6 Enterprise In-Wall Model: U6-ENTERPRISE-IW Product Description
Wall-mounted WiFi 6E AP with 10 spatial streams, 6 GHz support, and a built-in 4-port switch. Designed for high-density office networks.
Key Features
- WiFi 6E with 6 GHz support
- 10 spatial streams
- 115 m² (1,250 ft²) coverage
- 600+ connected devices
- Powered using PoE+/PoE++*
- (4) GbE ports with (1) PoE output
- 2.5 GbE uplink
Technical Specifications Max. Client Count600+Networking Interface(1) Data in: 1/2.5 GbE RJ45 port(4) Data out: GbE RJ45 portsPower MethodPoE+PoE++ (Required for PoE output)Max. Power Consumption21W (Excluding PoE output)Dimensions159.7 x 156.7 x 33.8 mm (6.3 x 6.2 x 1.3")Weight884 g (1.9 lb)CertificationsCE, FCC, IC, Anatel: 04643-24-08356802.11ac (WiFi 5)6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)802.11ax (WiFi 6/6E)7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)802.11k Radio Resource Management (RRM)True802.11n6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40)802.11r Fast RoamingTrue802.11v BSS Transition ManagementTrueAdvanced Radio ManagementTrueAmbient Operating Humidity5 to 95% noncondensingAmbient Operating Temperature-30 to 60° C (-22 to 140° F)Built-In Switch(4) GbE ports with (1) PoE outputChannel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)Client Device IsolationTrueCoverage Area115 m² (1,250 ft²)Custom Branding Landing PageTrueDynamic RADIUS-assigned VLANTrueEnclosure MaterialPolycarbonate, aluminumExternal Portal Server SupportTrueGuest Network BSSIDs8 per RadioMount MaterialAluminumMountingWall(Mount Included)Operating FrequencyUS/CA:2400 - 2472 MHzU-NII-1: 5150 - 5250 MHzU-NII-2A: 5250 - 5350 MHzU-NII-2C: 5470 - 5725 MHzU-NII-3: 5725 - 5850 MHzU-NII-5 to U-NII-8: 6100 - 7125 MHzWorldwide:2400 - 2483.5 MHz5150 - 5725 MHz5925 - 7125 MHzPasspoint (Hotspot 2.0)TruePassword AuthenticationTruePayment-Based AuthenticationTruePrivate Pre-Shared Key (PPSK)TrueRADIUS over TLS (RadSec)TrueRadio/Antenna6 GHz RadioSpatial Streams10 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
